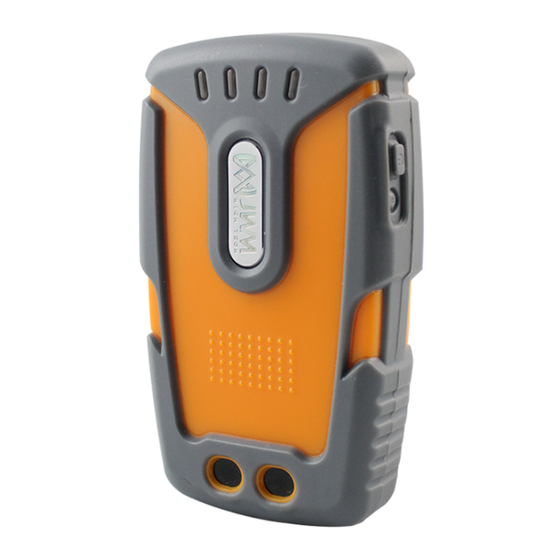

JWM WM-5000P5+ User Manual

JWM WM-5000P5+ User Manual

Guard tour management system
Hide thumbs Also See for WM-5000P5+:

Advertisement

Quick Links

GUARD TOUR MANAGEMENT SYSTEM
USER'S MANUAL
WM-5000P5+

Advertisement

loading
Need help?

Need help?

Do you have a question about the WM-5000P5+ and is the answer not in the manual?

Questions and answers

Summary of Contents for JWM WM-5000P5+

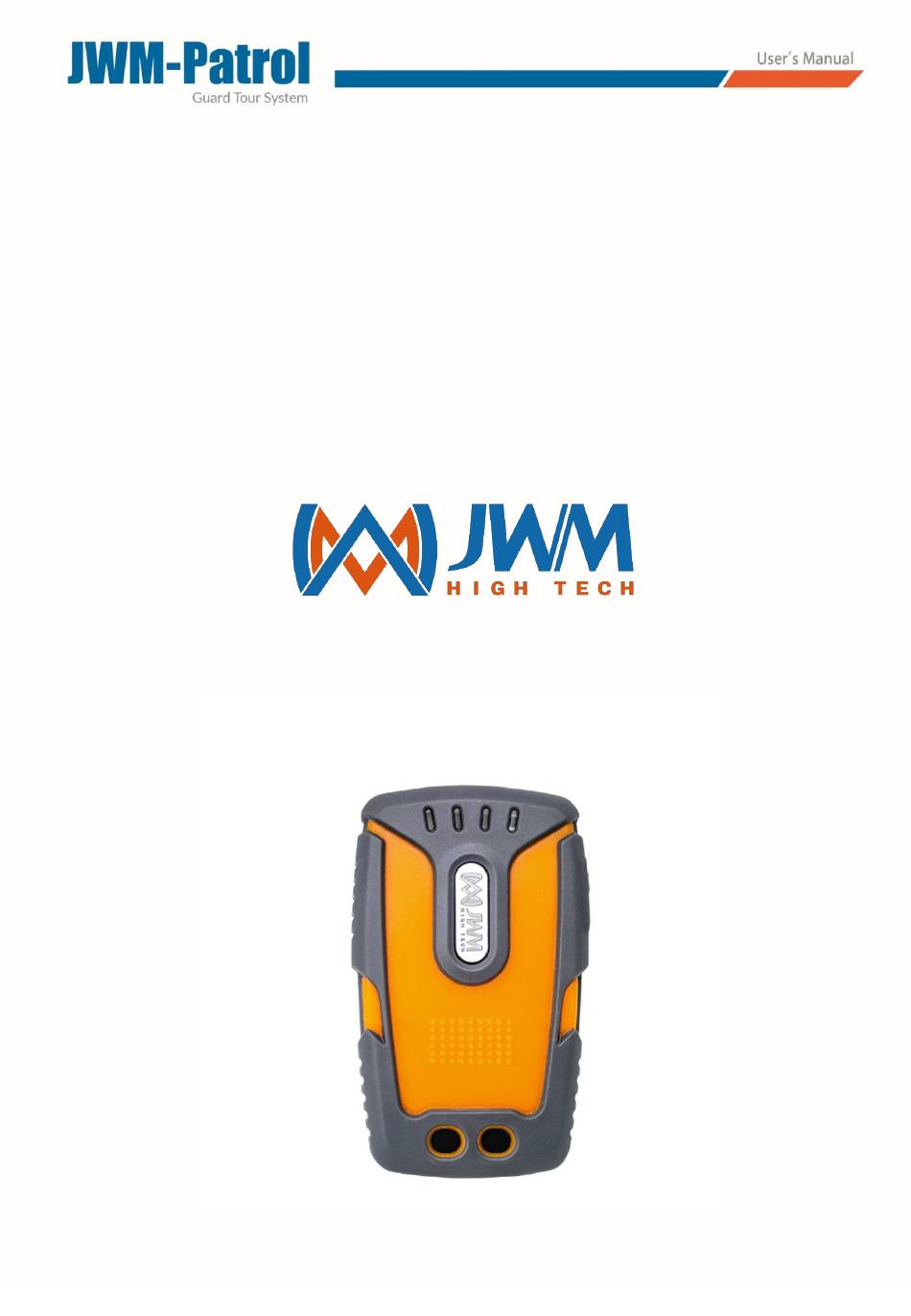

  • Page 1 GUARD TOUR MANAGEMENT SYSTEM USER’S MANUAL WM-5000P5+...
  • Page 2 WM-5000P5+ Guard Tour System User’s Manual 1. What is guard tour system? A guard tour system is a system used to help companies and organizations to organize, log and execute guard tours and patrols in their assets ensuring that the officers will accomplish their tasks within the predefined time intervals.
  • Page 3 2. Applications warehouse systems improving rent a car systems monitoring proper service supervising personnel work time and place monitoring scheduled technical maintenance supervising guards supervising service producers supervising drivers monitoring rent systems airport protection and supervising workers hotel protection and supervising workers protection for other public institutions 3.
  • Page 4 Working Prompts The blue light lights 1 second and 2 vibrations (Checkpoint Collect Mode) Power on The blue light lights 1 second and 1 vibration ( Patrol Mode) Power off The blue light lights 2 seconds and 2 vibrations Standby The blue light flashes 1 time within 3 seconds Low Power The blue light flashes 2 times within 3 seconds...
  • Page 5: Technical Information

    Wrong storage data 4 Vibrations Wrong clock data 3 Vibrations 4. Technical Information Model WM-5000P5+ Metal body with silicon shell outside Physical 102mm*62mm*26mm Dimensions 144g Weight RFID Tag reading 125KHz Frequency 125KHz card: 3-5cm Reading Distance -40℃ to +85℃ Operating Temperature 60,000 pieces records Storage Capacity 16Mb Flash ROM...
  • Page 6 RFID Tags 5. System Components 1) WM-5000P5+ reader 2) USB Cable 3) Standalone Software 4) Charger 5) Holster 6) Checkpoint tags(optional purchase) 7) Guard Tags (optional purchase) 8) Event wallet (optional purchase)
  • Page 7 6. User Flow 1) Make a sketch of the checking places that the guard needs to check. 2) Install tags on each checking place. *The round shape tag can be stuck or screwed on the wall. *For the cylinder glass tag, make a hole in the wall, and then put it inside and cover it.
  • Page 8 How to collect GPS position ? 1) Setting the read to checkpoint collect mode 2) The security guard take the WM-5000P5+ reader outside. 3) When he has arrived the GPS checking place where he wants to patrol, then he will press the left button 2 seconds to collect GPS position.
  • Page 9 7. Warranty Policy (1) All products are strictly tested and qualified before sale. (2) Hardware devices sold by our company are covered by 5 Year parts warranty. (3) During 5 Year warranty period, we will replace or repair units without charge, subject to any problem coming from product itself under ordinary usage condition.
  • Page 10 JWM Hi-Tech Development Co., Ltd TEL: 0086 24 83782790 Email: sales@jwm-rfid.com support@jwm-rfid.com Web: http://www.jwm-rfid.com...
