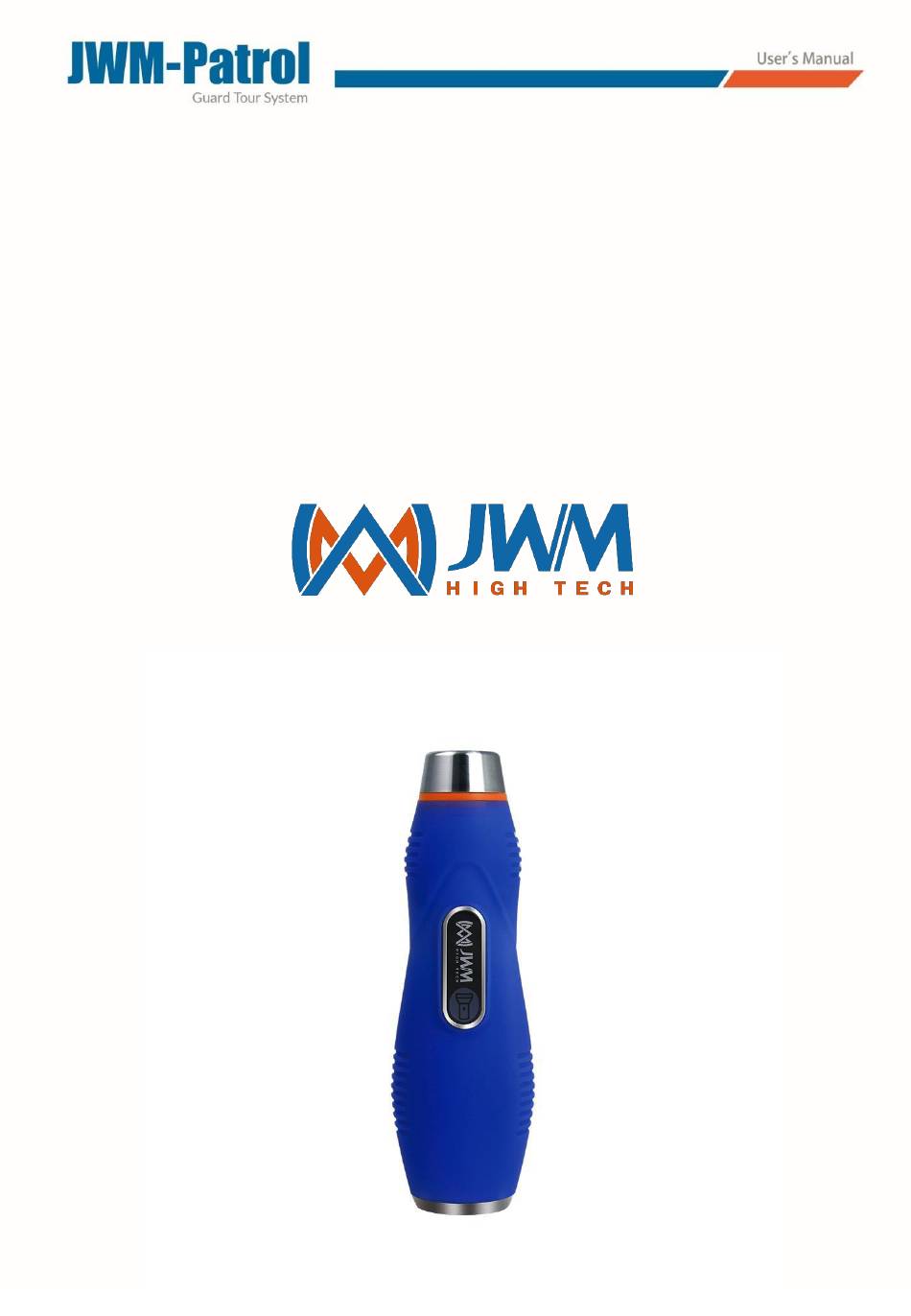

- Page 1 GUARD TOUR MANAGEMENT SYSTEM USER’S MANUAL WM-5000ES...
- Page 2 WM-5000ES Guard Tour System User’s Manual 1. What is guard tour system? A guard tour system is a system used to help companies and organizations to organize, log and execute guard tours and patrols in their assets ensuring that the officers will accomplish their tasks within the predefined time intervals.
- Page 3 2. Applications Warehouse systems improving rent a car systems monitoring proper service Supervising personnel work time and place monitoring scheduled technical maintenance supervising guards Supervising service producers supervising drivers monitoring rent systems Airport protection and supervising workers hotel protection and supervising workers protection for other public institutions 3.
- Page 4 Working Prompts Reading Successfully The blue light lights and one vibration Charging The red light is steady light Full of Power The green light is steady light Low Power The red light lights 2 times after reading or flashlight open / close Alarm clock (It is time to patrol) The reader long-timely 10 vibrations and flashlight lights 10 times...

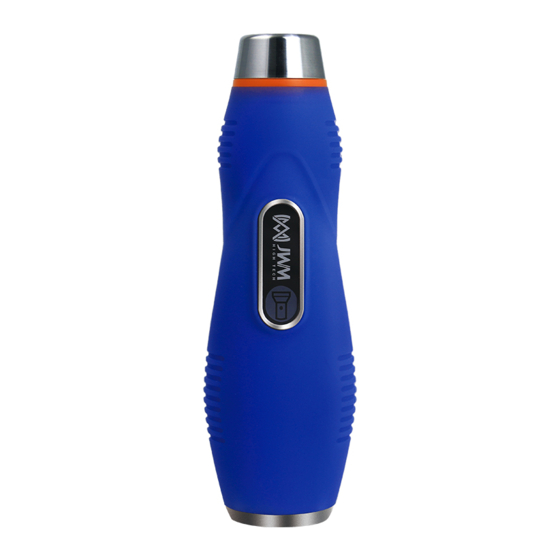

- Page 5 4. Technical Information Model WM-5000ES Metal body with silicon shell outside Physical 140mm*45mm*30mm Dimensions 196g Weight Touch Tag reading -40℃ to +85℃ Operating Temperature 60,000 pieces records Storage Capacity 32Mb Flash ROM Memory IP67 IP rating Press light button for 2 seconds Flashlight 3 hours Charging time...
- Page 6 Touch Tags 5. System Components 1) WM-5000ES reader 2) Standalone Software 3) Magnetic cable 4) Charger 5) Touch Checkpoint Buttons 6) Touch Guard Buttons(Optional) 7) Event Wallet (Optional) 6. User Flow 1) Make a sketch of the checking places that the guard needs to check.
- Page 7 3) Install software and make settings on software 4) The guard uses the reader to touch his guard button first and starts to patrol; he needs go to each checking place and uses the reader to touch checkpoint buttons which is installed on the wall. 5) The guard will take the reader back to the control center and use magnetic cable to upload data to software.
- Page 8 7. Warranty Policy (1) All products are strictly tested and qualified before sale. (2) Hardware devices sold by our company are covered by 2 year parts warranty. (3) During 2 Year warranty period, we will replace or repair units without charge, subject to any problem coming from product itself under ordinary usage condition.
- Page 9 Automation World 647 Shop No – 117, Salamati Hill, M. A. Road, Opposite Shiv Sena Sakha 166, Sion Koliwada, Mumbai – 400037 TEL: +9198671 65462/ +91 9833364950 Email:sales@guptagrills.com Web: www.guptagrills.com...
