Homelegance 1904-9 Assembly Instruction

Thanks you for purchasing this product. Please take time to read and follow the instructions below. Check that you have all parts and hardware before
assembly. Parts apparently missing are often found in the packing materials. If you do not have the parts listed, have your dealer call us and they will
be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing furniture on a wood
floor or other hard surface, and to limit indentation and prevent discoloration if placing on carpet.
Il est recommandé de placer des coussins protecteurs sous tous les pieds et toutes les bases des meubles pour éviter d'endommager ou
d'égratigner les planchers en bois ou autres surfaces dures, et pour limiter l'empreinte et empêcher la décoloration quand les meubles
reposent sur la moquette.
Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-tighten if necessary.
Le matériel peut se desserrer au fil du temps. Vérifiez périodiquement que toutes les connexions sont serrées. Serrer à nouveau
si nécessaire.

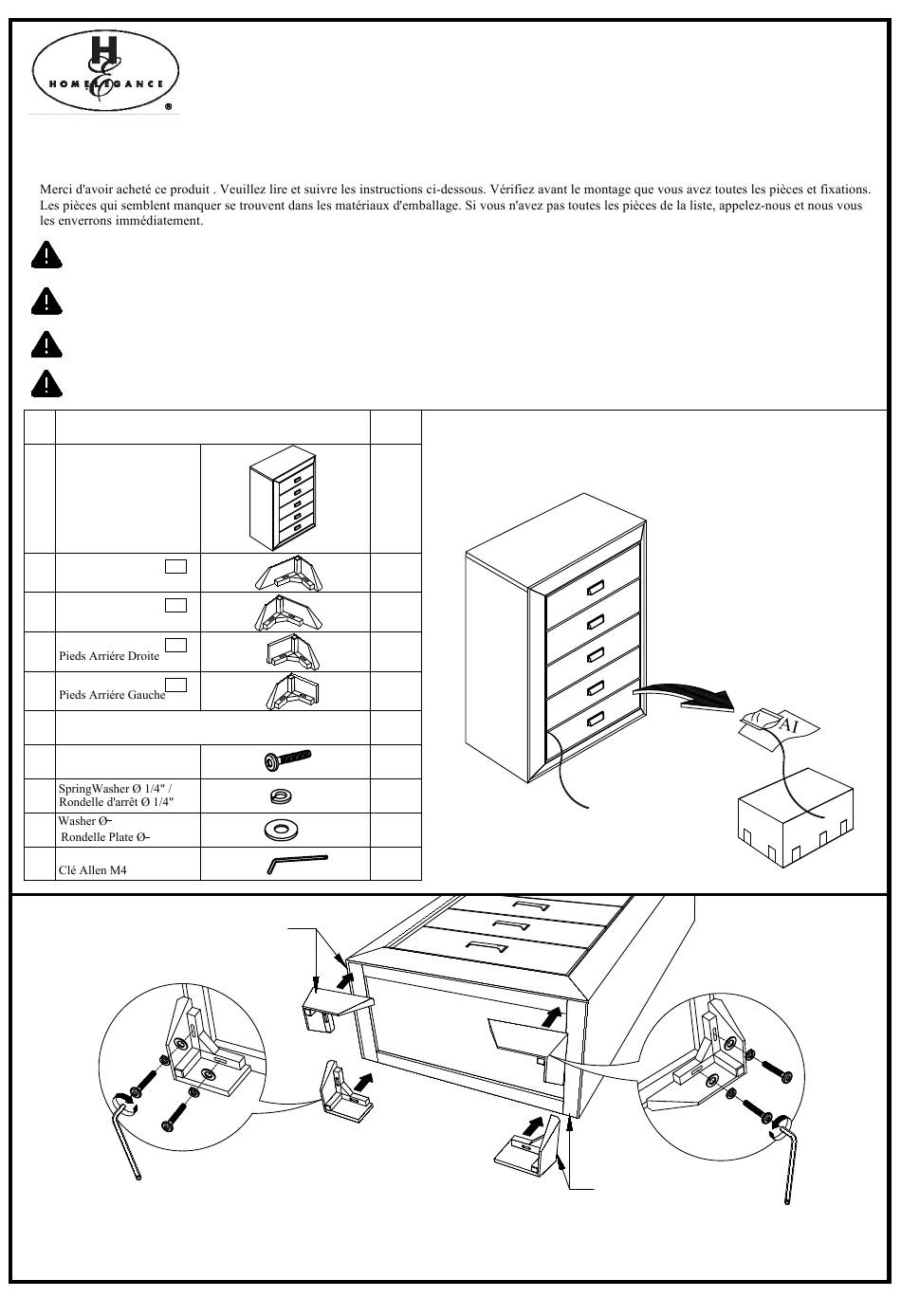

No. PARTS LIST / LISTE DE PIÈCES
A
Chest
Commode
B Front Right Feet
FR
Pieds Avant Droite
C Front Left Feet
FL
Pieds Avant Gauche
D
Rear Right Feet
BR
E Rear Left Feet
BL
No. HARDWARE LIST / LISTE DE QUINCAILLERIE
F Bolt
Boulon 35mm
G
1
" x 20mm
H
4
1
" x 20mm
4
I Allen Key
"FR" & "FL" marking at bottom
of the unit & top of the leg
STEP 2 / ÊTAPE 2
Align & tighten feet (B), (C), (D) and (E) to unit according to the position left and right. Follow the label correctly using bolt (F), lock washer (G) and flat
washer (H) and fully tighten with Allen key (I).
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED. / NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT COMPLETMENT TERMINE.
ASSEMBLY INSTRUCTION / INSTRUCTIONS DE MONTAGE
STEP 1 / ÊTAPE 1
Qty.
Take out Assembly Instruction sheet, Hardware Pack and Feet Packaging from
1
the drawer which marked with the rope.
1
1
1
1
Qty.
8
8
8
1
1904-9 / 1904GY-9
CHEST / COMMODE
"BR" & "BL" marking at bottom
of the unit & top of the leg
PAGE : 1 OF 1
"Revision 9 Apr 2024" .
