Homelegance 1904GY-5 Assembly Instruction

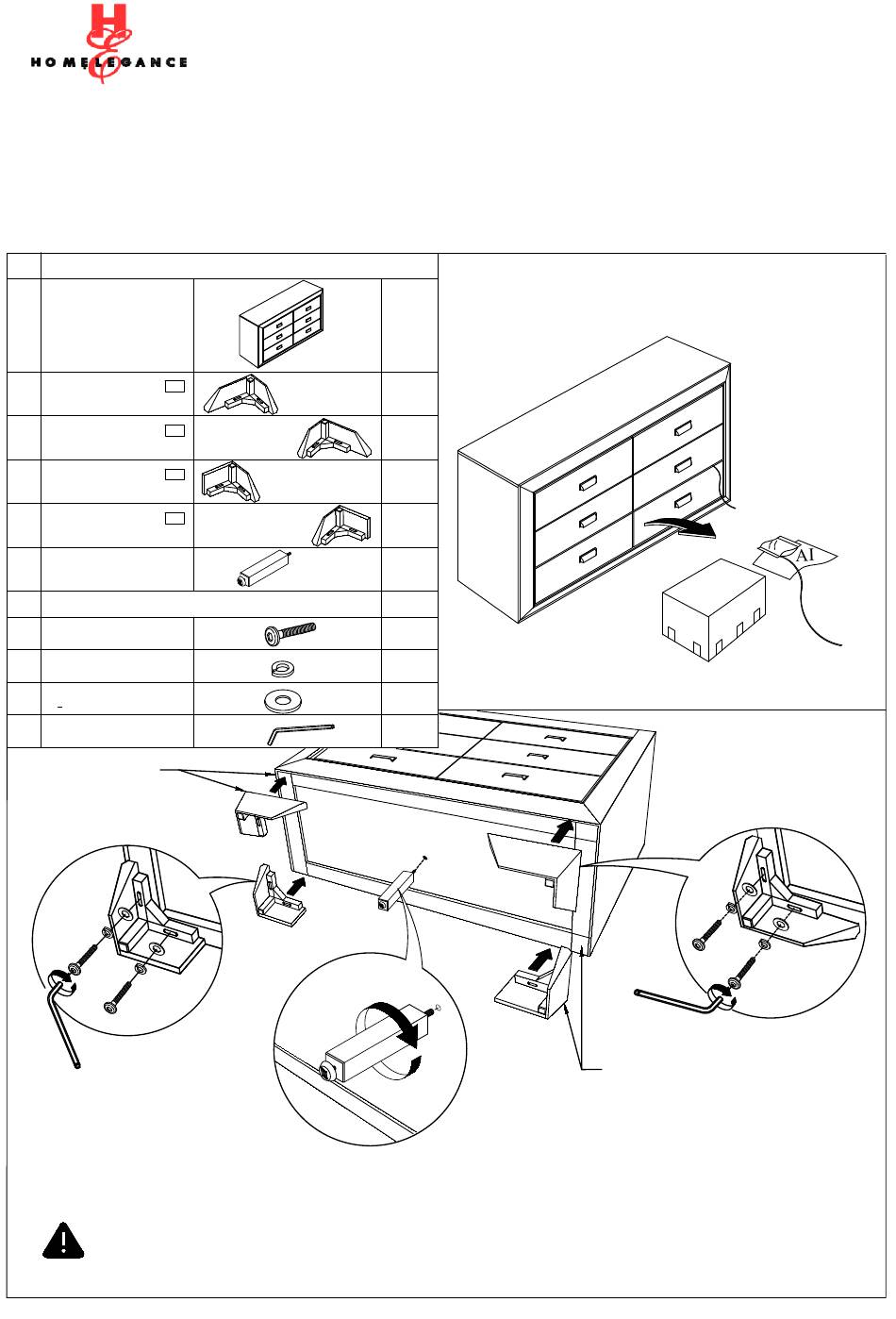

ASSEMBLY INSTRUCTION / INSTRUCTIONS DE MONTAGE
Thanks you for purchasing this product. Please take time to read and follow the instructions below. Check that you have all parts and hardware
before assembly. Parts apparently missing are often found in the packing materials. If you do not have the parts listed, call us and they will be
sent to you immediately.
Merci d'avoir acheté ce produit . Veuillez lire et suivre les instructions ci-dessous. Vérifiez avant le montage que vous avez toutes les pièces et
fixations. Les pièces qui semblent manquer se trouvent dans les matériaux d'emballage. Si vous n'avez pas toutes les pièces de la liste,
appelez-nous et nous vous les enverrons immédiatement.
NO PARTS LIST / LISTE DE PIÈCES
A

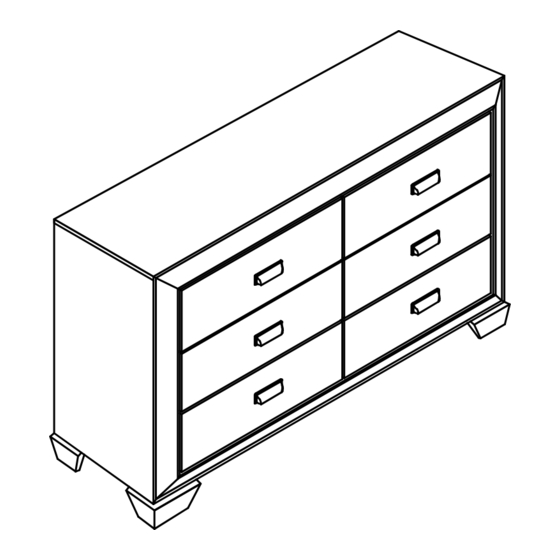

Dresser
Burreau
Front Right Feet
B
FR
Pieds Avant Droite
Front Left Feet
C
FL
Pieds Avant Gauche
Rear Right Feet
D
BR
Pieds Arriére Droite
Rear Left Feet
E
BL
Pieds Arriére Gauche
Support Leg
F
Pies de centro
NO HARDWARE LIST / LISTE DE QUINCAILLERIE
Bolt / Boulon 35mm
G
SpringWasher /
H
Rondelle de ressort
Washer / Rondelle Plate
I
1
Ø " x 20mm
4
Allen Key / Clé Allen M4
J
"FR" & "FL" Marking
at bottom of the Unit
& top of the Leg
STEP 2 / ETAPE 2
Align & tighten feet (B),(C),(D) and (E) to Unit according to the position left and right.
follow the label correctly using bolt (F), lock washer (G) and flat washer (H) and fully tighten with Allen key (I).
Align and tighten Support Leg with leveler (F) to bottom panel of unit (A) by turning support leg with leveler (F) clockwise until tight.
For items use on wooden floor, hard surfaces or carpets, it is recommended to Install protective pads
under all legs and supports to avoid/prevent from damages/scratches and discoloration.
STEP 1 / ETAPE 1
Take out Assembly Instruction sheet, Hardware Pack and
1
Feet Packaging from the Drawer which marked with the rope.
1
1
1
1
1
8
8
8
1
1904-5 / 1904GY-5
DRESSER / BURREAU
"BR" & "BL" Marking
at bottom of the Unit
& top of the Leg
