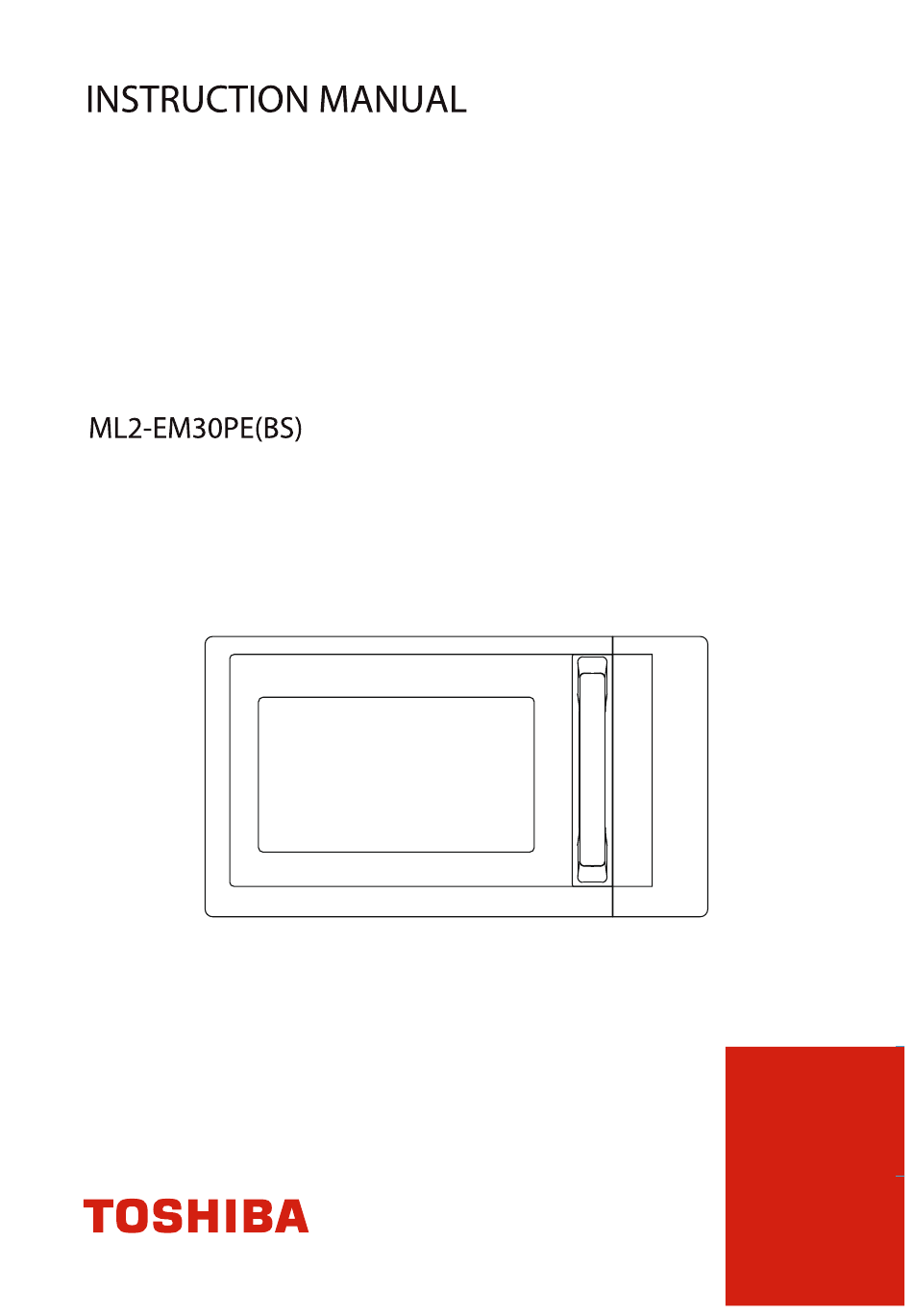

- Page 1 MICROWAVE OVEN (SOLO FUNCTION) Please review this instruction manual before operating.
-
Page 2: Table Of Contents
CONTENTS PRODUCT SAFETY Precautions to avoid possible exposure to excessive microwave energy ........EN-01 Spec cation ................................EN-02 Important safety instructions ........................EN-03 To reduce the risk of injury to persons grounding installation ............EN-07 Cleaning ................................EN-09 Utensils .................................. EN-10 Materials you can use in microwave oven .................... - Page 3 Memory Function ..............................EN-24 10. Eco Function ................................ EN-25 Inquiring Function EN-25 ..............................Lock Function ............................EN-25 ................................. 13. Auto Menu EN-26 CLEANING AND MAINTENANCE Cleaning ................................EN-27 Trouble shooting ............................... EN-29 BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE NOTE REFERENCE.
-
Page 4: Product Safety
PRODUCT SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b). -
Page 5: Specifications
SPECIFICATIONS ML2-EM30PE(BS) MODEL MAIN FUNCTION Solo PROTECTION AGAINST ELECTRIC SHOCK CLASS VOLTAGE INPUT 230 V 50 Hz FREQUENCY RATED POWER INPUT 1450 W 900 W MICROWAVE RATED POWER OUTPUT MICROWAVE FREQUENCY 2450 MHz 30 L CAPACITY DIMENSION (WXDXH) 495 x 396 x 290 mm 12.7 kg WEIGHT EN-02... -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS persons or exposure to excessive microwave oven energy when using your appliance, follow basic WARNING precautions, including the following: Read and follow the Children should be PRECAUTIONS supervised to ensure that TO AVOID POSSIBLE they do not play with the EXPOSURE TO EXCESSIVE appliance. - Page 7 IMPORTANT SAFETY INSTRUCTIONS Only use utensils that WARNING: It is hazardous are suitable for use in for anyone other than a microwave ovens. competent person to carry out any service or repair operation that involves the If smoke is emitted, switch removal of a cover which gives protection against and keep the door closed...
- Page 8 IMPORTANT SAFETY INSTRUCTIONS Failure to maintain the This appliance is intended oven in a clean condition to be used in household could lead to deterioration and similar applications of the surface that could such as: the appliance and possibly result in a hazardous working environments;...
- Page 9 IMPORTANT SAFETY INSTRUCTIONS Metallic containers for food Eggs in their shell and and beverages are not whole hard-boiled eggs allowed during microwave should not be heated in cooking. microwave ovens since they may explode, even The appliance shall not be after microwave heating has ended.
-
Page 10: To Reduce The Risk Of Injury To Persons Grounding Installation
TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. - Page 11 TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION Electric Shock Hazard: Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
-
Page 12: Cleaning
CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. -
Page 13: Utensils
UTENSILS Personal Injury Hazard: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on " Materials you can use in microwave oven "... -
Page 14: Materials You Can Use In Microwave Oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause Browning dish the turntable to break. Microwave-safe only. Follow manufacturer’s instructions. - Page 15 MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be Plastic slit, pierced or vented as directed by package.
-
Page 16: Materials Can Not Be Used In Microwave Oven
MATERIALS CAN NOT BE USED IN MICROWAVE OVEN UTENSILS REMARKS May cause arcing. Transfer food into microwave-safe dish. Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle Metal shields the food from microwave energy. Metal trim may cause arcing. -
Page 17: Product Setting
PRODUCT SETTING SETTING UP YOUR OVEN (In case of any di erences between the appliance and the pictures in this manual, the product shall prevail.) NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Turntable Ring Assembly Glass turntable Instruction Manual... -
Page 18: Turntable Installation
SETTING UP YOUR OVEN TURNTABLE INSTALLATION Clean the cooking compartment and place the turntable. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. -
Page 19: Countertop Installation
COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron. -
Page 20: Instruction For Use
INSTRUCTION FOR USE BEFORE USING FOR THE FIRST TIME It is normal that the oven may produce unpleasant odors when it is used for the first time. This section tells you what you need to do before using your microwave to prepare food for the first time. -
Page 21: Operation
OPERATION CONTROL PANEL AND FEATURES EN-18... -
Page 22: Power Levels
1. POWER LEVELS 11 power levels are available PRESS NUMBER KEY POWER DISPLAY 100% PL10 SETTING THE LOCK When the microwave oven is plugged into an outlet, "0:00" will display. In standby mode, press Clock once, “00:00” will display. Press number keys to set the time, the maximum value is 12:59. For example, press 1, 2, 0, 5 to set the time to “12:05”. -
Page 23: Kitchen Timer
3. KITCHEN TIMER In standby mode, press TIMER once, “00:00” will display. Press number keys to set the timer, the maximum value is 99:99. For example, press 5 ,0 ,0 to set the timer to 5 minutes. Press START/+30sec. to start counting down. •... -
Page 24: Time Defrost
5. TIME DEFROST Press Time Defrost once, dEF2 will display. Press number keys to set the defrost time, the maximum value is 99:99. Press START/+30sec. to start defrosting. • The default power level is PL3, it can’t be changed. NOTE 6. -
Page 25: Speedy Cooking
7.SPEEDY COOKING In standby mode, press number keys “1-6” to start microwanve cooking for 1-6 minutes with P100 power level directly. In standby mode, press START/+30sec. once to start microwave cooking for 30 seconds with 100% power level directly. • The oven door should be closed before speedy cooking. •... -
Page 26: Multi-Stage Cooking
8. MULTI-STAGE COOKING For example, set the weight defrost for 1000g then set the microwave cooking for 5 minutes with 80% power level. Press Weight Defrost once, dEF1 will display. Press “ 1,0,0,0 ” to set the defrost weight for 1000g. Press Time Cook once, “00:00”... -
Page 27: Memory Function
9. MEMORY FUNCTION Press Memory to program and choose up to three cooking procedures. Each procedure will be indicated by 1, 2 or 3 in the display. Press START/+30sec. to start cooking. Two cooking stages can be set for each procedure. To program a procedure, follow the steps listed below. -
Page 28: Eco Function
ECO FUNCTION When the microwave is plugged into an outlet and remains in standby mode, it is not set to ECO mode as a default. To enter ECO mode: While in standby mode, press Stop/Cancel/Eco once, and the screen will turn o . To cancel ECO mode: In ECO mode, press any key or open the door to cancel it. -
Page 29: Auto Menu
13. AUTO MENU Press the desired menu key repeatedly to choose the corresponding weight of it. For example, press Popcorn twice to choose the popcorn for 100g. Press START/+30sec. to start cooking. MENU CHART MENU DISPLAY WEIGHT Popcorn 100g Potato 100g 200g Pizza... -
Page 30: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. • Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. -
Page 31: Door Panels
APPLIANCE FRONT WITH STAINLESS STEEL Hot soapy water: Clean using a dish cloth and then dry with a soft cloth. Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning. -
Page 32: Trouble Shooting
TROUBLE SHOOTING Normal Radio and TV reception may be interfered when microwave oven operating. It is similar to the Microwave oven interfering interference of small electrical appliances, like TV reception mixer, vacuum cleaner, and electric fan. It is normal. In low power microwave cooking, oven light may Dim oven light become dim. - Page 34 Details Matter Contact Information...
