Related Manuals for Toshiba ML2-EM12EA
Summary of Contents for Toshiba ML2-EM12EA

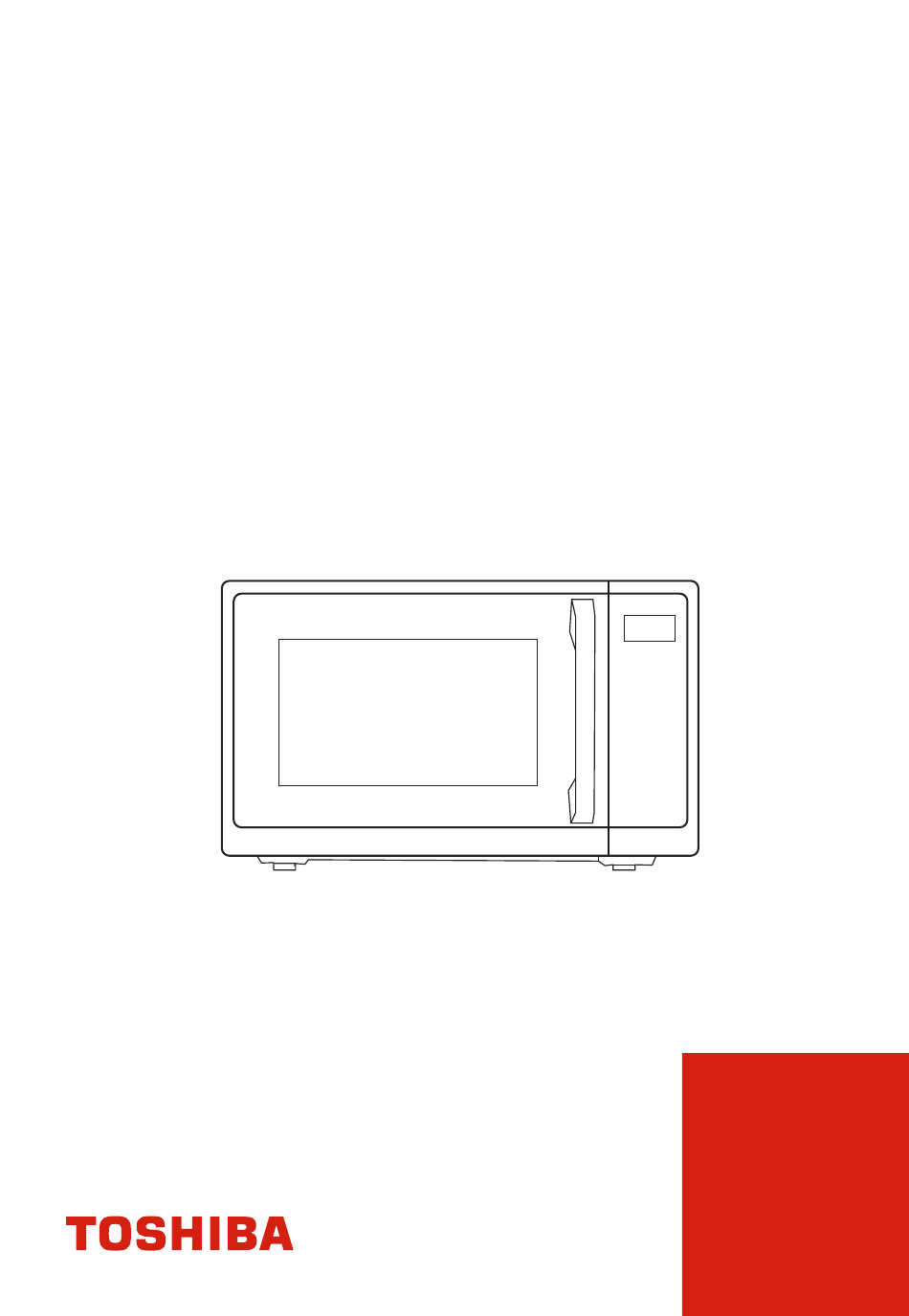

- Page 1 MICROWAVE SOLO OVEN INSTRUCTION MANUAL ML2-EM12EA(BS) Please review this instruction manual before operating.
-
Page 2: Table Of Contents
CONTENTS PRODUCT SAFETY Precautions to avoid possible exposure to excessive microwave energy ........EN-01 Important safety instructions ........................EN-03 Grounding instructions ........................... EN-07 Radio interference ............................EN-09 Utensils .................................. EN-10 Materials you can use in microwave oven ....................EN-11 Materials can not be used in microwave oven ..................EN-13 PRODUCT SETTING Setting up your oven ............................ - Page 3 11. Soften/melt ..............................EN-28 12. Memory function ............................EN-29 13. Multi-stage cooking ..........................EN-30 14. Inquiring function ............................. EN-31 15. Lock function .............................. EN-31 16. Mute function ............................. EN-32 17. Energy saver mode ........................... EN-32 18. Cooking end reminder function ......................EN-32 19.
-
Page 4: Product Safety
PRODUCT SAFETY PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. - Page 5 SPECIFICATIONS MODEL ML2-EM12EA(BS) RATED VOLTAGE 120V~ 60Hz RATED INPUT POWER (MICROWAVE) 1550W RATED OUTPUT POWER (MICROWAVE) 1100W OVEN CAPACITY 1.2 cu.ft. NET WEIGHT Approx. 33.5 lbs EXTERNAL DIMENSIONS 20.5 x 17.1 x 12.8 inch All pictures in this manual are for illustrative purposes only; these may be...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic WARNING safety precautions, including the following: Read all instructions before To reduce the risk of fire in using the appliance. - Page 7 IMPORTANT SAFETY INSTRUCTIONS Do not leave paper Liquids, such as water, products, cooking coffee, or tea are able utensils, or food in the to overheat beyond the cavity when not in use. boiling point without appearing to be boiling. Visible bubbling or boiling Install or locate this oven when the container only in accordance with...
- Page 8 IMPORTANT SAFETY INSTRUCTIONS 4. After heating, allow or some smoke in the the container to stand microwave cavity, in the microwave oven discoloration of the cavity for a short time before may also occur. removing the container. 5. Use extreme care when inserting a spoon or other utensil into the container.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS of oven is specifically Do not use this oven designed to heat, cook or near water, for example, dry food. near a kitchen sink, in It is not designed for a wet basement, near a industrial or laboratory use. swimming pool, or similar location.
-
Page 10: Grounding Instructions
GROUNDING INSTRUCTIONS IMPROPER CONNECTION OF THE EQUIPMENT- GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE OUTLET IS PROPERLY WARNING GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE APPLIANCE-IF IT WILL NOT FIT THE OUTLET, HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN. - Page 11 GROUNDING INSTRUCTIONS Electric Shock Hazard: Touching some of the internal components can cause serious personal injury or death. Do not DANGER disassemble this appliance. Electric Shock Hazard: 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
-
Page 12: Radio Interference
RADIO INTERFERENCE 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: (1). Clean door and sealing surface of the oven. (2). -
Page 13: Utensils
UTENSILS Personal Injury Hazard: Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven " or "Materials can not be used CAUTION in microwave oven."... -
Page 14: Materials You Can Use In Microwave Oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause Browning dish the turntable to break. Microwave-safe only. Follow manufacturer’s instructions. - Page 15 MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be Plastic slit, pierced or vented as directed by package.
-
Page 16: Materials Can Not Be Used In Microwave Oven
MATERIALS CAN NOT BE USED IN MICROWAVE OVEN UTENSILS REMARKS May cause arcing. Transfer food into microwave-safe dish. Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle Metal shields the food from microwave energy. Metal trim may cause arcing. -
Page 17: Product Setting
PRODUCT SETTING SETTING UP YOUR OVEN NAMES OF OVEN PARTS AND ACCESSORIES Throughout this manual, features and appearance may vary from your model. Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring... -
Page 18: Setting Up Your Oven
SETTING UP YOUR OVEN TURNTABLE INSTALLATION Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. - Page 19 COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown waveguide cover that is attached to the oven cavity to protect the magnetron.
- Page 20 • Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven NOTE could be damaged and the warranty would be avoid. The accessible surface may be hot during operation CUSTOMER CARE AND SERVICE THANK YOU FOR MAKING OUR APPLIANCES A PART OF YOUR HOME.
-
Page 21: Instruction For Use
INSTRUCTION FOR USE BEFORE USING FOR THE FIRST TIME The appliance may produce unpleasant odors when it is used for the first time. This section tells you what you need to do before using your microwave to prepare food for the first time. -
Page 22: Operation
OPERATION CONTROL PANEL AND FEATURES EN-19... -
Page 23: Power Levels
1. POWER LEVELS TEN POWER LEVELS ARE AVAILABLE. Touch "Cook Time" , "0:00" will display, then touch number pads. Touch "Power" and "PL10" will display. Then touch number pads to select a different power level. In cooking state of microwave, touch "Power", the current power will be displayed for 3 seconds. -
Page 24: Clock Setting
LEVEL POWER DISPLAY 2. CLOCK SETTING WHEN THE MICROWAVE OVEN IS PLUGGED INTO AN OUTLET, "0:00" WILL DISPLAY. Touch "Clock" once, "00:00" will appear in the display. Touch the number pads to enter the current clock time. For example, if the time is now 10:12, touch " 1, 0, 1, 2 " in order. Touch "Clock"... -
Page 25: Microwave Cooking
Touch to confirm setting, and the timer will start to count down. When the time amount elapses, timer indicator will disappear. The oven will beep 5 times. • The Kitchen Timer setting is different from the Clock setting; it is simply a timer. -
Page 26: One Touch Start
• Touch "1, 5, 0, 0" in order for 15:00 to appear in the display. • Touch "Power" , then touch "5" to select 50% microwave power. • Touch to start cooking. Buzzer sounds once. The remaining cooking time will display. •... -
Page 27: Custom Defrost Function
6. CUSTOM DEFROST FUNCTION Touch "1lb Def". pad, "dEF1" will appear in the display. Touch "1lb Def". pad repeatedly, "dEF2", "dEF3", "dEF1" will display in order. LED DISPLAY FOOD dEF1 Meat dEF2 Poultry dEF3 Fish Touch number pads to enter the weight to be defrosted. Input the weight range between 1 to 100 Oz. -
Page 28: Sensor Menu
Touch to start defrosting, the remaining defrost time will display. • Power level cannot be check or change during defrosting. NOTE 8. SENSOR MENU ( Sensor Reheat, Frz. Pizza, Frz Entrée, Potato, Rice, Veggie) Touch the pad for one of the Sensor Menu functions. An "SC-" number, will appear in the display. - Page 29 Example: Sensor Reheat Pad • After placing food into oven, touch "Sensor Reheat" pad and "SC- 1" will display. • Touch to cook. Oven beeps 5 times when cooking is finished. • Food to be avoided in sensor reheating. a. Bread and other dry food, such as biscuits or cake. b.
-
Page 30: Popcorn
Example: Veggie Sensor Pad • Touch "Veggie" once , "SC-6" will display, to cook fresh vegetable. Touch "Veggie" 2 times , "SC-7" will display, to cook frozen vegetable. • Touch to cook. After the cooking time displays, food can be turned over. -
Page 31: Soften/Melt
Touch "Auto Cook" more times, "CC-2, CC-3, CC-4, CC-5" will display in order. Refer to the Auto Menu Chart below. Touch to confirm the menu. Then touch a number pad to select the weight or portion of food item. Touch to cook, "... -
Page 32: Memory Function
Auto Menu Chart: MENU BUTTON FOOD DISPLAY WEIGHT/PORTION Auto Cook-Bacon CC-1 2-6 SLICES Auto Cook-Frozen roll/ CC-2 1-6 PIECES Muffin-reheat Auto Cook Auto Cook-Beverage CC-3 1-2 CUPS Auto Cook-Chicken Pieces CC-4 8-32 Oz Auto Cook-Oatmeal(with CC-5 20/40 Oz milk) Melt-Butter/Margarine 1-3 STICKS Melt-Chocolate 4/8 Oz... -
Page 33: Multi-Stage Cooking
• Touch "Cook Time" once, then touch "3","2" and "0" in order. • Touch "Power" once, then touch "8" for "PL8" to display. • Touch "Memory" to save the procedure. Oven beeps once. Or touch directly to start cooking. • To choose the procedure from the memory list, touch "Memory"... -
Page 34: Inquiring Function
• Touch "Cook Time" again, then touch "1", "0", "0" and "0" to set second stage cook time. • Touch "Power" again, then touch "6" to choose 60% second stage cooking power. • Touch to immediately start multi-stage cooking. 14. INQUIRING FUNCTION When oven is cooking, touch "Clock"... -
Page 35: Mute Function
16. MUTE FUNCTION It is default that the buzzer sounds is open. In standby mode, long touching on numeric pad "8" for 3 seconds, it sounds a long beep, turns off the sound. All the pads has no beep when they are touched, and the ending cooking sounds are off. -
Page 36: Other Specification
19. OTHER SPECIFICATION When setting cooking function, the function abbreviation appears in the display. When oven is cooking or paused (door opened) during cooking, the remaining cooking time appears in the display. must be touched to continue cooking if the door is opened during cooking. -
Page 37: Cleaning
CLEANING With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance. • Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents. - Page 38 APPLIANCE FRONT PLATE Hot soapy water: Clean using a dish cloth and then dry with a soft cloth. Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning.
-
Page 39: Maintenance
MAINTENANCE TROUBLE SHOOTING Check your problem by using the chart below and try the solutions for each problem. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is not a. Plug into the outlet. plugged in. Oven will not start b. - Page 40 TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Cover or lid over food must a. Cover or lid on food not contain vent hole for escaping vented. steam. Sensor cooked foods b. Door opened before sensor- b. Do not open door to stir or not properly cooked detected cooking time appears turn food before sensor-...
-
Page 41: One Year Limited Warranty
If service is required during the warranty period, properly pack your unit. We recommend using the original carton and packing materials. If additional assistance is needed, please contact customer assistance at: customercare@us.toshiba-lifestyle.com 855-204-5313 Midea America Corp. expressly disclaims all responsibility for consequential damages or incidental losses caused by use of the appliance. - Page 44 Details Matter Customercare@us.toshiba-lifestyle.com 855-204-5313...
