blupura BLUSODA Use & Maintenance Manual

Hide thumbs Also See for BLUSODA:
Table of Contents

Advertisement

Quick Links

Download this manual
BLUSODA
BLUSODA BOX
Before installing or using the product read the precautions
and general recommendations inside.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUSODA and is the answer not in the manual?

Questions and answers

Related Manuals for blupura BLUSODA

Summary of Contents for blupura BLUSODA

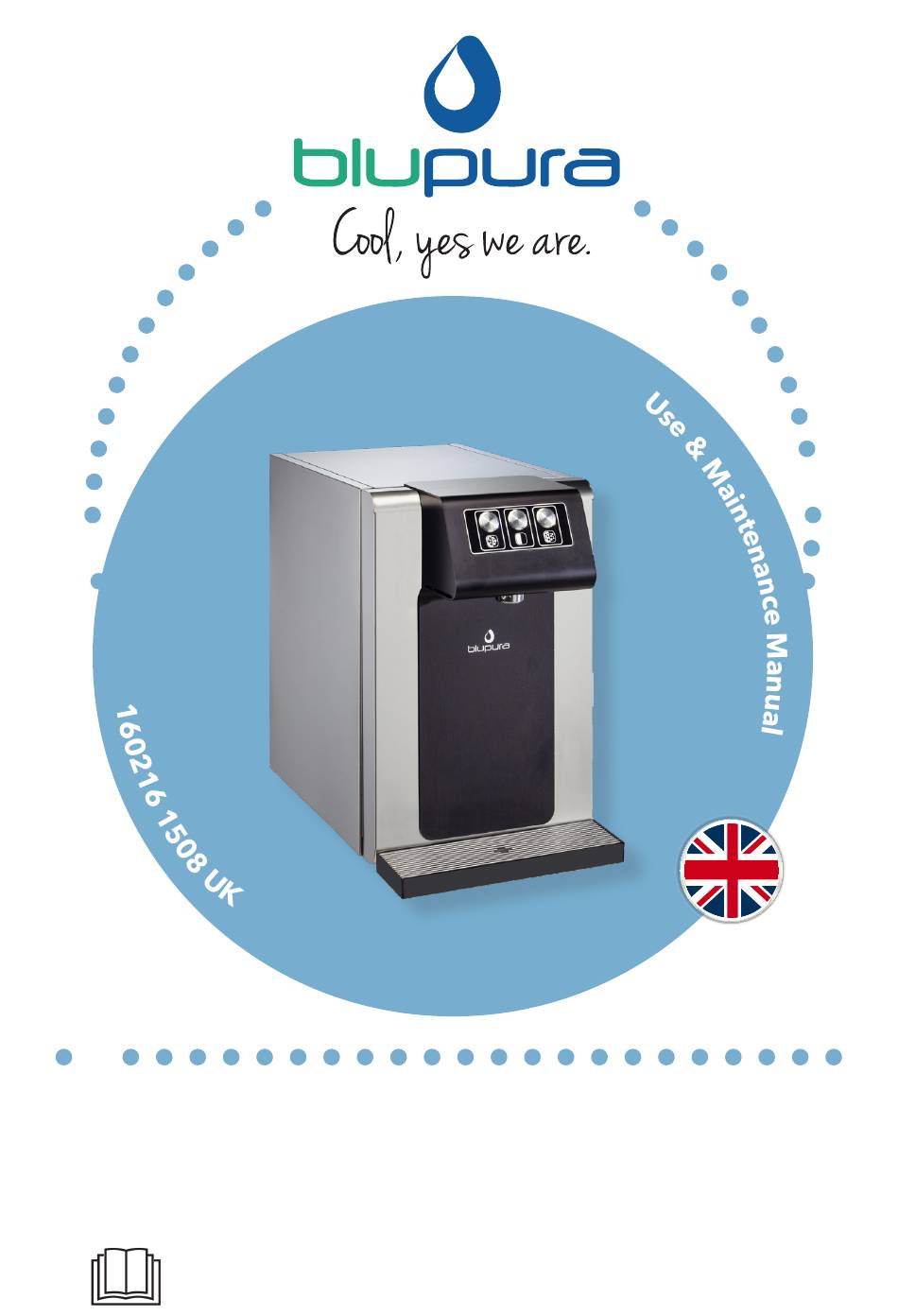

  • Page 1 BLUSODA BLUSODA BOX Before installing or using the product read the precautions and general recommendations inside.

  • Page 3: Precautions And General Recommendations

    Precautions and general recommendations This appliance is intended to be used in domestic and similar applications, such as: • the kitchen area for the staff of shops, offices and other working environments; • farms and by customers in hotels, motels and other residential-type environments;...
  • Page 4 CERTIFIED • ASSOCIATIONS • INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • DESCRIPTION OF THE KEYPAD - MOD. BLUSODA FIZZ • FUNCTIONS OF THE VOLUMETRIC KEYPAD • DESCRIPTION OF THE KEYPAD - MOD. BLUSODA PLUS • TECHNICAL FEATURES • INSTALLATION •...

  • Page 5: Before Installing The Water Cooler

    The original text of this publication, written in Italian, is the only reference for settling any interpretative disputes regarding the translations of EU languages. Blupura reserves the right to change or modify the stated features without prior notice. 160216 - Rev. 09 - 09/2023...

  • Page 6: Recommendations For Safeguarding The Environment

    Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE).

  • Page 7: Electrical Safety

    Certified For the list of product and company certifications contact Blupura Srl. Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation.
  • Page 8 Associations International Awards BEST MARKETING CAMPAIGN BEST ENVIRONMENTAL PRACTICE BEST PROMOTION OF HEALTH AND HYDRATION BEST SERVICE PERSON EUROPEAN AQUA AWARDS 2019, BERLIN BEST WEBSITE EUROPEAN AQUA AWARDS 2018, DUBLIN BEST MARKETING CAMPAIGN EUROPEAN AQUA AWARDS 2017, KRAKOW BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME BEST PROMOTION OF HEALTH AND HYDRATION...

  • Page 9: Description Of The Unit

    Description of the unit Compact, powerful and entirely made of stainless steel, Blusoda is the smallest cooler of BLUPURA’s range: perfect for your home and office, with professional performances. The main features of the unit are as follows: • DRY COOLING technology: a noiseless, low...
  • Page 10 Frontal view - Mod. Blusoda 30/45 Detachable water dispensing Stainless steel buttons nozzle Drip tray with grid Alarm LEDs (VOL mod.) 160216 - Rev. 09 - 09/2023...
  • Page 11 Rear view - Mod. Blusoda 30/45 Mod. Blusoda 45 Mod. Blusoda 30 inlet pipe joint Ø5/16” Slide cover (8mm) Power button Adjustable thermostat IEC outlet power cord Support feet Drinking water inlet pipe joint Energy Saving button (VOL Ø5/16” (8mm)* mod.)
  • Page 12 Frontal view - Mod. Blusoda Box 30/45 Mod. Blusoda 30 Mod. Blusoda 45 Adjustable thermostat Power button IEC inlet power cord Ventilation conduit 160216 - Rev. 09 - 09/2023...
  • Page 13 Rear view - Mod. Blusoda Box 30/45 Sparkling water outlet pipe joint Carbonator safety valve Ø5/16” (8mm) Room temperature water outlet inlet pipe joint Ø5/16” pipe joint Ø5/16” (8mm) (8mm) Cold water outlet pipe joint Ø5/16” Drinkable water inlet pipe joint (8mm) Ø5/16”...
  • Page 14 Description of the keypad - Mod. Blusoda FIZZ Fig. 14.3 - Vista posteriore Cold still water dispensing button Room-temperature still water dispensing button Cold sparkling water dispensing button (mod. FIZZ) ENERGY SAVING button (on the back in VOL models) BLUE led (STAND-BY)*:...

  • Page 15: Functions Of The Volumetric Keypad

    Functions of the volumetric keypad The water cooler (VOL model) is equipped with a VOLUMETRIC dispensing system. The dispensing quantities are easily PROGRAMMABLE during installation. On turning on the unit, the default settings are as follows: a short pressure of the buttons dispense 200 ml of water (a cupful), whereas a long pressure dispense 1000 ml (1 litre).
  • Page 16 FUNCTIONALITY WITH ALARMS ACTIVATED: “NO WATER” ALARM: This alarm is triggered when the pump sends the NO WATER signal. In this case, the associated BLUE led L.1 starts to flash quickly and the sparkling water dispensers do not work. The other dispensers continue to work as normal.
  • Page 17 Description of the keypad - Mod. Blusoda PLUS Mod. PLUS FIZZ Mod. PLUS MIX Cold still water or semi-sparkling water dispensing button Room-temperature still water or cold water dispensing button Cold sparkling water dispensing button. During normal operation, the blue LEDs on the keys are always on. The water is dispensed while pressure is being applied to the button.
  • Page 18 Technical Features – Technical Data Plate BLUSODA 30 FIZZ BLUSODA BOX 30 FIZZ 230V ~ 50 Hz 210 W 0,90 A 230V ~ 50 Hz 230 W 1,00 A Gas R290 : 0,049 Kg Gas R290 : 0,049 Kg Max inlet water pressure 0,35 MPa (3,5 bar)
  • Page 19 PRODUZIONE Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali...
  • Page 20 SHEET 1 OF 1 Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali...

  • Page 21: Technical Data Sheet

    Technical Data BluSoda 30 BluSoda 45 Sheet Blusoda Box 30 Blusoda Box 45 Cooling capacity 30 lt/h 45 lt/h Continuous supply 6 lt 12 lt Cold water temperature 5 - 12°C * Cooling technology Aluminium fusion block heat exchanger Cold Water Coil...

  • Page 22: Installation

    Installation * Blusoda Installation. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. Unpacking Remove the machine from the box and remove the inner packing. In mod.
  • Page 23 SHEET 1 O of the system, the use of an anti-flooding Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modific system such as the Water Block (cod. 750133 8mm / cod. 750144 3/8”) or a similar device is compulsory.
  • Page 24 Connect incoming water tube (3, Fig. 23.3) to the drinking-water main, ideally with a tap upstream of the unit. On mod. Blusoda, you can connect the drip tray (provided closed - 1) to a drainage pipe, by plunging it with a drill with a max. 7mm tip (Fig.

  • Page 25: Electrical Connection

    On the FIZZ model, the carbonator pump is also activated. Press the “Sparkling Water” button on the right of the Blusoda keypad (4) or on your chosen tap in order to release any air in the circuit and to allow the pump to fill the carbonator with water.
  • Page 26 – i.e. at least one hour after installation. CAUTION! Fig. 26.2 - Mod Blusoda Box The CO inlet pressure to the machine must be set at 3.5-4 bar and to obtain optimal carbonation it must be 1 bar higher than the water inlet pressure to the system.

  • Page 27: Handling The Gas Cylinders

    Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;...

  • Page 28: Filtration (Optional)

    Filtration (optional) 3M filter On request, the unit can be fitted with a 3M carbon block filter to be installed inside the machine. MAIN FEATURES The filter removes the smell and taste of chlorine and other contaminants that can alter the taste of the water. It reduces the presence of large sediments up to 0.5 microns.
  • Page 29 Filtration (optional, only mod. Blusoda) Sterilizing UV filter Alongside the carbon filter, it is also possible to have your water cooler fitted with a UV-C (λ=254 nm) sterilizing filter on the dispensing point (only mod. Blusoda). The UV-C light emitted by the special 4W...
  • Page 30 Bluprotection (optional) DESCRIPTION Bluprotection is a registered trademark of Blupura Srl. This procedure has been developed to ensure that the unit retains an appropriate quantity of micro-organisms during the phases when it is no longer under the direct control of the manufacturer (i.e.

  • Page 31: Sanitization - Notes

    This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization.
  • Page 32 MOUNT CARTRIDGE Snap the adapter into the QL2B/QL3B Everpure filter head, then screw in the blupura®blusan cartridge. CLEANING AND DISINFECTION Dispense one after the other: • Room temperature water: approx. 2 sec. • Cold still water: approx. 10 sec. • Sparkling water: approx. 30 sec.
  • Page 33 DISPENSING AREA CLEANSING Spray the nozzles, back wall and drip tray with blupura®blusan. Don’t wipe again the nozzles. Dry the surfaces with a disposable cloth. RECOMMISSIONING Function control: Draw small amount of water from each tap and check the taste.

  • Page 34: Routine Maintenance Operations

    Sanitization of the system 1) At first installation Sanitization of the complete hydraulic circuit following 2) Any time a hydraulic the Blupura BLUSAN component is replaced procedure 3) Any time a filter cartridge is changed 4) At least once per year...
  • Page 35 Flushing In case of non-use of the The End User shall contact system for whatever reason Blupura in order to arrange for a period of over two a sanitization as soon as weeks possible before getting drinking water.

  • Page 36: Service History

    Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature 160216 - Rev. 09 - 09/2023...

  • Page 37: Warranty Conditions

    Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects.
  • Page 40 Blupura srl Via Gandolfi, 6 40057 Cadriano Di Granarolo Dell’Emilia (BO) Italy Headquarters: Via Volponi, 11 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...

This manual is also suitable for:

Blusoda box
