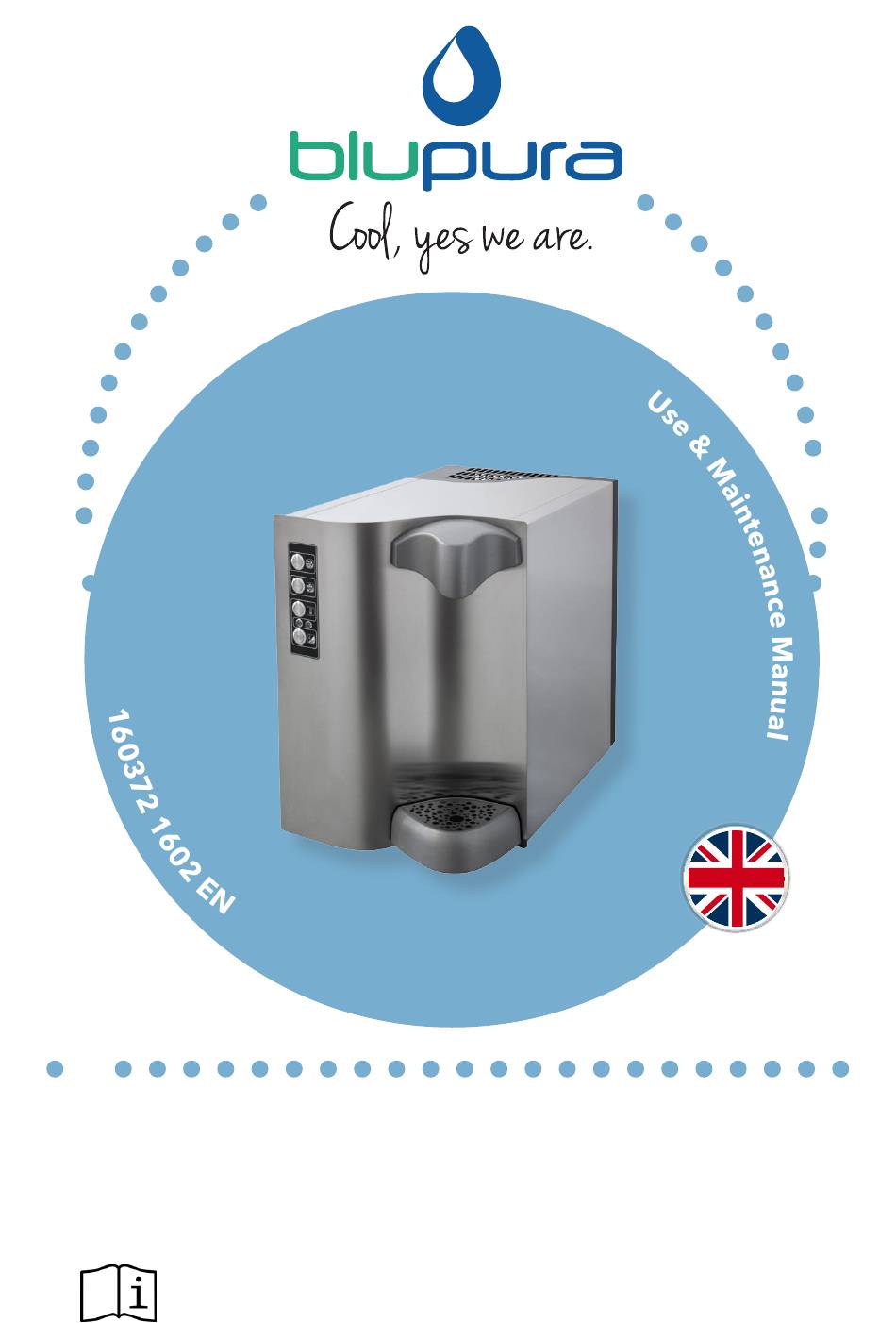

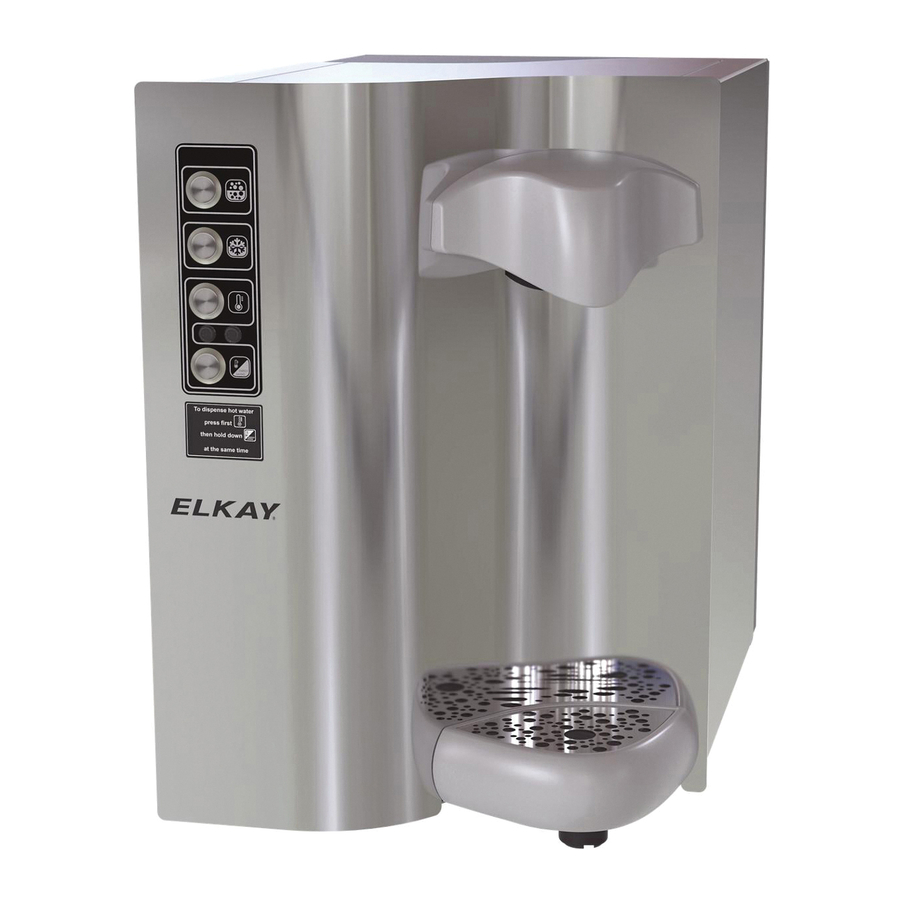

  • Page 1 WAVE HOT WAVE BOX HOT Before Install or use the product read to the precautions and general recommendations inside.
  • Page 3 Precautions and general recommendations This appliance is intended to be used in household and similar applications such. Appliance for internal use only. Place the unit away from water jets. Always connect the water cooler to a water main that supplies drinking water only.

  • Page 4: Table Of Contents

    INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • DESCRIPTION OF THE KEYPAD • TECHNICAL FEATURES • INSTALLATION • HANDLING THE GAS CYLINDERS • FILTRATION (OPTIONAL, MOD. WAVE HOT) • SANITIZATION – NOTES • ORDINARY MAINTENANCE • SERVICE HISTORY • WARRANTY CONDITIONS...

  • Page 5: Before Installing The Water Cooler

    Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in...

  • Page 6: Recommendations For Safeguarding The Environment

    Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE).

  • Page 7: Certified

    Certified See official list ANSI/UL 399 D.M. 174 rosso 032 c UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation.

  • Page 8: Associations

    Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE...

  • Page 9: Description Of The Unit

    • WAVE received third prize for “Best Product Design/Innovation” for 2010 from the European EBWA association.Il mod. • Mod. Wave Box Hot can be can be fitted to any type of tap. Visit the website www.blupura.com to view our product range.
  • Page 10 Front View (mod. Wave Hot Box) Power button Boiler power button Drinking water inlet pipe joint Adjustable thermostat Boiler condensation drain hose inlet pipe joint 8mm (only Ø8mm mod. FIZZ) Sparkling water outlet pipe Ice bank overflow 8mm (only mod. FIZZ)
  • Page 11 Rear view (mod. Wave Box Hot 60) Power cable...
  • Page 12 External Front View Keypad Drip tray grid Drip tray Removable Top Cover Draft protection Front door...
  • Page 13 Internal Front View Ice bank drainage pipe General switch inlet pipe Ø5/16” (8 mm) Adjustable cooler thermostat Ice bank inlet pipe joint Ø5/16” (8 Adjustable boiler thermostat Inlet safety valve with check valve Boiler switch and mechanical filter Ø5/16” (8...
  • Page 14 Rear View IEC inlet power cord Support feet...

  • Page 15: Description Of The Keypad

    Description of the keypad Cold sparkling water dispensing button (only in FIZZ model) Cold still water dispensing button Hot water dispensing button ENERGY SAVING/Hot water dispensing button BLUE led (STAND-BY): Quick flashing - Little or no water at the inlet Slow flashing - Little or no CO remaining (only in FIZZ model) GREEN led:...

  • Page 16: Technical Features

    Technical Features – Technical Data Plate 16 Year of manufacture 02 Month of manufacture 06049 Serial number...
  • Page 17 Technical Features - dimensions (mm) [mod. Wave Hot] 330mm 489mm 330mm 489mm [mod. Wave Box Hot] SE NON SPECIFICATO: QUOTE IN MILLIMETRI FINITURA SUPERFICIE: TOLLERANZE: LINEARE: ANGOLARE: NOME DISEGNATO VERIFICATO APPROVATO FATTO QUALITA' SE NON SPECIFICATO: FINITURA: SBAVATURA E NON SCALARE IL...
  • Page 18 Technical data sheet WAVE HOT 60 WAVE BOX HOT 60 Cooling capacity (lt/h) Continuous supply (lt) 5°-10° C * Cold water temperature Ice bank capacity (lt) Ice bank (kg) Stainless Steel AISI 316 Cold water coil 95° C Hot water temperature...

  • Page 19: Installation

    Installation * Installation. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. Unpacking Remove the two plastic tape. Lift the internal cardboard box up and out of the cage. Carefully check that the watercooler has not been damaged during transport.
  • Page 20 SANITIZE the machine as described in the paragraph on page 29. Filling the Ice Bank In mod. Wave Hot, open the rear panel using the supplied key. Fill the ice bank Fig. 20.1 - Mod. Wave Hot using the specific inlet pipe joint Ø5/16”...
  • Page 21 Water Block is compulsory (cod. 140065). Check that the mains pressure is between 1 Fig. 21.1 - Mod. Wave Hot bar and 3,5 bar. To enhance the quality of the sparkling water dispensed, an incoming flow rate in excess of 3.5 l/min is recommended.
  • Page 22 (1). The compressor and fan are now activated. Press the “Sparkling Water” button on the right of the Wave Hot keypad (4) or on your chosen tap in order to release any air in the circuit and to allow the pump to fill the carbonator with water.
  • Page 23 Hold down P.3 button first and then hold down P.4 button at the same time (mod. Wave Hot) or the hot water dispensing button on your chosen tap to release any air in the circuit and make sure that the boiler is full with water.
  • Page 24 Installation of the CO cylinder (mod. Wave Hot) Once the unit is connected to the mains water and electricity, and the ice-bank tank has been filled, you can install the E290 food-grade carbon dioxide (CO cylinder. The machine is NOT equipped with the pressure reductor, which must be ordered separately.

  • Page 25: Handling The Gas Cylinders

    Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;...

  • Page 26: Filtration (Optional, Mod. Wave Hot)

    Filtration (optional, mod. Wave Hot) AC Filter On request, the unit can be fitted with an Everpure AC filter. MAIN FEATURES This filter removes the odour and flavour of chlorine and other contaminants that can alter the taste of the water. The Precoat microfiltration system removes impurities and particles with dimensions of 0.5 microns and above.
  • Page 27 QUARTZ 4W Wave/Ecochic 150068 (Max lamp rating 1,2W 600V) on the water exit point to avoid backflow contamination and a sterilizing filter BLUPURA UVC IN QUARTZ 12W 150043 on the water entry point. The UV-C light emitted by the special 12W...
  • Page 28 Replacement of the UV lamps The replacement can only be performed by qualified personnel. Disconnect the unit from its electrical source. Once the unit is shut down, open the service panel with the provided key. Disconnect the electrical connector of the UV OUT lamp (2).

  • Page 29: Sanitization – Notes

    This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization.

  • Page 30: Ordinary Maintenance

    Ordinary maintenance External cleaning of the unit Cleaning and user maintenance shall not be made by children without supervision To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel.

  • Page 31: Service History

    Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature...

  • Page 32: Warranty Conditions

    Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects.
  • Page 35 160372 - Rev. 00 - 02/10/2017 - 15:40...
  • Page 36 Blupura srl - Sede legale - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Sede operativa - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel 071 9710080 Fax 071 9710084 info@blupura.com www.blupura.com...
