blupura BLUBAR Use & Maintenance Manual

Beer tap, it, floor standing
Hide thumbs
Table of Contents

Advertisement

Quick Links

BLUBAR
BEER TAP, IT, FLOOR STANDING
Before Install or use the product read to the precautions and
general recommendations inside.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUBAR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for blupura BLUBAR

Summary of Contents for blupura BLUBAR

  • Page 1 BLUBAR BEER TAP, IT, FLOOR STANDING Before Install or use the product read to the precautions and general recommendations inside.

  • Page 3: Precautions And General Recommendations

    Precautions and general recommendations This appliance is intended to be used in household and similar applications such. Appliance for internal use only. Place the unit away from water jets. Always connect the water cooler to a water main that supplies drinking water only.
  • Page 4 Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • CERTIFIED • ASSOCIATIONS • INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • PANEL DESCRIPTION (MOD. BEER TAP) • KEYPAD DESCRIPTION (MOD. I.T.) • FUNCTIONS OF THE VOLUMETRIC KEYPAD •...

  • Page 5: Before Installing The Water Cooler

    Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in...

  • Page 6: Recommendations For Safeguarding The Environment

    Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE).

  • Page 7: Electrical Safety

    See official list ANSI/UL 399 D.M. 174 rosso 032 c * Blubar 150/80 Beer Tap/IT, Blubar 150/80 Beer Tap/IT Fizz, UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation.
  • Page 8 Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE...

  • Page 9: Description Of The Unit

    Description of the unit BLUBAR — a new watercooler with a modern and elegant design. The main features of the unit are as follows: • A modern design using strong materials and a front plexiglass panel with an elegant lighting.
  • Page 10 Front view (mod. BEER TAP, I.T.) Mechanical taps (mod. BEER Drip tray with ice bank drain TAP) or dispensing buttons pipe (mod. IT) Removable top cover Anti-shock feet BLUBAR plexiglass...
  • Page 11 Rear view (mod. BEER TAP, I.T.) Ice bank inlet pipe joint Ø8 mm Energy Saving button (mod. I.T. (excluding mod. BEER TAP 30) Drinkable water inlet pipe joint Adjustable thermostat Ø8 mm inlet pipe joint Ø8 mm General switch Ice bank level (excluding mod.
  • Page 12 Front view (Mod. FLOOR STANDING) Mechanical taps (mod. BEER TAP) or dispensing buttons Front panel (mod. IT) BLUBAR plexiglass Rear wheels Drip tray with grid Adjustable front feet...
  • Page 13 Rear view (Mod. FLOOR STANDING) Ice bank overflow outlet pipe Drip tray waste pipe Ø40mm OD17xID12 mm Drinkable water inlet pipe Ø3/8’’ (9,5mm) in mod. 150 or Ø5/16’’ Power cable (8mm) in mod. 80...
  • Page 14 Panel description (mod. BEER TAP) Cold sparkling water Cold still water Pull forward the tap knob to start the dispensing process. Bring it back up to stop it.

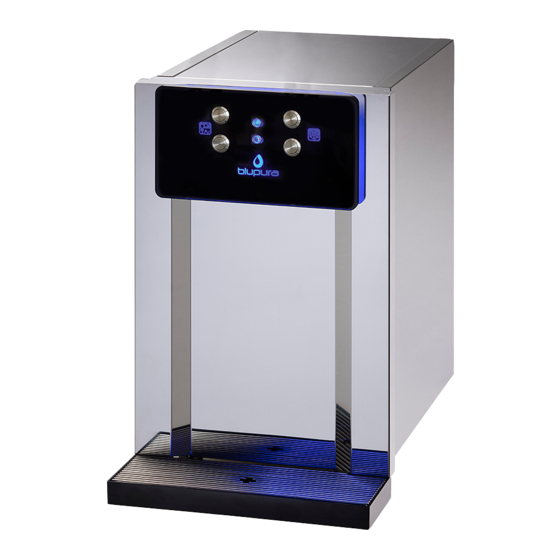

  • Page 15 Keypad description (mod. I.T.) Rear view P.1/P.2 Cold sparkling water dispensing buttons P.3/P.4 Cold still water dispensing buttons Energy Saving button (on the back in mod. I.T. 80) BLUE Led (STAND-BY): Fast flashing - Little or no water at the inlet Slow flashing - Little or no CO at the inlet GREEN Led:...

  • Page 16: Functions Of The Volumetric Keypad

    Functions of the volumetric keypad The water cooler (I.T. model) is equipped with a VOLUMETRIC dispensing system. The dispensing quantities are easily PROGRAMMABLE during installation. On turning on the unit, the default settings are as follows: the upper buttons dispense 200 ml of water (a cupful), whereas the lower buttons dispense 1000 ml (1 litre).
  • Page 17 “NO GAS” ALARM: This alarm is triggered when the CO pressure switch sends the NO GAS signal. In this case, the associated BLUE led L.1 starts to flash slowly and all of the dispensers continue to work as normal. To reset the alarm, connect a new CO cylinder.
  • Page 18 Technical Features – Technical Data Plate [mod. BLUBAR] 15 Year of manufacture 09 Month of manufacture 00247 Serial number...
  • Page 19 SHEET 1 OF 1 Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o cor Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o cor...
  • Page 20 DRAWN 11/12/2015 M.Pediconi CHK'D APPV'D MATERIAL: TITLE: EDV TT BP -View NOTE: 1:10 WEIGHT: SCALE: SHEET 1 OF 1 Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzione - Disegno eseguito con CAD, vietato fare modifiche o correzioni manuali...
  • Page 21 Technical Features - dimensions (mm) [mod. BLUBAR BEER TAP 150] 24,3in 617,4mm 21,3in 14,7in 541,6mm 372,3mm 23,9in 606,1mm 18,1in 460mm [mod. BLUBAR I.T. 150] 21,3in 15,0in 542mm 380mm 23,9in 606mm 18,1in 460mm...
  • Page 22 Disegnatore Data Rev.Descrizione Modifica - Quote senza indicazioni di Tolleranza: Grado di Precisione: MEDIA - UNI EN 22768/1 Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzion Disegno di proprietà della BLUPURA Srl - Vietata qualsiasi riproduzion 20,5in 520,7mm...

  • Page 23: Technical Data Sheet

    BLUBAR Technical BLUBAR Beer BLUBAR (I.T., Beer Tap) data sheet Tap 30 (I.T., Beer Tap) 80 Cooling capacity (lt/h) Max continuous cooling capacity (lt) Water 5° - 12° C * temperature Cooling Aluminium Fusion Ice bank - single Ice bank - double...
  • Page 24 Technical BLUBAR FS 80 BLUBAR FS 150 data sheet Cooling capacity (lt/h) Max continuous cooling capacity (lt) Water 5° - 12° C * temperature Cooling Ice bank - single coil Ice bank - double coil technology Ice bank capacity (lt)

  • Page 25: Installation

    Installation Unpacking Remove the two plastic tape. Lift the internal cardboard box up and out of the cage. Carefully check that the watercooler has not been damaged during transport. Any signs of damage must be reported to the Agent immediately. If the watercooler has been transported in a horizontal or inclined position, a wait of 8 hours is needed before turning it on so...

  • Page 26: Siting The Unit

    Siting the unit Wear safety gloves when handling the unit. The unit must be handled by two people. Site the unit away from sources of heat. Do not place on inclined surfaces. Leave at least 10 cm around the unit to allow for aeration.

  • Page 27: Connection To The Mains Wa- Ter Supply

    Connection to the mains wa- ter supply CAUTION! To connect the water cooler to the mains water supply, you will need to use a new set of connectors (joints, gaskets and pipes). Do not use a set of connectors that has already been used elsewhere.

  • Page 28: Electrical Connection

    Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the power cable (1) to a socket Turn the unit on by selecting the “I” position on the main on/off rocker switch (2).
  • Page 29 Installation of the CO cylinder (FIZZ model) Once the unit is connected to the mains water and electricity, and the ice-bank tank has been filled, you can install the E290 food-grade carbon dioxide (CO ) cylinder. Connect the cylinder through the pressure reducer (only included in mod.

  • Page 30: Handling The Gas Cylinders

    Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;...

  • Page 31: Sanitization - Notes

    This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization.

  • Page 32: Ordinary Maintenance

    Ordinary maintenance External cleaning of the unit Cleaning and user maintenance shall not be made by children without supervision To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel.

  • Page 33: Service History

    Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature...

  • Page 34: Warranty Conditions

    Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects.
  • Page 37 160300 - Rev. 00 - 02/10/2017 - 11:18...
  • Page 38 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
