- Page 1 ECOCHIC mod. IT, VOL, BEER TAP Before Install or use the product read to the precautions and general recommendations inside.
- Page 3 Precautions and general recommendations This appliance is intended to be used in household and similar applications such. Appliance for internal use only. Place the unit away from water jets. Always connect the water cooler to a water main that supplies drinking water only.
-
Page 4: Table Of Contents
Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • CERTIFIED • ASSOCIATIONS • INTERNATIONAL AWARDS • DESCRIPTION OF THE UNIT • DESCRIPTION OF ECOCHIC BEER TAP FAUCETS • DESCRIPTION OF ECOCHIC IT/IT VOL KEYPAD • FUNCTIONS OF THE VOLUMETRIC KEYPAD •... -
Page 5: Before Installing The Water Cooler
Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in... -
Page 6: Recommendations For Safeguarding The Environment
Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE). -
Page 7: Certified
Certified See official list ANSI/UL 399 D.M. 174 rosso 032 c UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. -
Page 8: Associations
Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE... -
Page 9: Description Of The Unit

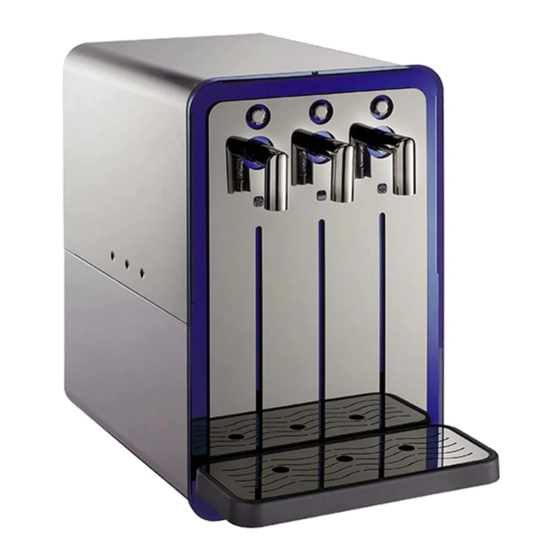

Description of the unit A new countertop water-cooler with an elegant, modern design, so cool. These are its main qualities: • A modern design using natural materials such as blue plexiglass, stainless steel and aluminium. • Highly insulated ice-bank for high volume supply of cold, still and sparkling water. - Page 10 Frontal view Sparkling water dispensing Removable top cover nozzle Drip tray with grid Cold water dispensing nozzle Room temperature water Adjustable feet dispensing nozzle...
- Page 11 Rear view ECOCHIC 150 ECOCHIC 80 Energy saving button (only IT VOL Drinking water inlet pipe joint model) (ø8mm) Ice bank inlet pipe joint (ø8mm) inlet pipe joint (ø8mm) Thermostat Power button Ice bank level Ice bank overflow...
-
Page 12: Description Of Ecochic Beer Tap Faucets
Description of ECOCHIC BEER TAP faucets Cold sparkling water Room temperature water Cold still water Pull forward the tap knob to start the dispensing process. Bring it back up to stop it. -
Page 13: Description Of Ecochic It/It Vol Keypad
ECOCHIC 150 IT model: the water supply is activated when you press the button. You can block the supply at any time by pressing the button again. ECOCHIC 80 IT model: the water supply is only activated while pressing the push-button. -
Page 14: Functions Of The Volumetric Keypad
Functions of the volumetric keypad The water cooler (VOL model) is equipped with a VOLUMETRIC dispensing system. The dispensing quantities are easily PROGRAMMABLE during installation. On turning on the unit, the default settings are as follows: the upper buttons dispense 200 ml of water (a cupful), whereas the lower buttons dispense 1000 ml (1 litre). - Page 15 “NO GAS” ALARM: This alarm is triggered when the CO pressure switch sends the NO GAS signal. In this case, the associated BLUE led L.1 starts to flash slowly and all of the dispensers continue to work as normal, but the carbonation is not optimal.
-
Page 16: Technical Features
Technical Features – Technical Data Plate [mod. Ecochic] 14 Year of manufacture 04 Month of manufacture 00311 Serial number... - Page 17 Technical Features - dimensions (mm) [mod. Ecochic 80] Dimensions ECOCHIC 80 - 80 FIZZ L x D x H (mm) 345 x 592 x 555 [mod. Ecochic 150] Dimensions ECOCHIC 150 - 150 FIZZ L x D x H (mm) 488 x 589 x 555...
- Page 18 Technical data sheet Ecochic 80 Ecochic 150 80 lt/h 150 lt/h Cooling capacity 45 lt 80 lt Max continuous dispensing Water temperature 5°-12°C * Single-coil ice bank Cooling system 15 lt 19 lt Tank capacity 5 kg 8 kg Ice bank Pump Professional rotary carbonation pump Single phase 230V-50Hz...
-
Page 19: Installation
Installation * Installation Fizz model. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. Unpacking Remove the two plastic tape and the internal packing. Carefully check that the unit has not been damaged during transport. - Page 20 Siting the unit Wear safety gloves when handling the unit. The unit must be handled by two people. Site the unit away from sources of heat. Do not place on inclined surfaces. Leave at least 10 cm around the unit to Fig.
- Page 21 Connection to the mains water supply CAUTION! To connect the water cooler to the mains water supply, you will need to use a new set of connectors (joints, gaskets and pipes). Do not use a set of connectors that has already been used elsewhere.
- Page 22 Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the power cord to a socket. Turn the unit on by selecting the “I” position on the main on/off rocker switch (1).
- Page 23 Open the machine To have access inside the water cooler, remove the top cover by unscrewing n.6 screws on the back side (Fig. 23.1) and n.1 screw on the top (Fig. 23.2). Pull back the top cover and move it up to remove it.
- Page 24 Installation of the CO cylinder (FIZZ model) Once the unit is connected to the mains water and electricity, and the ice-bank tank has been filled, you can install the E290 food-grade carbon dioxide (CO cylinder. The machine is NOT equipped with the pressure reductor, which must be ordered separately.
-
Page 25: Handling The Gas Cylinders
Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;... -
Page 26: Filtration (Optional)
Filtration (optional) Everpure 4C filter On request, the unit can be fitted with an Everpure 4C filter. MAIN FEATURES This filter removes the odour and flavour of chlorine and other contaminants that can alter the taste of the water. The Precoat microfiltration system removes impurities and particles with dimensions of 0.5 microns and above. - Page 27 1,2W 600V) on the water exit point to avoid backflow. On model ECOCHIC 150 it is possible to install also a sterilizing filter BLUPURA UVC IN QUARTZ 12W 150043 on the water entry point. The UV-C light emitted by a special 12W bulb –...
- Page 28 Replacement of the UV lamps The replacement can only be performed by qualified personnel. Disconnect the unit from its electrical source. Once the unit is shut down, open the top cover following the instructions of page 23 and unscrew the valves from their Fig.
-
Page 29: Sanitization – Notes
This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization. -
Page 30: Ordinary Maintenance
Ordinary maintenance External cleaning of the unit Cleaning and user maintenance shall not be made by children without supervision. To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel. -
Page 31: Service History
Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature... -
Page 32: Warranty Conditions
Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects. - Page 35 160113 - Rev. 00 - 02/10/2017 - 12:53...
- Page 36 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
