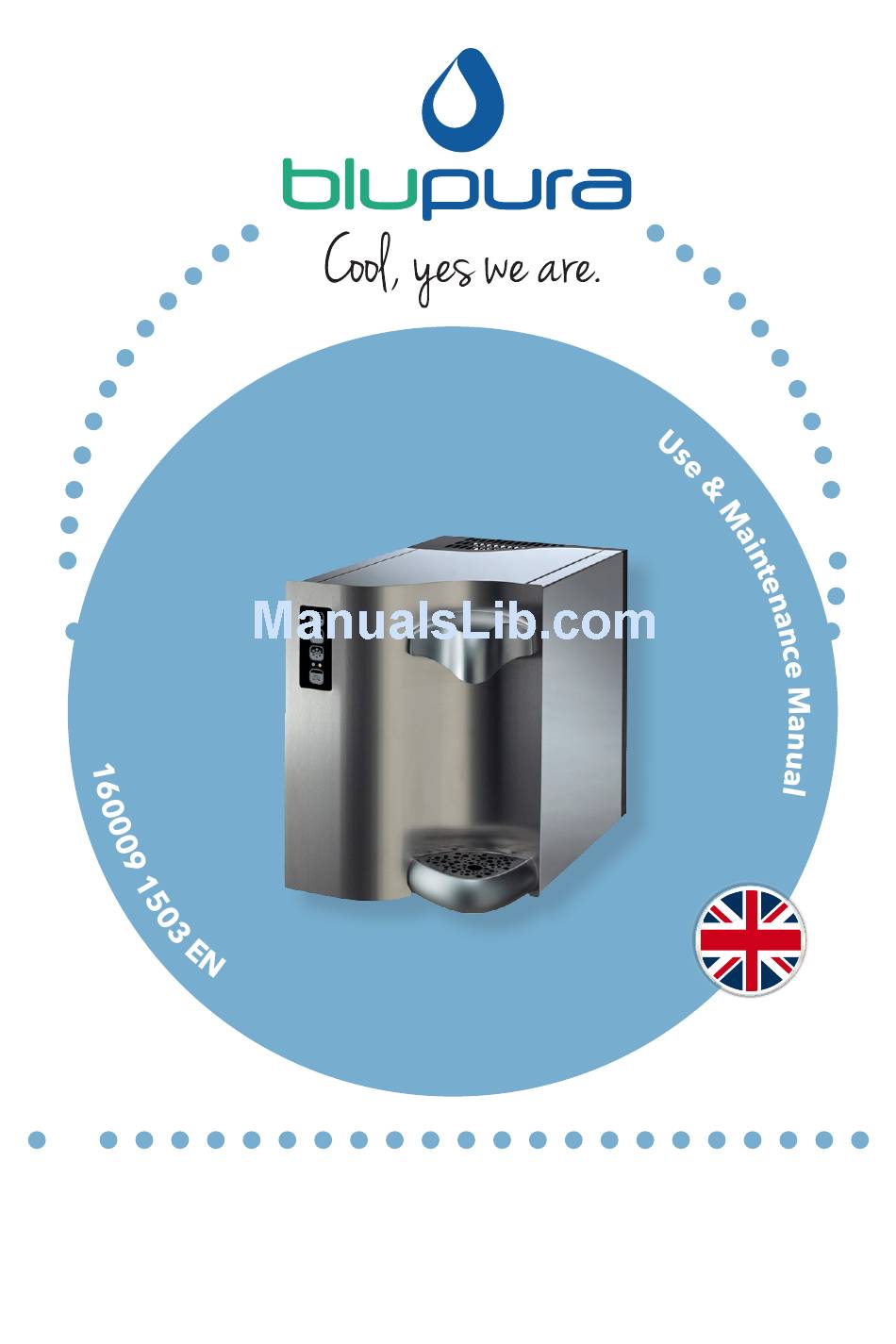

- Page 1 WAVE mod. Touch, I.T., Light...
-
Page 3: Table Of Contents
Index • BEFORE INSTALLING THE WATER COOLER • RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT • DECLARATION OF CONFORMITY • ASSOCIATIONS • INTERNATIONAL AWARDS • PRECAUTIONS AND GENERAL RECOMMENDATIONS • DESCRIPTION OF THE UNIT • DESCRIPTION OF THE TOUCH VOL AND I.T. VOL KEYPAD •... -
Page 4: Before Installing The Water Cooler
Before installing the water cooler Congratulations for choosing a BLUPURA product. We have designed and manufactured this product with great care to ensure that it will dispense water of the highest quality. In order to get the most out of your water cooler, please read the instructions in... -
Page 5: Recommendations For Safeguarding The Environment
Recommendations for safeguarding the environment Packaging materials The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children. Scrappage The water cooler is made using recyclable material. This unit is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). -
Page 6: Declaration Of Conformity
Declaration of conformity D.M. 174 UNI EN ISO 9001:2015 UNI EN ISO 14001:2015 rosso 032 c Materials compliant for contact with drinking water This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. -
Page 7: Associations
Associations International Awards 2015 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2015, ROME 2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE EUROPEAN AQUA AWARDS 2015, ROME 2014 - BEST PROMOTION OF HEALTH AND HYDRATION EUROPEAN AQUA AWARDS 2014, BUDAPEST 2013 - BEST PRODUCT INNOVATION EUROPEAN AQUA AWARDS 2013, BERLIN 2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE... -
Page 8: Precautions And General Recommendations
Precautions and general recommendations Always connect the water cooler to a water main that supplies drinking water only. Before each installation, the unit must be sanitized by an authorized technician. After installation, ensure that the unit is not resting on the power cable. -
Page 9: Description Of The Unit

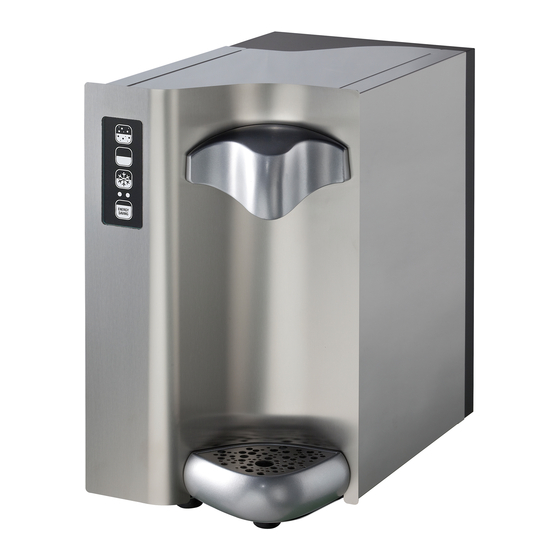

Description of the unit A new product designed with the highest level of quality, design and technology. The main features of the unit are as follows: • A modern design using natural materials • Highly insulated ice-bank, for greater energy saving •... - Page 10 External Front View Safety lock Front Door Drip Tray Grid Removable Top Cover Drip Touch control keypad Draft protection...
- Page 11 Internal Frontal View Ice bank inlet pipe joint Ø5/16” General switch (8 mm) Inlet safety valve with check Adjustable thermostat valve and mechanical filter Ø5/16” (8 mm) Exit water solenoid valve Ice bank drainage pipe inlet pipe Ø5/16” (8 mm) Removable exit water pipe...
- Page 12 Rear View ENERGY SAVING button (only I.T. Support feet VOL model) IEC inlet power cord...
-
Page 13: Description Of The Touch Vol And I.t. Vol Keypad
Description of the TOUCH VOL and I.T. VOL keypad Fig. 13.1 - TOUCH keypad Fig. 13.2 - I.T. VOL keypad Fig. 13.3 - Rear view Cold sparkling water dispensing button (only FIZZ model) Room-temperature water dispensing button Cold still water dispensing button ENERGY SAVING button (on the back in I.T. -
Page 14: Functions Of The Volumetric Keypad
Functions of the volumetric keypad * Functions of the“Touch Control” keypad. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. The TOUCH VOL watercooler is provided with a TOUCH SCREEN PANEL (Fig. 13.1) with 4 back-lit commands. - Page 15 small quantities or a LONG push for larger quantities. Press it again once you have reached the desired quantity. When the limit for the button has been set, the corresponding LED (TOUCH VOL mod.) or the BLUE led L.2 (I.T. VOL mod.) stays on.
-
Page 16: Functions Of The Touch Keypad
Functions of the TOUCH keypad The TOUCH watercooler is provided with a TOUCH SCREEN PANEL (Fig. 13.1) with 4 back-lit commands. 3 commands control the supply of water, 1 controls the stand-by (ENERGY SAVING function). (P.4) When the appliance is turned on an automatic visual test of the ALARM LED (L.1) lights up in sequence followed by the supply commands (P.1 –... -
Page 17: Functions Of The Light I.t. And Light Keypads
Functions of the LIGHT I.T. and LIGHT keypads Fig. 17.2 - LIGHT keypad Fig. 17.1 - LIGHT I.T. keypad The watercooler (LIGHT I.T. and LIGHT models) is provided with a mechanical button keypad. BUTTON FUNCTIONS: - SPARKLING WATER DISPENSER button (P.1) - ROOM-TEMPERATURE WATER DISPENSER button (P.2) - COLD WATER DISPENSER button (P.3) The water is dispensed while pressure is being applied to the button. -
Page 18: Technical Features
Technical Features – Technical Data Plate [mod. Wave] 10 Year of manufacture 10 Month of manufacture 00067 Serial number... - Page 19 Technical Features - dimensions (mm) [mod. Wave] Dimensions WAVE 30 WAVE 60 WAVE 80 LxDxH (mm) 330x489x467 330x599x467 272x453x467 SE NON SPECIFICATO: QUOTE IN MILLIMETRI FINITURA SUPERFICIE: TOLLERANZE: LINEARE: ANGOLARE: NOME FIRMA DISEGNATO VERIFICATO APPROVATO FATTO QUALITA'...
-
Page 20: Technical Data
Technical data WAVE 30 WAVE 60 WAVE 80 sheet Cooling capacity 30 lt/h 60 lt/h 80 lt/h Max Continuous cooling 6 lt 18 lt 45 lt capacity Water temperature 5°-10°C * Ice bank — single stainless steel coil Cooling technology Ice bank capacity 4 lt 7 lt... -
Page 21: Installation
Installation * Installation Touch model. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. * Installation Light model. All of the operations must be carried out exclusively by qualified technical personnel. To view the video tutorial, scan the QR code. - Page 22 Siting the unit Wear safety gloves when handling the unit. Take care when touching the metal parts, which could be sharp. Site the unit away from sources of heat. Leave at least 10 cm around the unit to allow for aeration. Fig.
-
Page 23: Water Supply
Connection to the mains water supply Caution! To connect the water cooler to the mains water supply, you will need to use a new set of connectors (joints, gaskets and pipes). Do not use a set of connectors that has already been used elsewhere. -
Page 24: Electrical Connection
Electrical connection The connections must comply with local regulations. The grounding of the unit is a legal requirement. Connect the power cord to the IEC inlet (1) and to a socket. Turn the unit on by selecting the “I” position on the main on/off rocker switch (2). -
Page 25: Installation Of The Co2 Cylinder (Fizz Model)
Installation of the CO2 cylinder (FIZZ model) Once the unit is connected to the mains water and electricity, and the ice-bank tank has been filled, you can install the E290 food-grade carbon dioxide (CO cylinder. The machine is NOT equipped with the pressure reductor, which must be ordered separately. -
Page 26: Handling The Gas Cylinders
Handling the gas cylinders All of the cylinders must be fitted with a valve protector cap, which must be on tight at all times when the cylinder is not in use. Valve connection The cylinders must be handled with care. It is essential to avoid: clashes with other cylinders or surfaces;... -
Page 27: Filtration (Optional)
Filtration (optional) AC Filter On request, the unit can be fitted with an Everpure AC filter. MAIN FEATURES This filter removes the odour and flavour of chlorine and other contaminants that can alter the taste of the water. The Precoat microfiltration system removes impurities and particles with dimensions of 0.5 microns and above. - Page 28 QUARTZ 4W Wave/Ecochic 150068 (Max lamp rating 1,2W 600V) on the water exit point to avoid backflow contamination and a sterilizing filter BLUPURA UVC IN QUARTZ 12W 150043 on the water entry point. The UV-C light emitted by the special 12W...
-
Page 29: Sanitization – Notes
This operation must be carried out by the BLUPURA Reseller or by qualified technical personnel who have completed specific training courses on hygiene and sanitization. -
Page 30: Ordinary Maintenance
Ordinary maintenance External cleaning of the unit To clean the unit, use the BLUSTEEL ULTRAMICROFIBRA cloth (code 190094), which is specifically designed for our products. Alternatively, you can use a soft cloth and a dedicated product for the cleaning of stainless steel. To remove limescale, use a slightly acidic product (e.g. -
Page 31: Service History
Service history Installation Technician Date Notes Signature Maintenance Technician Date Notes Signature... -
Page 32: Warranty Conditions
Warranty conditions This unit is guaranteed by BLUPURA for a period of two years from the date of purchase. The warranty entitles the owner to the free-of-charge repair of the unit by our company or the free-of-charge replacement of any parts that have been shown to have manufacturing defects. - Page 35 160009 - Rev 01 - 23/04/2016 - 11:59...
- Page 36 Blupura srl - Registered office - Via F.lli Brancondi, 56 60025 Loreto (AN) Italy - Headquarters - Via Erideo Marinucci, 2/4 62019 Recanati (MC) Italy Tel +39 071 9710080 Fax +39 071 9710084 info@blupura.com www.blupura.com...
