Summary of Contents for SnoMaster SMBC-200SL

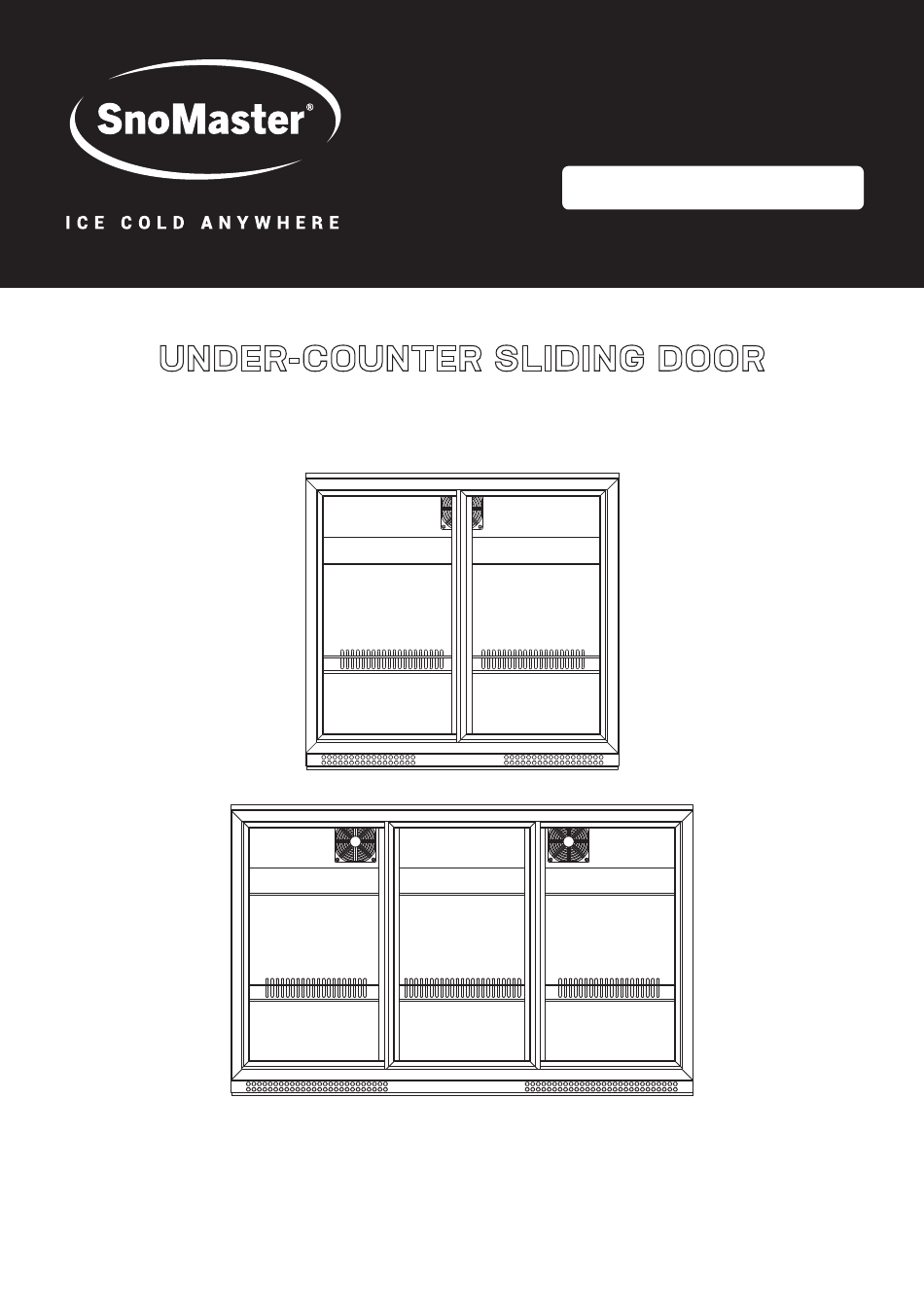

- Page 1 USER MANUAL AND PRODUCT SPECIFICATIONS BEVERAGE COOLERS MODELS: SMBC-200SL SMBC-300SL...
-
Page 3: Table Of Contents
CONTENTS WARRANTY, SERVICE AND SUPPORT Warranty Registration Service and Support IMPORTANT SAFETY INFORMATION Before Using Your Appliance Critical Safety Information STRUCTURE AND INSTALLATION Accessories and Structure CONTROL PANEL DEFAULT SETTINGS VALUE OPERATION PROCEDURE CLEANING AND MAINTENANCE TROUBLESHOOTING... -
Page 4: Warranty, Service And Support
WARRANTY WARRANTY ON COMPRESSOR ON THE UNIT THANK YOU FOR PURCHASING YOUR SNOMASTER UNDER-COUNTER SLIDING DOOR BEVERAGE COOLER WARRANTY, SERVICE AND SUPPORT This product is warranted for 5 years on the compressor, 3 years on the unit and 1 year on all parts not listed from the date of purchase. -
Page 5: Important Safety Information
• Please unplug the appliance or disconnect the power before performing any cleaning, maintenance, or servicing. • If the appliance power supply cord is damaged, it must be replaced by SnoMaster, its approved agents, or a similarly qualified person to prevent any hazard. - Page 6 • It is recommended that the circuit breaker size should be no more than 20 amps. • This appliance operates on a single-phase voltage of 220-240V/50Hz, to avoid electrical surges, it is advised to use a surge protector plug. • Cleaning and maintenance should be supervised by adults, especially if children are involved.
-
Page 7: Product Features
INTERIOR LED LIGHT | INTERNAL DIGITAL THERMOSTAT | ADJUST- ABLE METAL SHELVES SPECIFICATIONS: SPECIFICATIONS: SMBC-200SL: 200L UNDER-COUNTER SLIDING DOOR BEVERAGE COOLER • Dimensions (mm) Unit: (H) 850 (L) 900 (W) 526 • Dimensions (mm) Packaged: (H) 920 (L) 985 (W) 575 •... -
Page 8: Installation Instructions
150mm on all sides. ACCESSORIES INCLUDED METAL DISPLAY SHELF CLIPS SHELVES LIST PER MODEL SMBC-200SL SMBC-300SL • 4 x Metal Display • 6 x Metal Display • 16 x Shelf Clips • 24 x Shelf Clips... -
Page 9: Moving The Shelves
TO AVOID ELECTRICAL SURGES, IT IS ADVISED TO USE A SURGE PROTECTOR PLUG. Please note that this must be purchased separately and does not come with the appliance. STRUCTURE SMBC-200SL Digital Thermostat Internal Circulating Fan Recessed Door Handles Metal Shelves... -
Page 10: Control Panel
CONTROL PANEL The digital thermostat can be found inside the appliance. TEMPERATURE COMPRESSOR TEMPERATURE UP BUTTON SET BUTTON ‘ON’ LED DISPLAY LED INDICATOR INDICATOR LED LIGHT MANUAL °C / °F DOWN BUTTON ON/OFF BUTTON DEFROST ‘ON’ DISPLAY LED (MANUAL DEFROST) LED INDICATOR INDICATOR LED DISPLAY PANEL LEGEND... -
Page 11: Control Panel Buttons
CONTROL PANEL BUTTONS • The Digital Thermostat will automatically display the current temperature of the appliance. To display target set point, in programming mode it selects a parameter or confirms an operation. (UP) In programming mode it browses the parameter codes or increases the displayed value. -
Page 12: Default Setting Values
DEFAULT SETTING VALUES DEFAULT CODE CODE NAME DESCRIPTION RANGE Set point Cut-out temperature -55 to 99 °C; -67 to 99 °F Differential Differential for set point. 0.1 to 25°C; Compressor is Cut in when 1 to 45°F the temperature reaches ≥ the set point (SP)+differential (dF). - Page 13 DEFAULT SETTING VALUES DEFAULT CODE CODE NAME DESCRIPTION RANGE Resolution Only for °C, dE= decimal dE / in between -9.9 and 9.9°C; in= integer Display When the temperature 0 to 15min delay increases, the display is updated of 1 °C/1°F after this time Interval Determines the time...
-
Page 14: Operation Procedure
OPERATION PROCEDURE • Connect the appliance to a dedicated power source. • Viewing the Set Temperature: To check the set temperature of the appliance, short press the button to display the set temperature. The display will automatically return to the current / ambient temperature after 5 seconds. -
Page 15: Food Storage
• Manual Defrost: Long press the for 5 seconds to start the manual defrost process. The indicator will remain on during the defrost process. Note: Manual defrost resets the automatic defrost timer. The next automatic defrost will start according to the set parameter. INTERNAL CLEANING •... - Page 16 Should you experience any issues with your appliance and the below troubleshooting tips do not resolve the fault experienced, kindly contact SnoMaster Service Department or your nearest accredited Service Agent: PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Appliance is not • Check if the appliance is correctly switched on.
- Page 17 PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Smell/Odour • Check for spillages on each shelf/drawer. You may need to remove the shelves/drawers to check that no spillages have settled underneath them. • Double check if all foods and drinks in the appliance have not expired.
- Page 18 PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Compressor runs • The appliance has leaked or the system may be but the interior is blocked, please contact a service agent. not getting cold The digital display • Check that the appliance is correctly switched is not turning on •...
- Page 20 CAPE TOWN LIFESTYLE CENTRE CENTRE & SERVICE CENTRE & SERVICE CENTRE 49 Koornhof Road 31 Stella Road Meadowdale Montague Gardens Germiston, 1614 Cape Town, 7441 011 392 5315 / 3147 021 100 5695 info@snomaster.co.za info@snomaster.co.za snomaster.co.za @SnoMasterSA SnoMaster SA snomaster_south_africa @SnoMaster...
