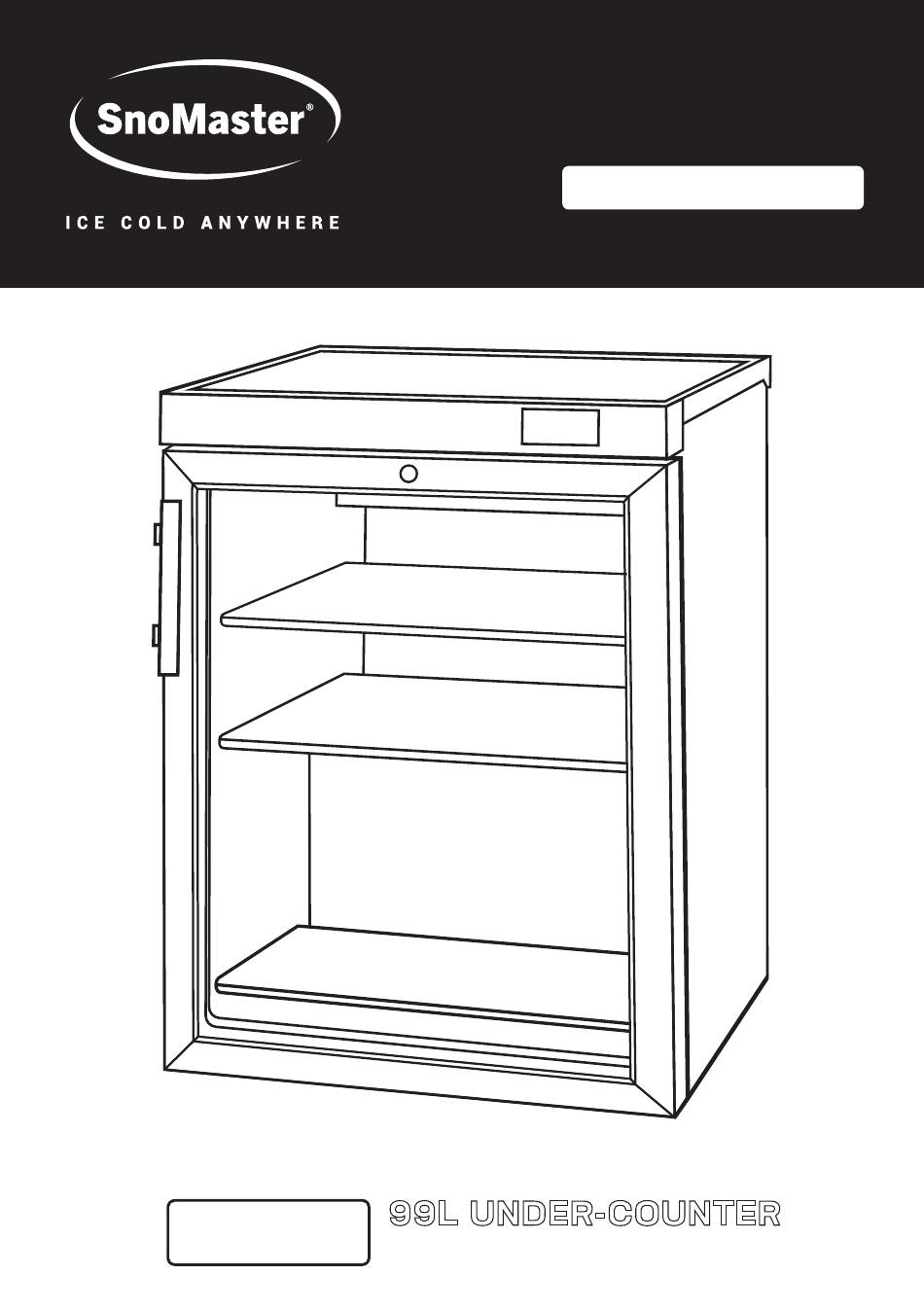

- Page 1 USER MANUAL AND PRODUCT SPECIFICATIONS SM-220 BEVERAGE COOLER...
-
Page 3: Table Of Contents
CONTENTS WARRANTY, SERVICE AND SUPPORT Warranty Registration Service and Support IMPORTANT SAFETY INFORMATION Before Using Your Appliance Critical Safety Information For Your Safety STRUCTURE AND INSTALLATION Accessory Installation Before Operating MAINTENANCE Cleaning the Interior Cleaning the Exterior FOOD STORAGE ENERGY SAVING TIPS TROUBLESHOOTING... -
Page 4: Warranty, Service And Support
WARRANTY WARRANTY ON COMPRESSOR ON THE UNIT THANK YOU FOR PURCHASING THE SNOMASTER SM-220, 99L UNDER-COUNTER BEVERAGE COOLER WARRANTY, SERVICE AND SUPPORT This product is warranted for 5 years on the compressor, 3 years on the unit and 1 year on all parts not listed from the date of purchase. -
Page 5: Important Safety Information
• Please unplug the appliance or disconnect the power before performing any cleaning, maintenance, or servicing. • If the appliance power supply cord is damaged, it must e replaced by SnoMaster, its approved agent, or a similarly qualified person to prevent any hazard. - Page 6 • It is recommended that the circuit breaker size should be no more than 20 amps. • This appliance operates on a single-phase voltage of 230V/50Hz, to avoid electrical surges, it is advised to use a surge protector plug. • Cleaning and maintenance should be supervised by adults, especially if children are involved.
-
Page 7: Product Features
PRODUCT FEATURES WHITE CABINET WITH TEMPERED GLASS DOOR | REVERSIBLE DOOR | DOOR LOCK | DOOR OPEN ALARM | EXTERNAL DIGITAL THERMOSTAT | FAN ASSISTED COOLING | POWDER COATED SHELVES | AUTOMATIC DEFROSTING | 2 FRONT ADJUSTABLE FEET AND 2 REAR ROLLERS SPECIFICATIONS: •... -
Page 8: Accessories Included
ACCESSORIES INCLUDED 1 x DOOR 1 x DOOR 3 x DISPLAY HANDLE LOCK & KEYS SHELF SURGE PROTECTOR PLUG TO AVOID ELECTRICAL SURGES, IT IS ADVISED TO USE A SURGE PROTECTOR PLUG. Please note that this must be purchased separately and does not come with the unit STRUCTURE Door Handle Door Lock... -
Page 9: Operation Procedure
OPERATION PROCEDURE CONTROL PANEL To display target set point, in programming mode it selects a parameter or confirms an operation. (UP) In programming mode it browses the parameter codes or increases the displayed value. (DOWN) In programming mode it browses the parameter codes or decreases the displayed value. - Page 10 LED DISPLAY PANEL LEGEND Mode: On - Compressor Enabled Mode: Flashing - Anti-short Cycle Delay Enabled Mode: On - Defrost In Progress Mode: On - Measurement Unit Mode: Flashing - Programming Mode Mode: On - Measurement Unit Mode: Flashing - Programming Mode HOW TO SET THE SET POINT •...
-
Page 11: Alarm Signalling
HOW TO A PARAMETER VALUE • To change any parameter value, operate as follows: • Enter the Programming mode by pressing the SET+DOWN buttons for 3 sec (“° C” or “° F” LED starts blinking). • Select the required parameter by pressing UP or DOWN. Press the SET button to display its value. -
Page 12: Alarm Recovery
ALARM RECOVERY Probe alarms “P1” start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation. Check connections before replacing the probe. Temperature alarms ”HA”, “LA”, automatically stop as soon as the temperature returns to normal values. - Page 13 DEFAULT SETTING VALUES DEFAULT CODE CODE NAME DESCRIPTION RANGE GLASS DOOR Anti-short Minimum interval between 0 to 50min cycle delay the compressor stop and the following restart. Compressor Time during which the 0 to 99min ON time compressor is active in case with faulty of faulty thermostat probe.
- Page 14 DEFAULT SETTING VALUES DEFAULT CODE CODE NAME DESCRIPTION RANGE GLASS DOOR Minimum When this temperature is -55°C to AH; temperature reached, the alarm is enabled -67°F to AH alarm after the “A1” delay time. Temperature Time interval between the 0 to 99min alarm delay detection of an alarm condition and alarm signalling.
- Page 15 HOW TO REVERSE DOOR The appliance door can be changed from right hinged to left hinged, or vica versa as follows: 1 Remove the top cover of the appliance and install the upper right hinge shaft and lower right hinge to the left position 2 Move the door handle from the left side of the door frame to the right side of the door frame.
-
Page 16: Maintenance
MAINTENANCE INTERNAL CLEANING • Remove accessories from the appliance. Accessories can be cleaned separately with soap and water. Do not put them in the dishwasher. • Do not sue any abrasive materials or detergents. • After washing, rinse with clean water and dry carefully. •... -
Page 17: Energy Saving Tips
• Do not set the thermostat on excessive cold temperatures. TROUBLESHOOTING Should you experience any issues with your appliance and the below troubleshooting tips do not resolve the fault experienced, kindly contact SnoMaster Service Department or your nearest accredited Service Agent: PROBLEM... - Page 18 TROUBLESHOOTING PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE The appliance turns on, • The ambient temperature might be too high, try however, the temperature moving the appliance to a cooler part of the room is too high/low away from any heat sources, ensuring there is su cient air ow to the condenser.
- Page 19 CAPE TOWN LIFESTYLE CENTRE CENTRE & SERVICE CENTRE & SERVICE CENTRE 49 Koornhof Road 31 Stella Road Meadowdale Montague Gardens Germiston, 1614 Cape Town, 7441 011 392 5315 / 3147 021 100 5695 info@snomaster.co.za info@snomaster.co.za snomaster.co.za @SnoMasterSA SnoMaster SA snomaster_south_africa @SnoMaster...
