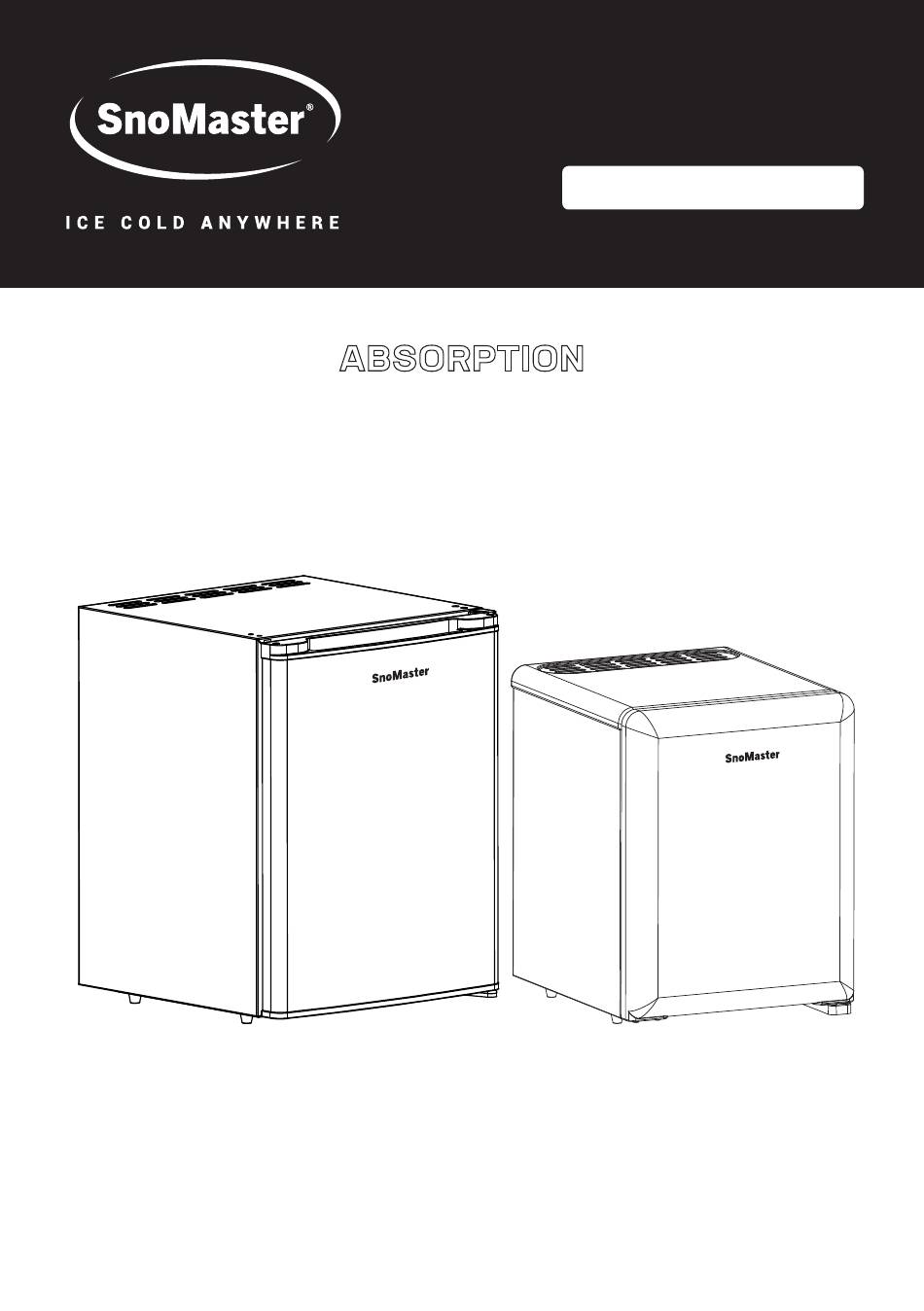

- Page 1 USER MANUAL AND PRODUCT SPECIFICATIONS MINIBAR COOLERS MODELS: SMBC-30A SMBC-60A...
-
Page 2: Table Of Contents
CONTENTS WARRANTY, SERVICE AND SUPPORT Warranty Registration Service and Support IMPORTANT SAFETY INFORMATION Before Using Your Appliance Critical Safety Information PRODUCT FEATURES INSTALLATION INSTRUCTIONS OPERATING PROCEDURE TROUBLESHOOTING... -
Page 3: Warranty, Service And Support
THANK YOU FOR PURCHASING YOUR SNOMASTER ABSORPTION MINIBAR COOLER WARRANTY, SERVICE AND SUPPORT This product is warranted for 2-years from the date of purchase. Warranty does not cover products that have not been used in accordance with the user guide or are outside the warranty terms and conditions, which can be found at the following url: https://snomaster.co.za/warranty/... -
Page 4: Important Safety Information
• Please unplug the appliance or disconnect the power before performing any cleaning, maintenance, or servicing. • If the appliance power supply cord is damaged, it must be replaced by SnoMaster, its approved agents, or a similarly qualified person to prevent any hazard. - Page 5 • It is recommended that the circuit breaker size should be no more than 20 amps. • This appliance operates on a single-phase voltage of 220-240V/50Hz, to avoid electrical surges, it is advised to use a surge protector plug. • Cleaning and maintenance should be supervised by adults, especially if children are involved.
-
Page 6: Product Features
SLIDING METAL SHELVES | ADJUSTABLE BEVERAGE CAN RACKS INSIDE DOOR | INTERNAL LED LIGHT SPECIFICATIONS: SMBC-30A: 28L ABSORPTION MINIBAR COOLER • Dimensions (mm) Unit: (H) 532 (L) 410 (W) 476 • Dimensions (mm) Packaged: (H) 555 (L) 460 (D) 510 •... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before installing your new appliance, please read all safety instructions in this manual and follow the installation instructions below: • Remove the appliance from the box, ensure all packaging materials, stickers and films are removed from the product. Clean the appliance’s surfaces with a mild detergent and a damp cloth before initial use. -
Page 8: Installation Diagram
MANUAL THERMOSTAT AND LAMP ADJUSTABLE BEVERAGE CAN RACKS ADJUSTABLE LEVELLING FEET 1 X GLASS SHELF (SMBC-30A) 2 X METAL SHELVES (SMBC-60A) ACCESSORIES INCLUDED 1 x GLASS DISPLAY SHELF (SMBC-30A) 2 x ADJUSTABLE BEVERAGE 2 x METAL DISPLAY SHELVES (SMBC-60A) CAN RACKS... -
Page 9: Operating Procedure
OPERATING PROCEDURE • Connect the power cable to a power source. • Adjust the temperature by turning the internal manual thermostat to the desired temperature. AUTOMATIC DEFROSTING • This appliance is equipped with an automatic defrosting system. The unit periodically melts frost that accumulates on the cooling elements, preventing frost build-up and maintaining optimal performance. -
Page 10: Reversing The Door
REVERSING THE DOOR • Using a screwdriver, remove the screws and take off the lower hinge of the door. • Carefully lift the door off the unit and set it aside. • Remove the two screws from the left top hinge position and take off the matal bracket. -
Page 11: Food Storage
• Do not set the thermostat on excessively cold temperatures. Should you experience any issues with your appliance and the below troubleshooting tips do not resolve the fault experienced, kindly contact SnoMaster Service Department or your nearest accredited Service Agent: PROBLEM... - Page 12 PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE Moisture forms on • Hot and humid weather usually in the coastal the inside/ outside locations increases the internal rate of walls of the condensation. This is normal. appliance • Set the temperature to a higher setting to avoid condensation.
- Page 13 CAPE TOWN LIFESTYLE CENTRE CENTRE & SERVICE CENTRE & SERVICE CENTRE 49 Koornhof Road 31 Stella Road Meadowdale Montague Gardens Germiston, 1614 Cape Town, 7441 011 392 5315 / 3147 021 100 5695 info@snomaster.co.za info@snomaster.co.za snomaster.co.za @SnoMasterSA SnoMaster SA snomaster_south_africa @SnoMaster...
