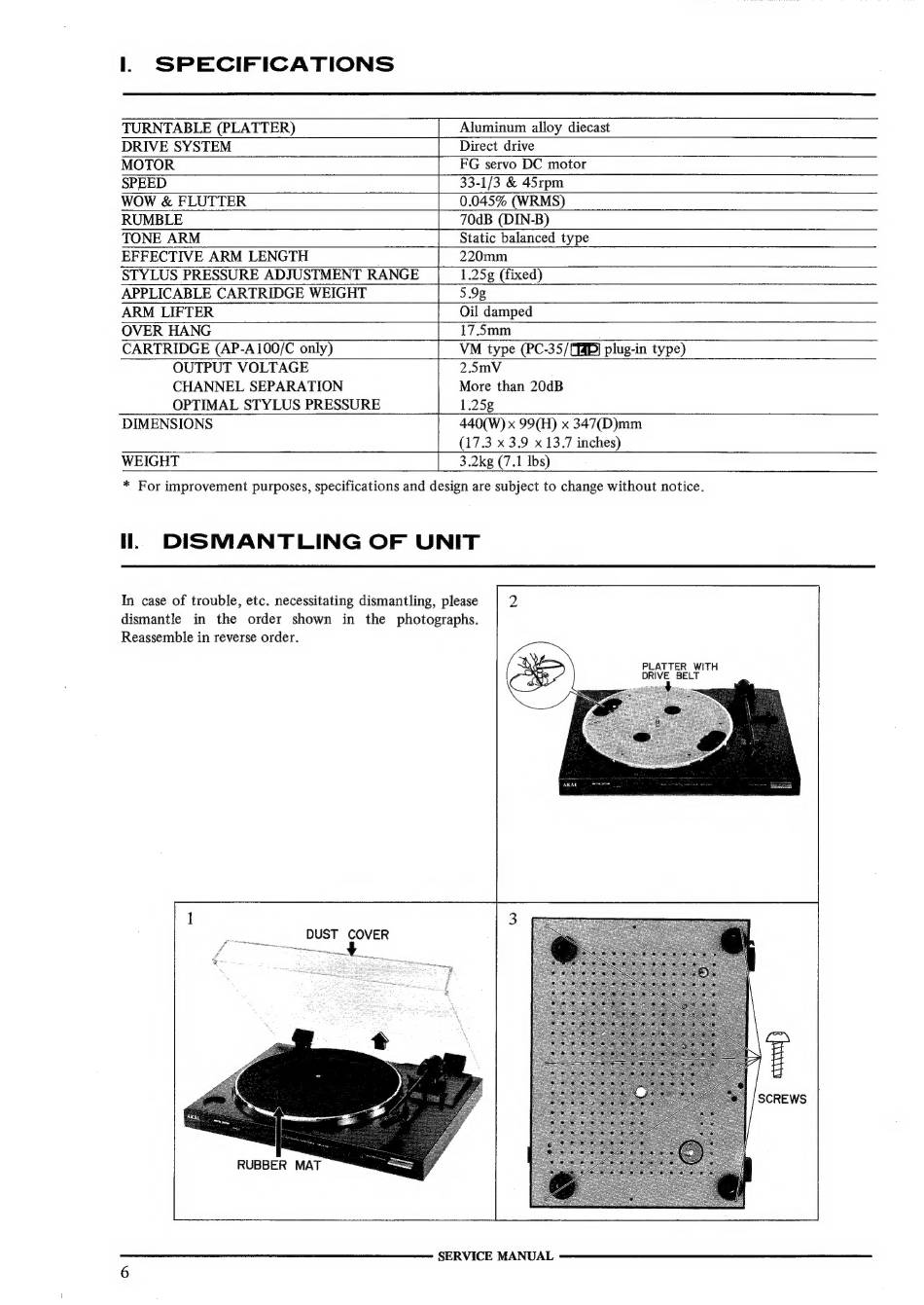

l SPECIFICATIONS
TURNTABLE (PLATTER)
DRIVE SYSTEM
Aluminum alloy diecast
Direct drive
MOTOR FG servo DC motor
SPEED 33-1/3 & 45rpm
WOW & FLUTTER 0.045% (WRMS)
RUMBLE 70dB (DIN-B)
TONE ARM Static balanced type
EFFECTIVE ARM LENGTH
STYLUS PRESSURE ADJUSTMENT RANGE
APPLICABLE CARTRIDGE WEIGHT
ARM LIFTER
OVER HANG
220mm
1.25g (fixed)
59g
Oil damped
17.5mm
CARTRIDGE (AP-A100/C only) VM type (PC-35/ plug-in type)
OUTPUT VOLTAGE 2.5mV
CHANNEL SEPARATION More than 20dB
OPTIMAL STYLUS PRESSURE 1.25g
DIMENSIONS 440(W) x 99(H) x 347(D)mm
(17.3 x 3.9 x 13.7 inches)
WEIGHT 3.2kg (7.1 Ibs)
* For improvement purposes, specifications and design are subject to change without notice.
i. DISMANTLING OF UNIT
In case of trouble, etc. necessitating dismantling, please
dismantle in the order shown in the photographs.
Reassemble in reverse order.
PLATTER WITH
DRIVE BELT
DUST COVER
RUBBER MAT
