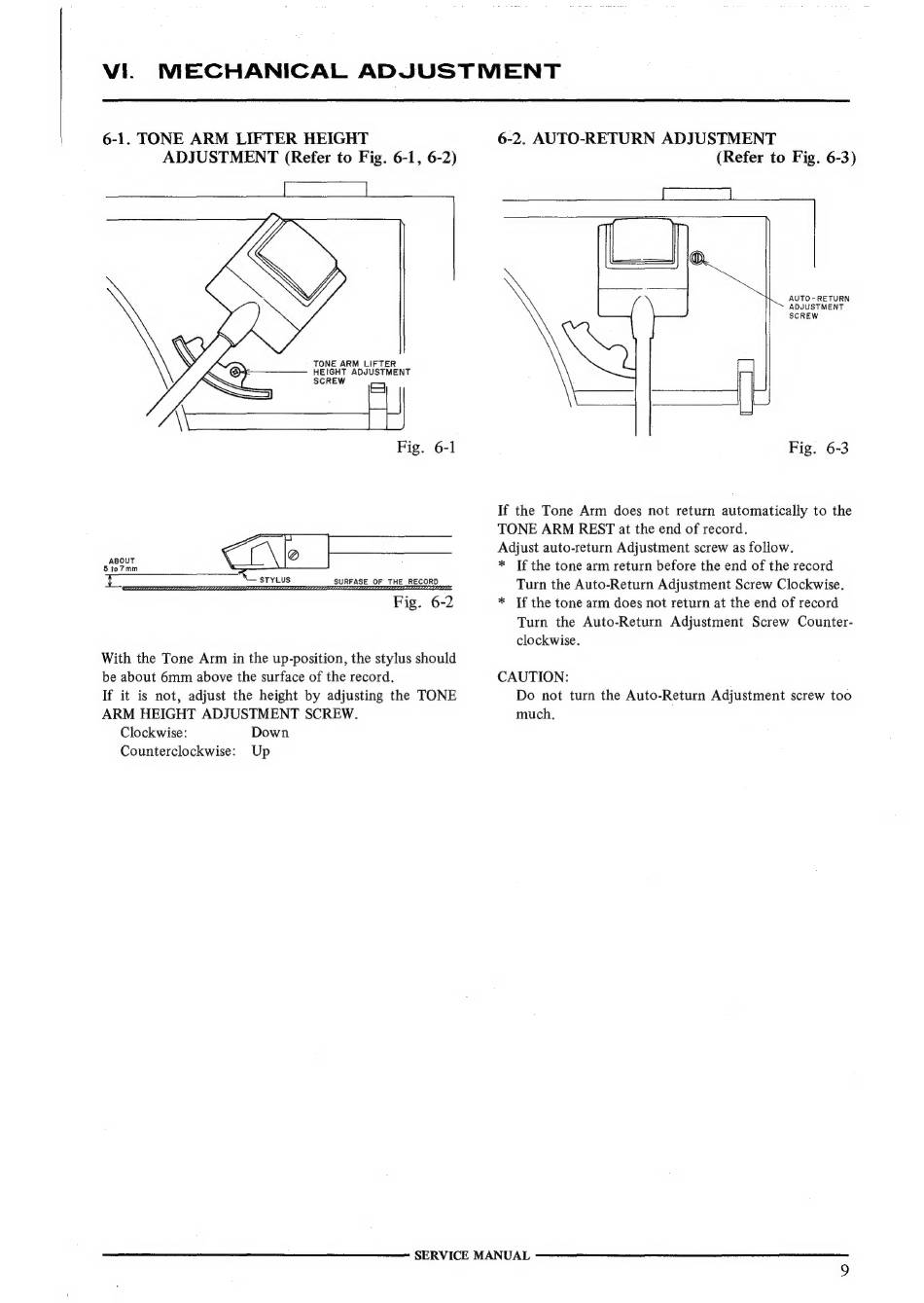

Vi. MECHANICAL ADJUSTMENT
6-1. TONE ARM LIFTER HEIGHT
ADJUSTMENT (Refer to Fig. 6-1, 6-2)
TONE ARM LIFTER
HEIGHT ADJUSTMENT
SCREW
=
Fig. 6-1
th
\— stytus SURFASE OF THE RECORD
Fig.
With the Tone Arm in the up-position, the stylus should
be about 6mm above the surface of the record.
If it is not, adjust the height by adjusting the TONE
ARM HEIGHT ADJUSTMENT SCREW.
Clockwise: Down
Counterclockwise: Up
SERVICE MANUAL
6-2. AUTO-RETURN ADJUSTMENT
(Refer to Fig. 6-3)
i.
I
AUTO- RETURN
ADJUSTMENT
SCREW
Fig. 6-3
If the Tone Arm does not return automatically to the
TONE ARM REST at the end of record.
Adjust auto-return Adjustment screw as follow.
* If the tone arm return before the end of the record
Turn the Auto-Return Adjustment Screw Clockwise.
* Tf the tone arm does not return at the end of record
Turn the Auto-Return Adjustment Screw Counter-
clockwise.
CAUTION:
Do not turn the Auto-Return Adjustment screw too
much.
