PoE Power Budget
Installation Guidelines
This section will discuss the hardware installation guidelines that the user must follow in
order to properly and safely install this switch into the appropriate environment.
• Visually inspect the power cord to see that it is secured fully to the AC power
connector.
• Make sure that there is proper heat dissipation and adequate ventilation around the
switch.
• Do not place heavy objects on the switch.
Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet must be attached on the
bottom at each corner of the device's base. Allow enough ventilation space between the
device and the objects around it.
Rack Installation
The switch can be mounted in an EIA standard size 19-inch rack, which can be placed in a
wiring closet with other equipment. To install, attach the mounting brackets to the switch's
side panels (one on each side) and secure them with the screws.
100% LED: Solid PoE power has reached 100%.
red
PoE power ≤ 75%.
75% LED: Solid
amber
PoE power ≤ 50%.
50% LED: Solid
green
PoE power ≤ 25%.
25% LED: Solid
green

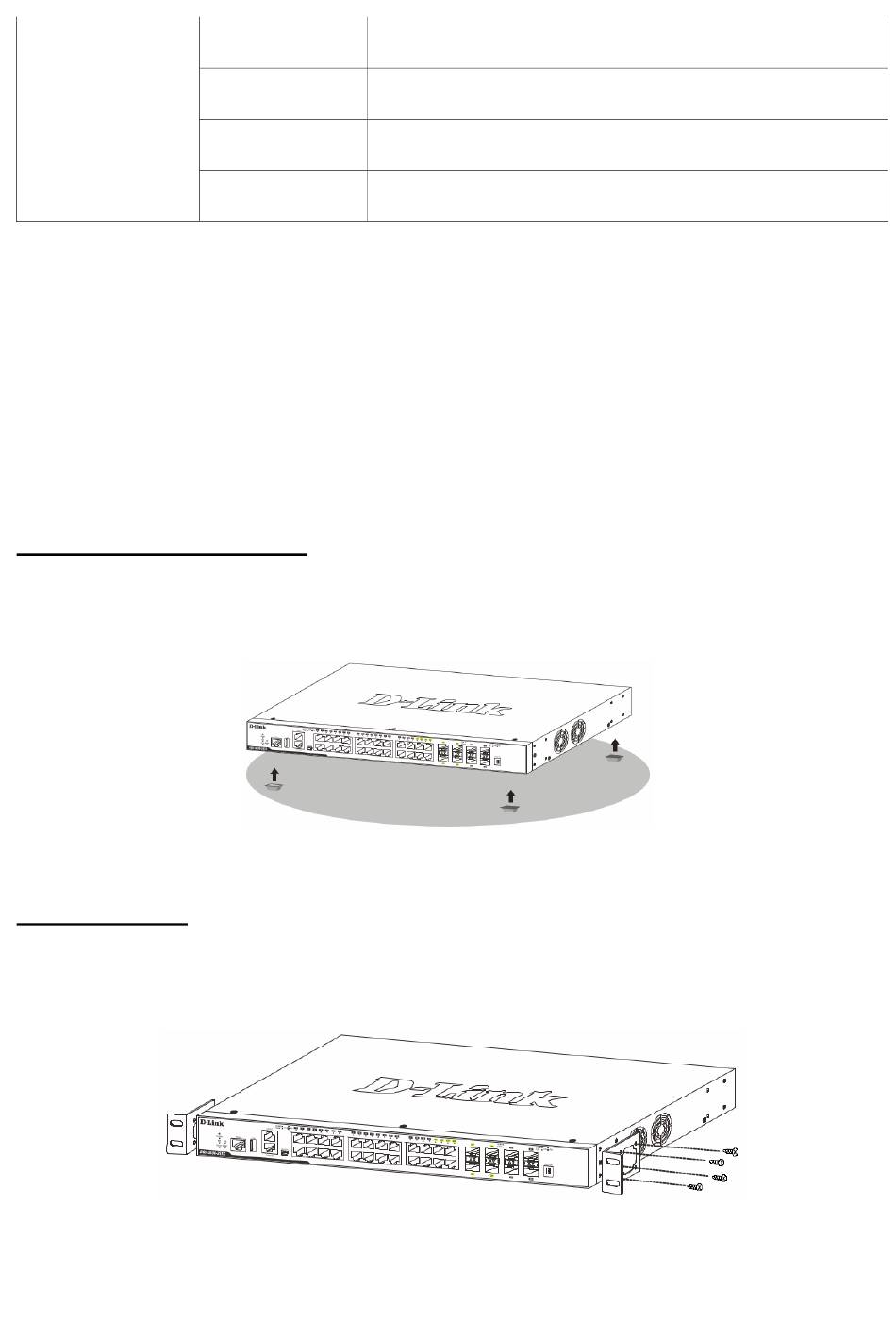

Figure 1 — Attaching rubber feet to the switch
Figure 2 — Attaching rack-mount brackets to the switch
