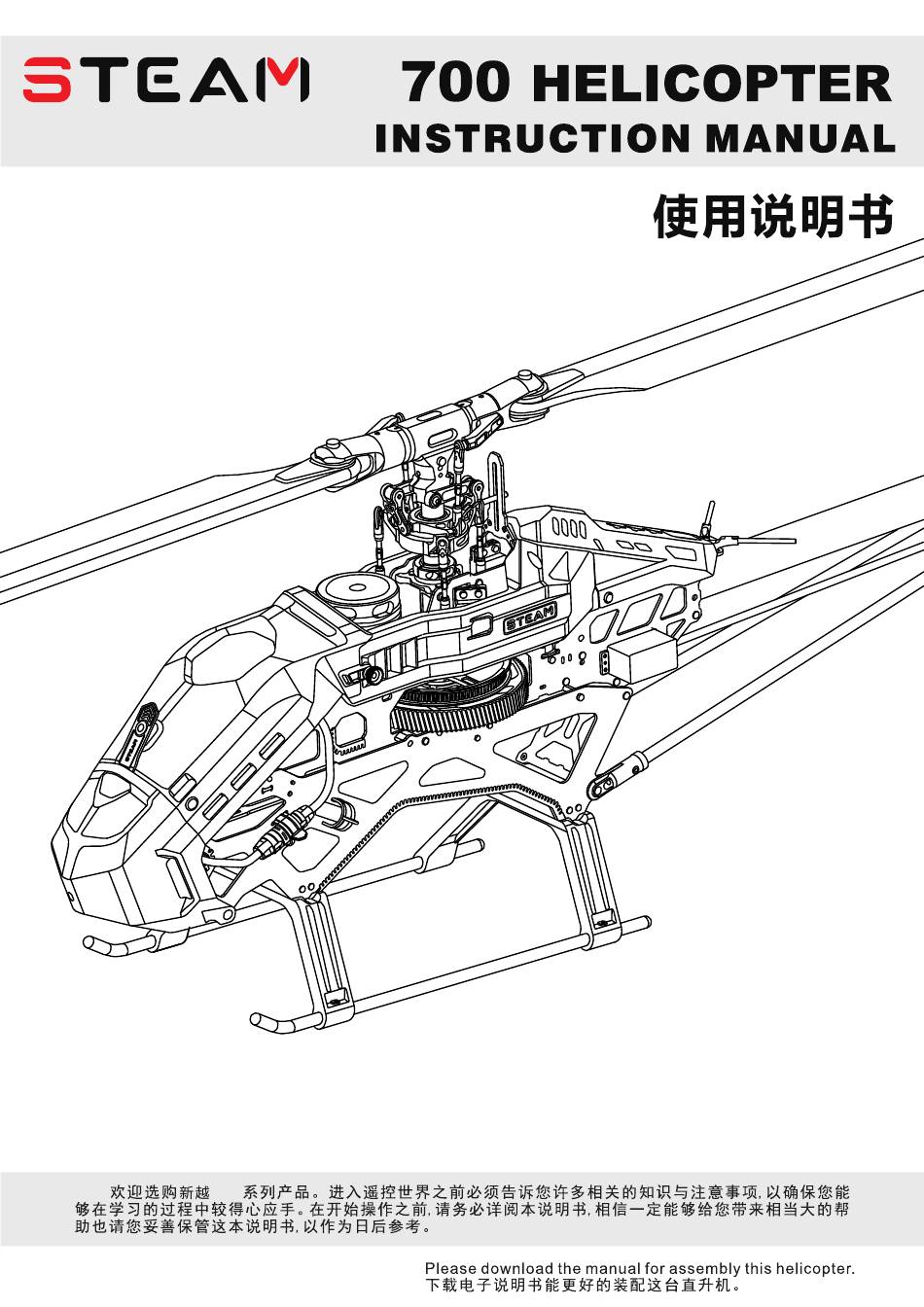

Thank you for buying Steam products.the Steam 700 helicoper is the latest technology in Rotary

RC models. Please read this manual carefully before assembling and ﬂying the new Steam 700

helicopter. We recommend that you keep this manual for future reference regarding tuning and

maintenance.

科创

Need help?

Do you have a question about the 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steam 700

Page 1 Thank you for buying Steam products.the Steam 700 helicoper is the latest technology in Rotary RC models. Please read this manual carefully before assembling and ﬂying the new Steam 700 helicopter. We recommend that you keep this manual for future reference regarding tuning and maintenance.
Page 2 STEAM STEAM STEAM XinYue STEAM STEAM STEAM STEAM STEAM STEAM STEAM STEAM 温州新越科创有限公司 WENZHOU XINYUE TECHNOLOGY INNOVATION CO.,LTD...
Page 3 新越温州新越科创有限公司 WENZHOU XINYUE TECHNOLOGY INNOVATION CO.,LTD...
Page 4 700 EQUIPMENT REQUIRED FOR ASSEMBLY Swashplate Leveler Ø5.0mm Ball Reamer Ø5.0 mm球头扩孔器 700 EQUIPMENT REQUIRED FOR ASSEMBLY 测扫齿损坏或组装不完整不仅影响飞行， When you see the marks as below,please use relative glue or grease to ensure flying safety. 标有以下符号的组装步骤，请配合上胶或上油，以确保锁紧零件使用的可靠度。 ( dditional) (自备) ( dditional) 680：Apply small amount of Bearing Glue to fix...
Page 5 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Use 600 mesh sandpaper (moistened with water) to polish the edges of all carbon plates. 使用600目砂纸(沾水)将所有碳板边缘进行打磨。 B6包 B3包 B3包 B6包 Package B6 Package B3 Package B3 Package B6 B3包 B3包 Package B3 Package B3 B3包...
Page 6 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock Thrust Bearing Thrust Bearing Thrust Bearing 止推?承止推?承止推轴承 when fixing a metal part. Apply Grease On Main Rotor Holder 所有螺丝锁紧金属件时请使用适量 271 Thrust Bearing 主旋翼夹座（螺丝胶）...
Page 7 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock when For original manufactory package, if the product is already fixing a metal part. assembled by factory,please check again if screws are firmly secured and applied with some glue.
Page 8 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Socket Screw 杯头内六角螺丝 M3x20mm Linkage rod ( F ) 连杆 F (M3x47mm) Hole Outward Linkage ball B (M3x4mm) 孔朝外球头(Ø5x10.8mm) Socket Screw Elevator Ball Link 杯头内六角螺丝升降臂连杆头 M3x20mm Socket Screw 杯头内六角螺丝 M3x8mm Linkage Rod (F) Approx.
Page 9 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock when fixing a metal part. 所有螺丝锁紧金属件时请使用适量 271 Socket Screw （螺丝胶）台阶内六角螺丝 Socket Screw Socket Screw M3x7.5mm 杯头内六角螺丝台阶内六角螺丝 Socket Screw M2.5x4mm M2.5x6.5mm 台阶内六角螺丝 M2.5x5.5mm Socket Screw Socket Screw 杯头内六角螺丝...
Page 10 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock when fixing a metal part. 所有螺丝锁紧金属件时请使用适量 271 （螺丝胶） CAUTION 注意 Socket Screw Inward 台阶内六角螺丝朝内 M3x7.5mm screws not tighten first. 螺丝先不要拧紧. Socket Screw 杯头内六角螺丝 M3x8mm Socket Screw 台阶内六角螺丝...
Page 11 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock Additional(Servo) when fixing a metal part. Anti-rotation bracket set 伺服器需自备所有螺丝锁紧金属件时请使用适量 271 十字盘导板组（螺丝胶） Side plate protective cover 侧板保护套 Approx. 12tooth Socket Screw 杯头内六角螺丝 Socket Screw M2.5x4mm...
Page 12 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Apply a little amount of 271 thread lock when fixing a metal part. 所有螺丝锁紧金属件时请使用适量 271 （螺丝胶） Socket Screw 台阶内六角螺丝 Socket Screw M3x7.5mm Socket Screw screws not tighten first. 台阶内六角螺丝台阶内六角螺丝螺丝先不要拧紧. M2.5x5.5mm M2.5x5.5mm Apply a little amount of 271 thread lock when fixing a metal part.
Page 13 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION Main Shaft 主轴 Ø15x189mm Screw installation around the bearing: First, insert the spindle through the three bearings of the fuselage to make the three bearings concentric, and conﬁrm that the upward and downward movement is smooth. Then, cross tighten the 12 screws in order (screws can be screwed in place), and conﬁrm that the upward and downward movement of the spindle is...
Page 14 600 ASSEMBLY SECTION 700 ASSEMBLY SECTION You can choose different installation methods of tail rotor holder thrust bearing and surface bearing(P20-Plan1和P20-Plan2). 尾浆夹止推轴承和平面轴承不同安装方式(P20-Plan1和P21-Plan2)自行选择。 P lan 1 Ø Ø Pls adjust the quantity of spacers (Ø 5Χ 8Χ0.3mm ,Ø 5Χ 8Χ0.5mm Rubber O-ring according to the actual tightness of the tail rotor.
Page 15 700 ASSEMBLY SECTION For original manufactory package , if the productis already assembled by factory , Set Screw please check again if screws are firmly 止洩螺丝 secured and applied with some glue. Μ4Χ4mm 原装零件出厂包装如果组装完毕,请需再确认各螺丝是否锁紧上胶。 Set Screw CAUTION 止洩螺丝注意...
Page 16 700 ASSEMBLY SECTION Tail Dive Belt Installation Diagram P15-1 P15-2 尾传动皮带安装示意图 Socket Screw 台阶内六角螺丝 Tail Fix Mount Μ2.5Χ5.5mm 尾固定连接座 Front 前 Back 后 Bearing 带边轴承(Ø6xØ13x5mm) Bearing Tall belt must have a 90 degree 带边轴承(Ø6xØ13x5mm) counterclockwise turn from the front tail assmbly to the rear tail assembly.
