Motorola 520 Quick Reference Card

Workstation 520™
Model F5203
Quick Reference Card

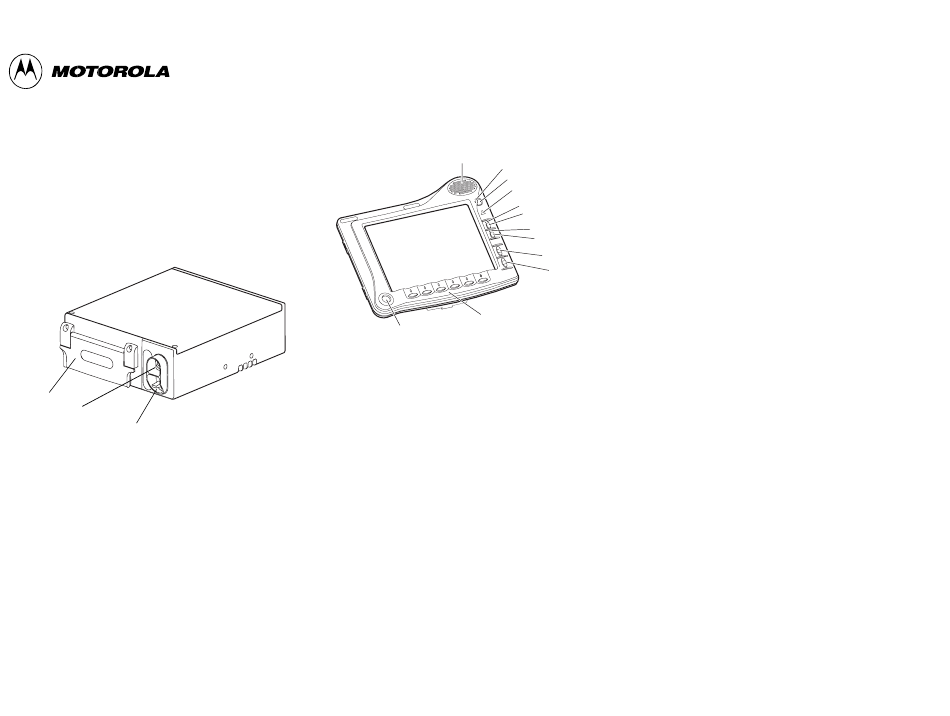

Processor
PC Card slot
Reset button
Main Power switch (on/off)
Main Power Connects/disconnects the MW-520 power
Switch supply from the vehicle's battery.
Reset Button Generates a hardware reset.
PC Card Slot Two covered PC Card slots.
Commercial, Government and
Industrial Solutions Sector
1303 E. Algonquin Road
Schaumburg, Illinois 60196
Mobile
Color Display
Emergency
Buttons
Power
Suspend/
Resume
Backlight
Brightness
Volume
User-defined
Emergency
Speaker
Power LED
Power
Temperature LED
Suspend/Resume LED
Suspend/Resume
Backlight LED
Backlight
Brightness
Volume
User-defined buttons
Turns the MW-520 on/off.
Toggles between Suspend and
Resume modes.
Toggles between backlight on/off.
Adjusts the on-screen light level
(32 continuous linear brightness
levels).
Adjusts the speaker's volume level.
PC standard function keys.
Special key for emergency.
LEDs
Power (green) On: System is powered on.
Blinks: The vehicle battery is
discharged.
Off: System is off or the terminal is
in Suspend mode.
Temperature Blinks: Processor or display unit
(red) temperature is out of range.
Suspend/ On: System is in Suspend mode.
Resume
(green)
Backlight On: LCD backlight is off.
(green) Blinks: Ignore this information.
Off: LCD backlight is on.
Powering On
NOTE: The Main Power switch must be ON.
Press the Power button on the MW-520 display. All
display buttons and LEDs will light for a period of
one second. The Power LED remains lit.
For ignition-sensitive workstations, insert the car key
into the ignition switch and rotate it to ACC position,
or start the engine, before powering on.
Restarting
Warm boot: Press <Ctrl+Alt+Del>.
Cold boot: Press the Reset button on the processor's
front panel.
NOTE: Save important information.
CAUTION: Restarting the MW-520 when it is
running under Windows 98/Windows NT® may
damage its operating system or hard disk.
