BEFORE YOU START
Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all the
necessary tools or information, contact Stratco for advice. Before starting, lay out all components and check them against
the delivery docket. The parts description identifies each key part. Double check all dimensions, levels and bolting locations
before cutting, screwing or bolting structural members.

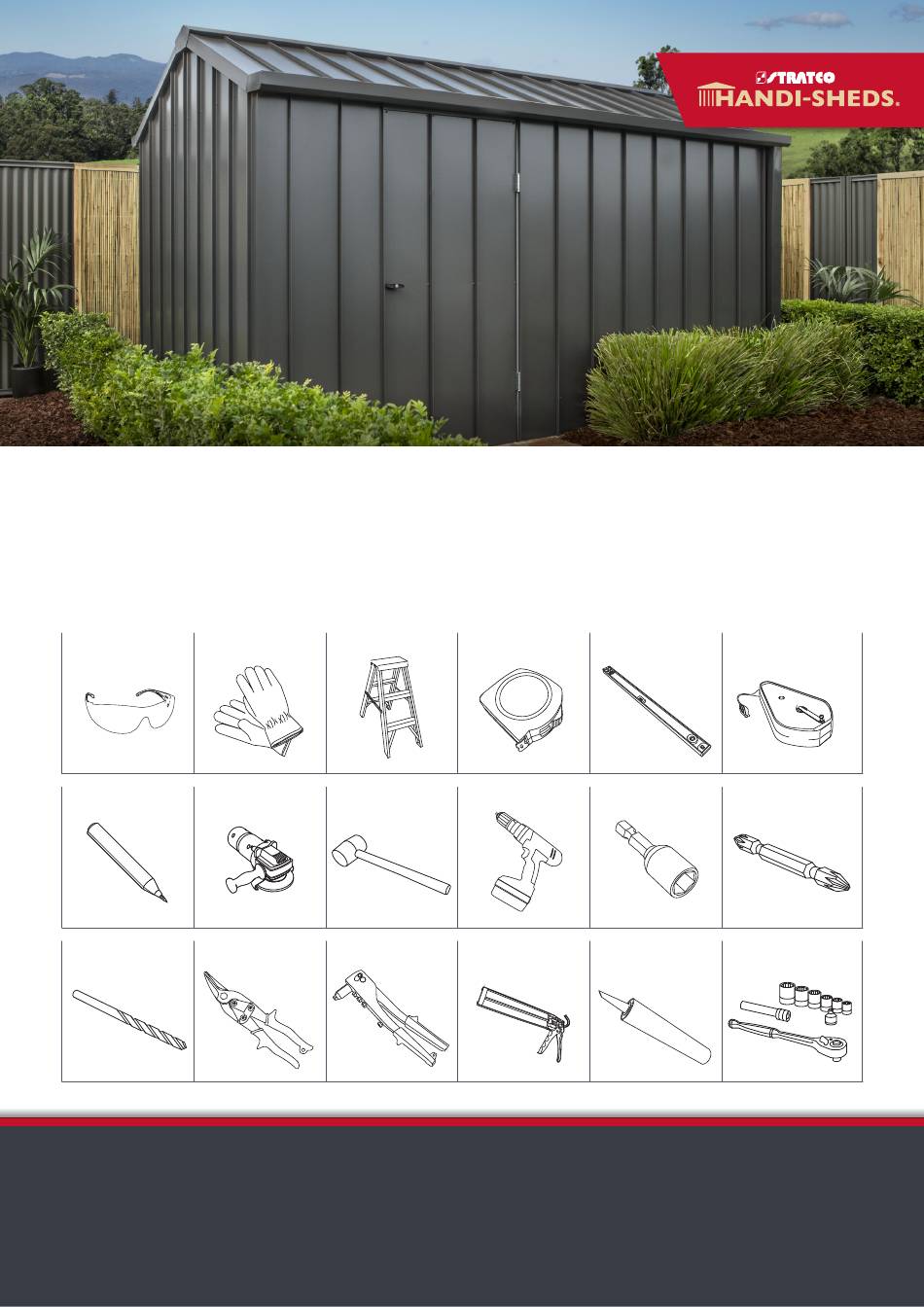

TOOLS REQUIRED
Safety Glasses
Safety Gloves
Marker
Angle Grinder
Drill Bits
Tin-Snips
(Assorted)
HANDI-HILANDER SHED
INSTALLATION GUIDE: HANDI-HILANDER GARDEN SHED
Ladders
Measuring Tape
Rubber Mallet
Cordless Drill
Rivet Gun
Caulking Gun
[TYPE 1 - SIDE DOOR]
Spirit Level
String Line
Hex-Head
Phillips Head
Adaptor
Adaptor
Silicone
Socket Set
Advertisement
Table of Contents
Related Manuals for Stratco HANDI-HILANDER SHED
Summary of Contents for Stratco HANDI-HILANDER SHED
- Page 1 Carefully read these instructions and refer to them constantly during each stage of construction. If you do not have all the necessary tools or information, contact Stratco for advice. Before starting, lay out all components and check them against the delivery docket. The parts description identifies each key part. Double check all dimensions, levels and bolting locations before cutting, screwing or bolting structural members.
- Page 2 HANDI-HILANDER GARDEN SHED INSTALLATION GUIDE COMPONENTS Column Rafter Set Girt Eaves Girt Ridge Beam (Left & Right) Door Jamb Lintel Footing Plate Door Jamb Standard Hiland Tray Footing Plate Cladding Gable-cut Hiland Tray Double Overlap Overlap Hiland Tray Standard Hiland Tray Underlap Hiland Tray Cladding Hiland Tray Cladding...
-
Page 3: Component Diagram
COMPONENT DIAGRAM Column 13. Door Frame Rafter Set 14. Hiland Tray Door Cladding (Overlap) Girt 15. Hiland Tray Door Cladding (Standard) Eaves Girt 16. Hiland Tray Door Cladding (Underlap) Ridge Beam 17. Lintel Flashing Door Jambs 18. Ridge Beam Support Flashing Lintel 19. - Page 4 HANDI-HILANDER GARDEN SHED INSTALLATION GUIDE LAYOUTS & PREPARATION CONCRETE SLAB PREPARATION COLUMN POSITIONING The extents of concrete slabs should align with the outside If fixing the columns into the ground, mark out the footing- of shed columns. hole locations with stakes and check that the diagonal Table 1.1 provides the approx.
- Page 5 CLADDING INSTALLATION Footing plate Note: Peel protective plastic from each cladding piece prior to installation. 12x35 self-drilling screws Gable end wall cladding must be secured to the gable end framework before framework erection. Corner-capping is used to locate the cladding evenly and allow for sheet variation.
- Page 6 HANDI-HILANDER GARDEN SHED INSTALLATION GUIDE Corner capping 10x16 self-drilling screws Corner capping 10x16 self-drilling screws Pre-cut gable-end wall sheet Approx. 20mm Approx. 20mm Corner capping Corner capping FIGURE 2.6 FIGURE 2.9 Corner capping 10x16 self-drilling screws Secure cladding to framework using two 10x16mm self- Extra HH3 fixings drilling screws 20mm in from each rib at the rafter, truss, &...
- Page 7 FRAMEWORK ERECTION Gable end frames will need to be tilted into position. If Lower girt fixing the columns into the ground carefully tilt each frame into position and place the columns into the footing holes Girt reinforcement flashing (Figure 3.0) (refer LAYOUTS & PREPARATION). Temporarily brace in position.
- Page 8 HANDI-HILANDER GARDEN SHED INSTALLATION GUIDE DOOR JAMB INSTALLATION A Double Door lintel is provided with each kit and will need to be cut-back for use with Handi-Hilander single doors. Cut-back the door lintel at the rectangular notch to achieve Eaves girt the required length of 930mm for a single door.
- Page 9 The cut-back ends of the girts will require fixing to door jambs using 10x16mm self-drilling screws through the internal door 10x16 wafer-head self-drilling screw jamb pilot holes, and 10x16mm wafer-head screws through the external door jamb pilot holes (Figure 3.5). Column Note: If the shed is fixed to concrete, two footing brackets for door jambs will be required.
- Page 10 FRONT WALL CLADDING Notch around door jambs Wall cladding must be installed from the corner capping at each end of the wall and up to the door jambs. Slide each wall sheet down the previous underlap or overlap, and Lintel flashing secure using two 10x16mm self-drilling screws 20mm in from each rib at the eaves &...
- Page 11 Position the first roof sheet along the fold on the barge cap Ridge endcap (Figure 4.9). Ridge capping Roof cladding Ridge endcap FIGURE 4.9 FIGURE 4.11 Fix the roof sheet through to the ridge beam using two 10x16mm self-drilling screws (with neoprene washers) 10x16 self-drilling screws 20mm in from each rib (Figure 4.10).
- Page 12 HANDI-HILANDER GARDEN SHED INSTALLATION GUIDE GUTTER INSTALLATION Downpipe outlet GUTTER PREPARATION Colour rivets Gutter stop-ends are supplied to cap the end of each gutter. Gutters are supplied at the correct length. Fit gutter stop-ends to the ends of the gutter. Drill ø3.5mm pilot holes through the gutter and stop-ends and fix together using colour-matched rivets (Figure 5.0).
-
Page 13: Door Installation
DOOR INSTALLATION DOOR PREPARATION Lay-out the door frame provided on a flat surface. Fit the Overlap door sheet underlap door sheet to the door frame and secure using 10x16mm self-drilling screws through to the horizontal 296mm cover sheet door frame members (approx. 20mm in from the each side) (Figure 6.0 &... -
Page 14: Maintenance
MAINTENANCE Your Stratco Handi-Garden Shed will maintain its good looks for even longer with a simple wash and wipe down. Cleaning should be performed as often as is required to remove any dirt, salt and pollutants. Stratco Handi-Sheds are produced from the highest quality materials and will provide many years of service, refer to the ‘Selection Use and Maintenance’... - Page 15 NOTES:...
- Page 16 NOTES: « SCAN THIS QR CODE TO FIND A STRATCO NEAR YOU 1300 155 155 stratco.com.au All brands and logos/images accompanied by ® or ™ are trade marks of Stratco (Australia) Pty Limited. ® Copyright June 2019...
