BEFORE YOU START
PRIOR TO INSTALLATION
To ensure that the installation and erection of your Pool Pump Filter Storage Shed proceeds smoothly you should confirm that all the
components and materials listed on the components section have been supplied. Carefully read this installation guide to familiarise
yourself with all the steps involved and ensure that you have the correct tools and equipment for the job.
Pool Pump Filter Storage Sheds must be securely bolted to a permanent concrete base with sufficient masonry anchors securing all
four corners of the shed to prevent wind uplift.
IMPORTANT NOTES:
1.
It is essential to clear and level the site prior to assembling your Pool Pump Filter Storage Shed.
2.
Brush off any metal filings as you go. Loose metal filings can cause premature corrosion.
3.
Note there are different types and colours of screws. Ensure that the right type and colour screw is being used at each location.
4.
Stability and performance of the shed relies on the door being closed during high wind events.
5.
Do not traverse the roof of the Pool Pump Filter Storage Shed .
6.
Use heavy gloves when handling steel sheeting and flashings and never attempt to install a shed in windy conditions.

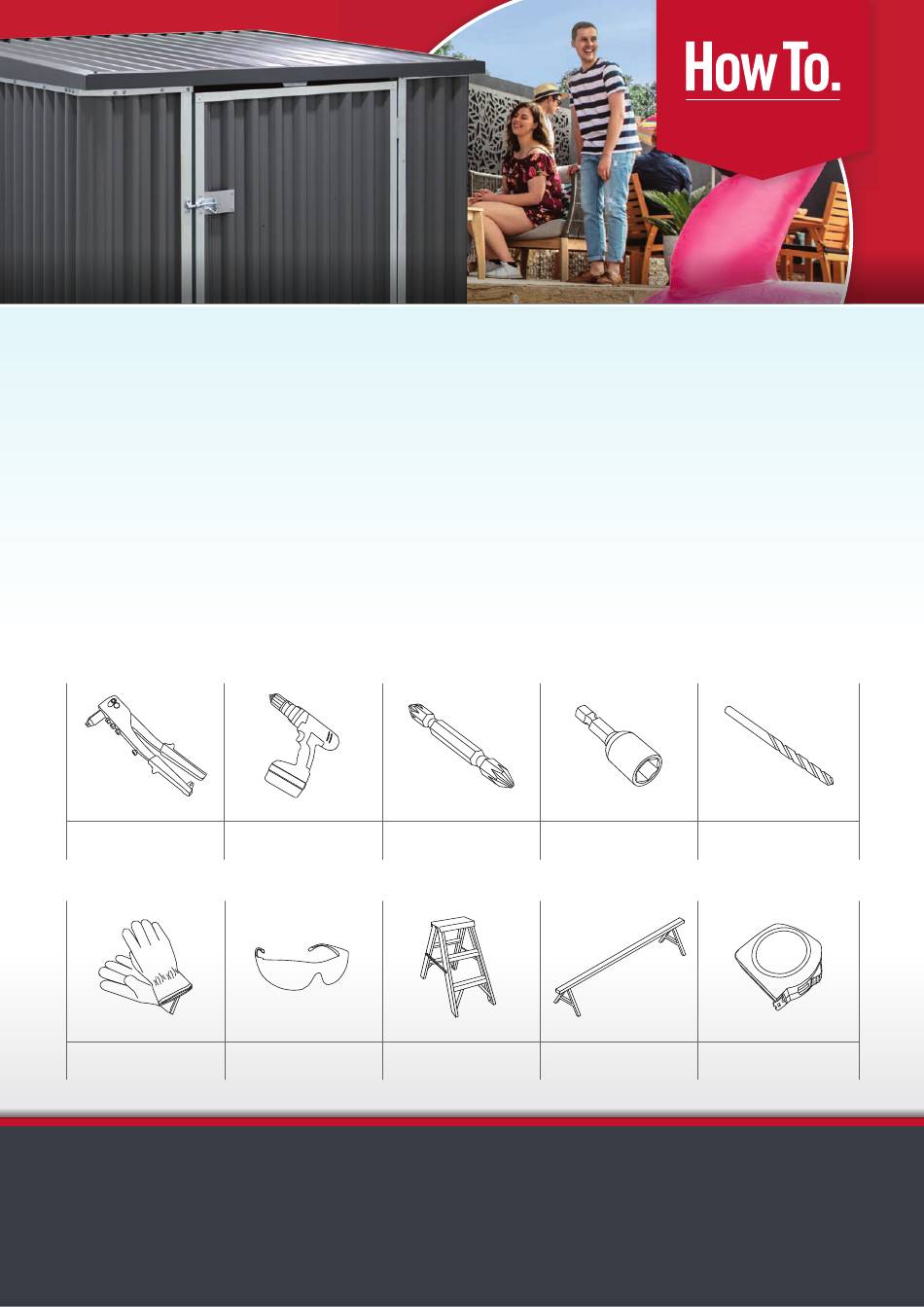

TOOLS & SAFETY GEAR
Rivet Gun
Gloves
STRATCO POOL PUMP FILTER STORAGE SHED
Power Drill
Phillips Head Driver
Safety Glasses
Step Ladder
INSTALLATION GUIDE
INSTALLATION GUIDE
Hex Head Driver
10mm Masonry Bit
2 x Trestle / Saw-horse
3.5mm Drill Bit &
Tape Measure

Advertisement

loading
Need help?

Need help?

Do you have a question about the PL-5716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stratco PL-5716

Summary of Contents for Stratco PL-5716

  • Page 1 TOOLS & SAFETY GEAR Rivet Gun Power Drill Phillips Head Driver Hex Head Driver 3.5mm Drill Bit & 10mm Masonry Bit Gloves Safety Glasses Step Ladder 2 x Trestle / Saw-horse Tape Measure STRATCO POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE...
  • Page 2 POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE COMPONENTS 1510mm 300mm 1290mm 1350mm 1350mm 1350mm 1350mm 1475mm 1475mm 1515mm 1515mm 10282 1400mm 750mm 760mm 1290mm 1350mm 1440mm 535mm 2050mm 10x16 Wafer- 10x16 Self- Head Screw Drilling Screw x100 Padbolt, Padbolt Hold Down Pull Cord 10x16 Self- 10x22 Wafer-...

  • Page 3: Roof Assembly

    ROOF ASSEMBLY Roof Sheet 10x16 self-drilling screw with washer Left Flashing Rear Flashing Pull Cord Bracket Front Flashing Gas Strut Hint: Use trestles or a table to ease with Right Flashing assembly of the Roof, Walls and Door. Figure 1.0 Fit the Roof Sheets into the Rear Flashing.
  • Page 4 POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE Fit the Front Flashing onto the Roof Sheets. Fasten seven Flip over the Roof, so that the underside is facing up. Fit the 10x16 self-drilling screws with washer through the Front Pull Cord Latch into the Front Flashing. Ensure a 250mm Flashings and into the Side Flashings and Roof Sheets.

  • Page 5: Wall Assembly

    WALL ASSEMBLY 10x16 self-drilling screw Wall Channel Corner Wall Sheet Wall Sheet Wall Channel Hint: Use trestles or a table to ease with assembly of the Roof, Walls and Door. Figure 2.0 Assemble two more Walls in the same manner, so that there Slide the Wall Channels onto the Wall Sheets.

  • Page 6: Door Assembly

    POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE DOOR ASSEMBLY 10x16 wafer-head tek screw Door Sheet Padbolt Door Channel - Short Padbolt Mount Plate Door Channel - Long Door Brace Door Channel - Long Door Channel - Short Door Jamb Hinge Figure 3.0 Fasten three 10x16 wafer-head tek screws through the Hinge Fit the Short and Long Door Channels onto the Door Sheet.
  • Page 7 Flip over the Door, so that the underside is facing up. Fit the Fasten three 10x16 wafer-head tek screws through the Hinge two Door Braces diagonally across the Door. Drill 3.5mm and into the Door Jamb at both ends. Ensure the end of the holes through the Door Braces and into every second rib of Door Jamb is spaced approximately 40mm from the bottom the Door Sheet, as indicated by the ‘X’...
  • Page 8 WALL JOINING Rear Wall Right Wall Left Wall Figure 4.0 Fit the Corner Bracket over the Wall Channels. Ensure the Lap the Left wall into the Rear Wall. pilot holes of the Corner Bracket and Wall Channels line up. Rear Wall Top Channel Corner Bracket Left Wall...
  • Page 9 POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE Fit the remaining Wall Channel into the Corner Brackets at Fasten through the Corner Bracket pilot holes and into the the front of the shed. Fasten through the Corner Bracket Wall Channels using 10x16 self-drilling screws. pilot holes and into the Wall Channel using 10x16 self- drilling screws.
  • Page 10 Fit the Front Wall Channels over the Front Wall Sheets and Confirm the Corners are Square before fastening the screws. into the Corner Brackets. Line up the pilot holes and fasten Fasten a Hinge to the top face of both rear Corner Brackets. two 10x16 self-drilling screws through the Corner Brackets Fasten the Hinge to the Corner Bracket using three 10x16 and into the Front Wall Channels.
  • Page 11 POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE Fit the individual Door Jamb into the Wall Channels on the Fasten two 10x16 self-drilling screws through the Wall left side. Fit the door Jamb attached to the Door Assembly Channels and into the Wall Sheets in all four corners. Line up into the Wall Channels on the right side.
  • Page 12 Fasten three 10x16 wafer-head tek screws through the Hinge Fit the Gas Strut into the Strut Bracket. Fasten in place with and into the Rear Flashing at both ends. the supplied nut. Gas Strut Strut Bracket Rear Flashing Hinge 10x16 wafer- head tek screw Gas Strut Strut Bracket...
  • Page 13 Fit the Pull Cord Latch up against the Wall Sheet and Door You may have piping that extends out from the Pool Pump Jamb. Pull the Pull Cord Latch tight (downwards) and mark Filter Shed. If so, follow the steps in figures 4.21 to 4.22. the Pull Cord Latch position on the Door Jamb.
  • Page 14 Figure 4.24 « SCAN THIS QR CODE TO FIND A STRATCO NEAR YOU 1300 155 155 stratco.com.au All brands and logos/images accompanied by ® or ™ are trade marks of Stratco (Australia) Pty Limited. ® Copyright SEPTEMBER 2021...
