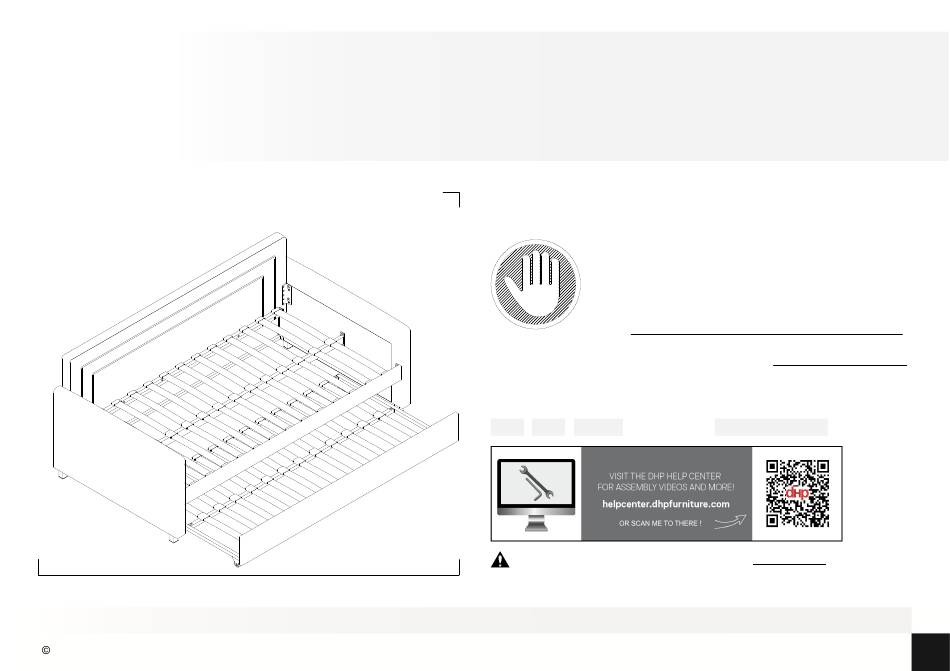

Dorel Home Products DA4087459QE Instruction Booklet

Dorel Home Products DA4087459QE Instruction Booklet

Upholstered daybed with trundle twin, light gray velvet
Hide thumbs

Advertisement

Table of Contents

for Daybed
Weight Limit: 400 Lb / 181 Kg
for Trundle
250 Lb / 113 Kg
C.W. -2022/5/25
2022 Dorel Home Products All Rights Reserved
DA4087459QE(Light Gray Velvet)
Upholstered Daybed with Trundle
Thank you for purchasing from Dorel!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Twin
Lot Number
(TAKEN FROM CARTON)
B34DA4087459QE00-241702-C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA4087459QE and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products DA4087459QE

Summary of Contents for Dorel Home Products DA4087459QE

  • Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B34DA4087459QE00-241702-C C.W. -2022/5/25 2022 Dorel Home Products All Rights Reserved...

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS...
  • Page 4 Armrest 1 PC 1 PC PART NUMBERS Each part has unique part number. Please reference the appropriate part DA4087459QE(Light Gray Velvet) Part Label number when contacting customer service for replacement parts. T1021310 T1021320 Before throwing any packaging, please verify all contents and make sure...
  • Page 5 1 PC 1 PC 2 PCS 2 PCS PART NUMBERS Each part has unique part number. Please reference the appropriate part DA4087459QE(Light Gray Velvet) Part Label number when contacting customer service for replacement parts. T1021300 T1021330 T1021340 Before throwing any packaging, please verify all contents and make sure...
  • Page 6 Double Slat Cap 1 PC 50 PCS 25 PCS PART NUMBERS Each part has unique part number. Please reference the appropriate part DA4087459QE(Light Gray Velvet) Part Label number when contacting customer service for replacement parts. T1021420 T1021430 T926760 Before throwing any packaging, please verify all contents and make sure...

  • Page 7: Hardware Pack

    Bolt L-Allen Key 6 PCS 1 PC Hardware Pack DA4087459QE(Light Gray Velvet) HP#: TDA4087459QE-00 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 8 1 PC Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless DA4087459QE(Light Gray Velvet) HP#: T4144719LS-01 otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 9 Step 1 The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 7. Please use the Daybed Hardware Pack: TDA4087459QE-00. Screw the M X 4 to the B & C. Screw bolts to B and C, leave half of the thread exposed.
  • Page 10 Step 2 Attach N X 2 to A with bolts To avoid fraying the fabric during assembly, please lay the backrest A on a piece of cardboard.
  • Page 11 Step 3 Hang A on B & C as illustrated below, don't completely tighten the BOLTS until STEP 4 is complete.
  • Page 12 Step 4 Flange of bracket on F must be located towards the inside of the bed. Attach F & G & I to B and C with bolts Then properly tighten all the bolts. Slat holes on part F & G should be facing upward.
  • Page 13 Step 5 Stick of T onto A & I as illustrated.
  • Page 14 Step 6 Slat holes must be facing up. 6.1 Attach D to F with bolts 6.2 Attach H to A with bolts...
  • Page 15 Step 7 7.1 Insert O into X on each side as indicated; 7.2 Press X into F and H; 7.3 Insert the other free end of both O into Y where both O meet, press Y into G. Repeat the same procedure going backwards for every row of slats.
  • Page 16 Step 8 Slat holes on part K and J towards floor as illustrated. The following instructions will illustrate how Caster holes on L to assemble the Trundle from Step 8 to towards upward. Step 12. Please use the Trundle Hardware Pack: T4144719LS-01.
  • Page 17 Step 9 Attach K x 2 & J to L x 2 with bolts Please respect the nuts direction of the bolt as illustrated.
  • Page 18 Step 10 In order not to damage your product, please orient lever of Q to the inside of the trundle as illustrated. Attach P x 2 & Q x 2 to L x 2 with bolts Caster P should be assembled on the side near Part J.
  • Page 19 Step 11 Turn over the frame assembled from STEP Attach E to J with bolts Make sure slat holes on J & K are all on the top side in this STEP.
  • Page 20 Step 12 12.1 12.1 Insert O into X on each side as indicated; 12.2 Press X into J and K; 12.3 Insert the other free end of both O into 12.2 Y where both O meet, press Y into K. Repeat the same procedure going backwards for every row of slats.

  • Page 21: Helpful Hints

    Helpful Hints To use Trundle: How to lock caster? How to unlock caster? Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever "ON" as illustrated "How to lock caster!". To store Trundle: Unlock the casters by pushing down the lever "OFF"...
  • Page 22 CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 23 DA4087459QE(Terciopelo gris claro) Preguntas, inquietudes, partes que faltan? CONTACTE NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. Div n tapizado con cama deslizable Si le faltan piezas o las que se incluyen est n da adas, con mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 24 Paquete de componentes Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts # de paquete : TDA4087459QE-00 DA4087459QE(Terciopelo gris claro) T4144719LS-01 IMPORTANTE: La lista de n meros de piezas que aparece a continuaci n es exclusiva de su producto. Por favor, mant ngalo a mano cuando solicite piezas de repuesto.
  • Page 25 Instrucciones Paso 1 Las instrucciones siguientes ilustrar n c mo ensamblar el Div n del Paso 1 al Paso 7. Utilice el paquete Daybed Hardware:TDA4087459QE-00. Atornillar el M X 4 al B & C. Atornille los pernos a B y C, deje expuesta la mitad de la rosca. Paso 2 Una N X 2 con A con Paso 3...
  • Page 26 L mites de peso: 400 Lb / 181 Kg para Div n 250 Lb / 113 Kg para Cama deslizable Paso 9 Conecte K x 2 & J a L x 2 con Consejos tiles Paso 10 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para levantar y trasladar su producto a su nueva ubicaci n.

  • Page 27: Informations Sur La Garantie

    DA4087459QE (Velours Gris Clair) Des questions, des pr occupations ou des pi ces manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. Lit de jour rembourr avec lit gigogne Si des pi ces sont manquantes ou endommag es, nous exp dierons volontiers vos pi ces de rechange gratuitement.
  • Page 28 Pi ces Quincaillerie Pour des pi ces de rechange, visitez www.dhpfurniture.com/fre/replacement-parts # de paquet : TDA4087459QE-00 DA4087459QE (Velours Gris Clair) T4144719LS-01 IMPORTANT: La liste des r f rences ci-dessous est propre votre produit. Remarque: Sauf indication contraire dans les instructions, ne pas resserrer Veuillez l'avoir sous la main lorsque vous appelez pour des pi ces de rechange.
  • Page 29 Instructions tape1 Les instructions suivantes illustreront comment assembler le Divan de l' tape1 a l' tape 7. S'il vous pla t utiliser l'emballage coque: TDA4087459QE-00 Vissez le M X 4 au B & C. Vissez les boulons B et C, laissez la moiti du filetage expos e. tape2 Attacher N X 2 A avecles...

  • Page 30: Conseils Utiles

    Limite de Poids: 400 Lb / 181 Kg Pour Lit de jour 250 Lb / 113 Kg Pour Gigogne tape9 Attachez K x 2 & J L x 2 avec Conseils utiles tape10 D placez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel Attachez P x 2 &...
