Weight Limit:500Lb/227Kg
KT - 2021/6/22
2021 Dorel Home Products All Rights Reserved
DA4044439MK (Light Gray Velvet)
DA4046439MK(Dark Gray Linen)
DA4044139MK (White Velvet)
Thank you for purchasing from Dorel!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DA4044639MK (Blue Velvet)

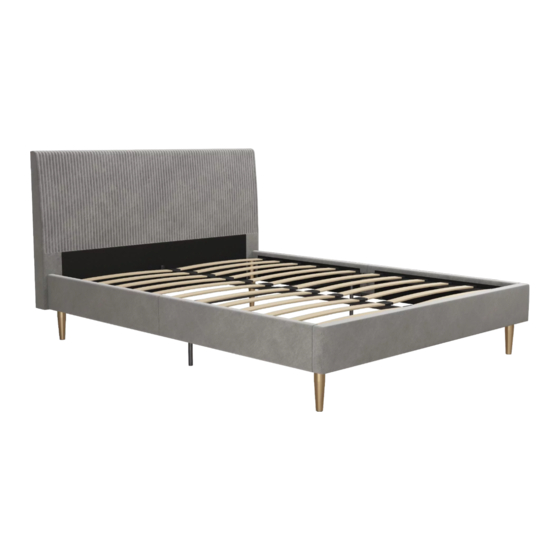

Upholstered Bed
Queen Size
Lot Number
(TAKEN FROM CARTON)
B34DA4044439MK01-KT
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Home Products DA4044139MK
Summary of Contents for Dorel Home Products DA4044139MK

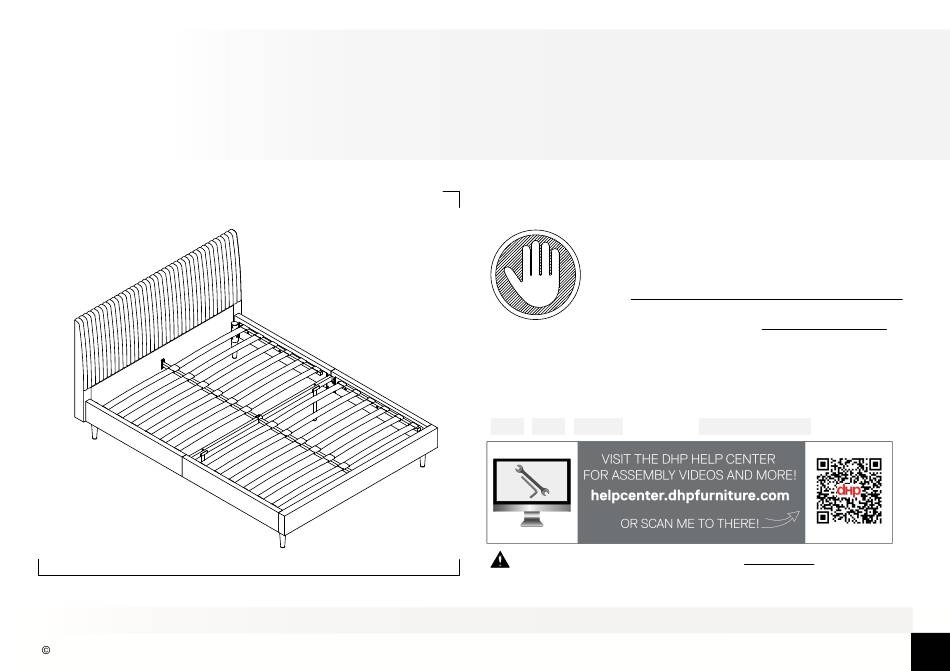

- Page 1 You can also chat with us at www.dhpfurniture.com Date of Purchase Lot Number (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B34DA4044439MK01-KT KT - 2021/6/22 2021 Dorel Home Products All Rights Reserved...
-
Page 2: Limited 1-Year Warranty
Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product. - Page 3 PARTS...
-
Page 4: Parts List
Center Rail 2 PCS 1 PC 2 PCS 4 PCS 2 PCS PART NUMBERS DA4044439MK DA4046439MK DA4044139MK DA4044639MK PART Each part has a unique part number. (Light Gray Velvet) (Dark Gray Linen) (White Velvet) (Blue Velvet) LABELS Please reference the appropriate part... - Page 5 PARTS LIST Wooden Slats Single Slat Cap Double Slat Cap 24 PCS 24 PCS 12 PCS 4 PCS PART NUMBERS DA4044439MK DA4046439MK DA4044139MK DA4044639MK PART (Light Gray Velvet) (Dark Gray Linen) (White Velvet) (Blue Velvet) LABELS T926780 T926780 T926780 T926780...
-
Page 6: Hardware List
1 PC Hardware Pack DA4044439MK (Light Gray Velvet) DA4046439MK(Dark Gray Linen) HP#:TDA4044429MK-01 DA4044139MK (White Velvet) DA4044639MK (Blue Velvet) Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page. - Page 7 Step 1 Stick N to the back of A with Velcro as illustrated.
- Page 8 Step 2 Attach I to D and E with Don't completely tighten the bolts until STEP 7 is complete.
- Page 9 Step 3 Attach Z x 2 to D and E with Fully tighten all bolts in this Step. X 12...
- Page 10 Step 4 Attach Z x 4 to A , C , D and E with...
- Page 11 Step 5 Attach J X 2 to H with...
- Page 12 Step 6 Attach H to D and E with...
- Page 13 Step 7 7.1 Attach K X 2 to A and C with 7.2 Attach K X 2 to H with Then properly tighten all the bolts.
- Page 14 Step 8 Attach G x 4 to D and E with Note Slat holes on G must be facing up. Fully tighten all bolts in this Step. X 12...
- Page 15 Step 9 9.1 Insert one side of both O1 into X as indicated 9.2 Press X into G on each side. 9.3 Insert the other free end of both slats O1 into Y where both O1 meet, then press Y into K. Repeat the same procedure going backwards for every row of slats.
-
Page 16: Helpful Hints
CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location. - Page 17 DA4046439MK (Lino Gris oscuro) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. DA4044139MK (Terciopelo Blanco) Si le faltan piezas o las que se incluyen est n da adas, con mucho DA4044639MK (Terciopelo Azul) gusto le enviaremos sus piezas de reemplazo sin cargo extra.
- Page 18 Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. N MERO DE PIEZAS DA4044439MK DA4046439MK DA4044139MK DA4044639MK ETIQUETAS DESCRIPCI N (Rosa Terciopelo gris) (Lino Gris oscuro)
- Page 19 Instrucciones Paso 1 Coloque N en la parte posterior de A con el cierre m gico como se ilustra. Limites de peso - Cama : 500Lb/227Kg Paso 2 Una I con D y E con los Consejos tiles No apriete completamente los PERNOS hasta que el PASO 7 sea completado. Paso 3 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para Una Z x 2 y D con E con los...
-
Page 20: Informations Sur La Garantie
CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. DA4044139MK (Velours Blanc) Si des pi ces sont manquantes ou endommag es, nous DA4044639MK (Velours Bleu) exp dierons volontiers vos pi ces de rechange gratuitement. - Page 21 (illustrations disponibles dans la section en anglais). LISTE DES PI CES DA4044439MK DA4046439MK DA4044139MK DA4044639MK TIQUETTE DESCRIPTION (Rose Velours gris) (Lin Gris fonc ) (Velours Blanc)
-
Page 22: Conseils Utiles
Instructions tape 1 Coller N l'arri re de A avec le Velcro, comme illustr . Limite de Poids - Lit : 500Lb/227Kg tape 2 Attacher I D et E ave c Conseils utiles Ne serrez pas compl tement les vis jusqu' ce TAPE 7 est termin e. tape 3 D placez votre nouveau mobilier avec soin, nous recommandons deux Attacher Z X 2...
