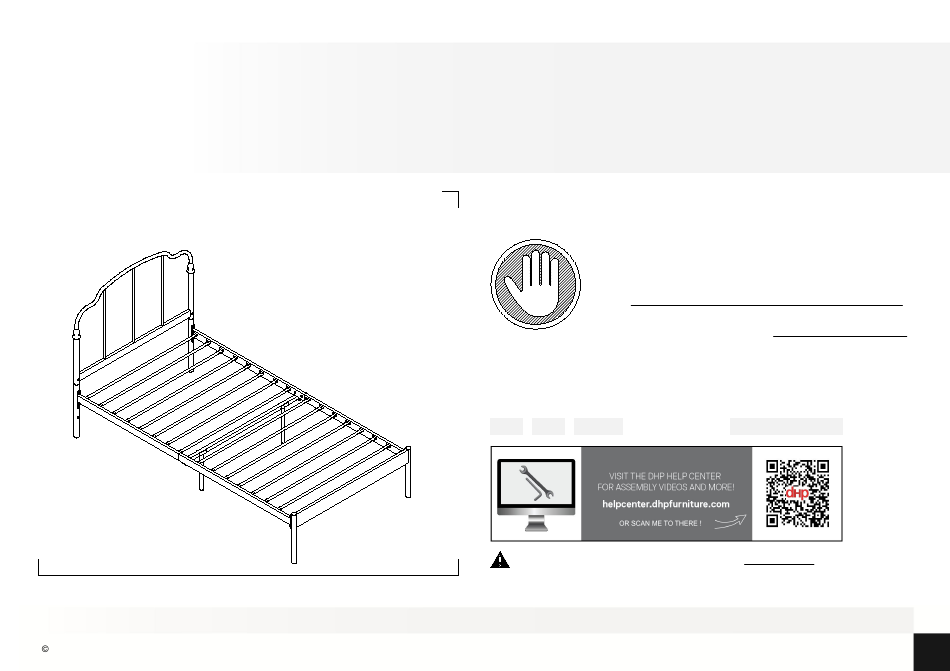

Weight Limit: 250 Lb / 113 Kg
L.T. - 2020/12/28
2020 Dorel Home Products All Rights Reserved
DA4061019(Black) DA4062119(White)
Thank you for purchasing from Dorel!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

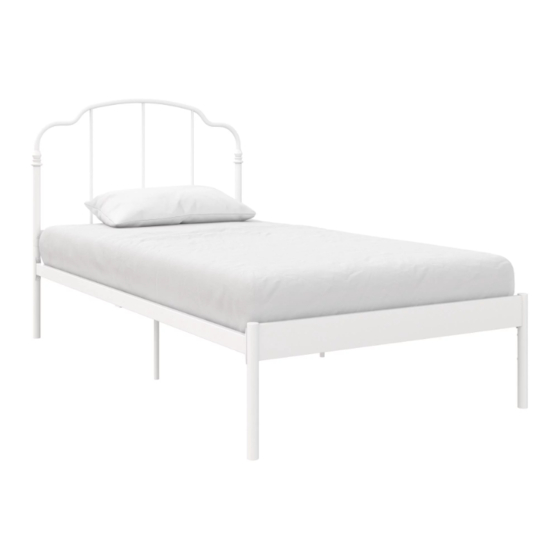

Metal Bed
Twin
Lot Number
(TAKEN FROM CARTON)
B34DA406101900-KT
1
