Dorel Home Products DA4044429MK Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Dorel Home Products Manuals
  4. Indoor Furnishing
  5. DA4044429MK
  6. Assembly instructions manual

Dorel Home Products DA4044429MK Assembly Instructions Manual

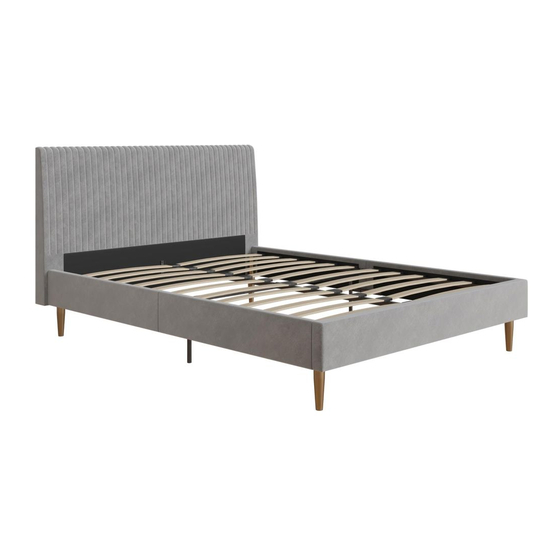

Upholstered bed full size
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

Weight Limit:800LBS / 363KG
KT - 2023/10/6
2023 Dorel Home Products All Rights Reserved
DA4044429MK (Light Gray Velvet) DA4046429MK(Dark Gray Linen)
DA4044129MK (Ivory Velvet) DA4044629MK (Blue Velvet)
Thank you for purchasing from DHP!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Upholstered Bed
Full Size
Lot Number
(TAKEN FROM CARTON)
B34DA4044429MK01-KT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA4044429MK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products DA4044429MK

Summary of Contents for Dorel Home Products DA4044429MK

  • Page 1 DA4044429MK (Light Gray Velvet) DA4046429MK(Dark Gray Linen) DA4044129MK (Ivory Velvet) DA4044629MK (Blue Velvet) Upholstered Bed Full Size Thank you for purchasing from DHP! Weight Limit:800LBS / 363KG Questions, concerns, missing parts? CONTACT OUR CUSTOMER SERVICE DEPARTMENT BEFORE RETURNING PRODUCT TO THE RETAILER.

  • Page 2: Limited 1-Year Warranty

    Limited 1 year Warranty Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. This warranty covers one year from the carpet, or use a piece of the cardboard packaging to protect your floor and product.
  • Page 3 PARTS...

  • Page 4: Parts List

    Support Leg Side Rail Center Rail 2 PCS 1 PC 2 PCS 4 PCS 2 PCS PART NUMBERS DA4044429MK DA4046429MK DA4044129MK DA4044629MK PART Each part has a unique part number. (Light Gray Velvet) (Dark Gray Linen) (Ivory Velvet) (Blue Velvet)
  • Page 5 PARTS LIST Single Slat Cap Double Slat Cap Wooden Slats 24 PCS 12 PCS 4 PCS 24 PCS PART NUMBERS DA4044429MK DA4046429MK DA4044129MK DA4044629MK PART (Light Gray Velvet) (Dark Gray Linen) (Ivory Velvet) (Blue Velvet) LABELS Each part has a unique part number.

  • Page 6: Hardware List

    Hardware Pack otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are DA4044429MK (Light Gray Velvet) shown in actual size in the lower right corner of the DA4046429MK(Dark Gray Linen) HP#:TDA4044429MK-02 page.
  • Page 7 Step 1 Stick N to the back of A with Velcro as illustrated.
  • Page 8 Step 2 Attach I to D and E with Don't completely tighten the bolts until STEP 7 is complete.
  • Page 9 Step 3 Attach Z x 2 to D and E with Fully tighten all bolts in this Step. X 12...
  • Page 10 Step 4 Attach Z x 4 to A , C , D and E with...
  • Page 11 Step 5 Attach J X 2 to H with...
  • Page 12 Step 6 Attach H to D and E with...
  • Page 13 Step 7 7.1 Attach K X 2 to A and C with 7.2 Attach K X 2 to H with Then properly tighten all the bolts.
  • Page 14 Step 8 Attach G x 4 to D and E with Note:Slat holes on G must be facing up. Fully tighten all bolts in this Step. X 12...
  • Page 15 Step 9 9.1 Insert one side of both P into X as indicated 9.2 Press X into G on each side. 9.3 Insert the other free end of both slats P into Y where both P meet, then press Y into K. Repeat the same procedure going backwards for every row of slats.

  • Page 16: Helpful Hints

    CAUTION: This unit is intended for use only with the products and/or maximum Helpful Hints weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
  • Page 17 DA4044429MK (Rosa Terciopelo gris) Preguntas, inquietudes, partes que faltan? CONTACTE DA4046429MK (Lino Gris oscuro) NUESTRO DEPARTAMENTO DE SERVICIO AL CLIENTE ANTES DE DEVOLVER EL PRODUCTO A LA TIENDA. DA4044129MK (Terciopelo Marfil) Si le faltan piezas o las que se incluyen est n da adas, con mucho DA4044629MK (Terciopelo Azul) gusto le enviaremos sus piezas de reemplazo sin cargo extra.
  • Page 18 Antes de deshacerse de las cajas de cart n, aseg rese de que est n vac as. Tambi n confirme que ha recibido todos los componentes necesarios para el ensamblaje al compararlos con la tabla de piezas indicadas en la secci n en ingl s. N MERO DE PIEZAS DA4044429MK DA4046429MK DA4044129MK DA4044629MK ETIQUETAS DE...
  • Page 19 Instrucciones Paso 1 Coloque N en la parte posterior de A con el cierre m gico como se ilustra. Limites de peso - Cama : 800LBS / 363KG Paso 2 Una I con D y E con los Consejos tiles No apriete completamente los PERNOS hasta que el PASO 7 sea completado.

  • Page 20: Informations Sur La Garantie

    DA4044429MK (Rose Velours gris) Des questions, des pr occupations ou des pi ces DA4046429MK (Lin Gris fonc ) manquantes? CONTACTEZ NOTRE SERVICE LA CLIENT LE AVANT DE RETOURNER LE PRODUIT AU D TAILLANT. DA4044129MK (Velours lvoire) Si des pi ces sont manquantes ou endommag es, nous DA4044629MK (Velours Bleu) exp dierons volontiers vos pi ces de rechange gratuitement.
  • Page 21 (illustrations disponibles dans la section en anglais). LISTE DES PI CES DA4044429MK DA4046429MK DA4044129MK DA4044629MK TIQUETTE DESCRIPTION...

  • Page 22: Conseils Utiles

    Instructions tape 1 Coller N l'arri re de A avec le Velcro, comme illustr . Limite de Poids - Lit : 800LBS / 363KG tape 2 Attacher I D et E ave c Conseils utiles Ne serrez pas compl tement les vis jusqu' ce TAPE 7 est termin e. tape 3 D placez votre nouveau mobilier avec soin, nous recommandons deux Attacher Z X 2...
