Weight Limit:500Lb/227Kg
KT - 2021/6/22
2021 Dorel Home Products All Rights Reserved
DA4045449MK (Light Gray Velvet)
DA4047449MK(Dark Gray Linen)
DA4080149MK (White Velvet)
Thank you for purchasing from Dorel!
Questions, concerns, missing parts?
CONTACT OUR CUSTOMER SERVICE DEPARTMENT
BEFORE RETURNING PRODUCT TO THE RETAILER.
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
DA4081649MK (Blue Velvet)

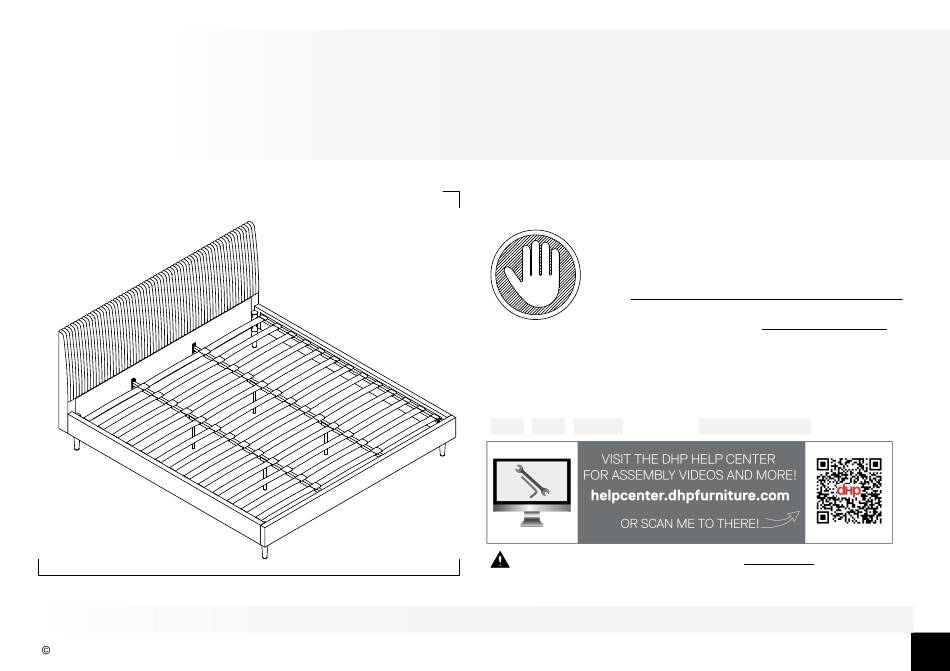

Upholstered Bed
King Size
Lot Number
(TAKEN FROM CARTON)
B34DA4045449MK00-KT
