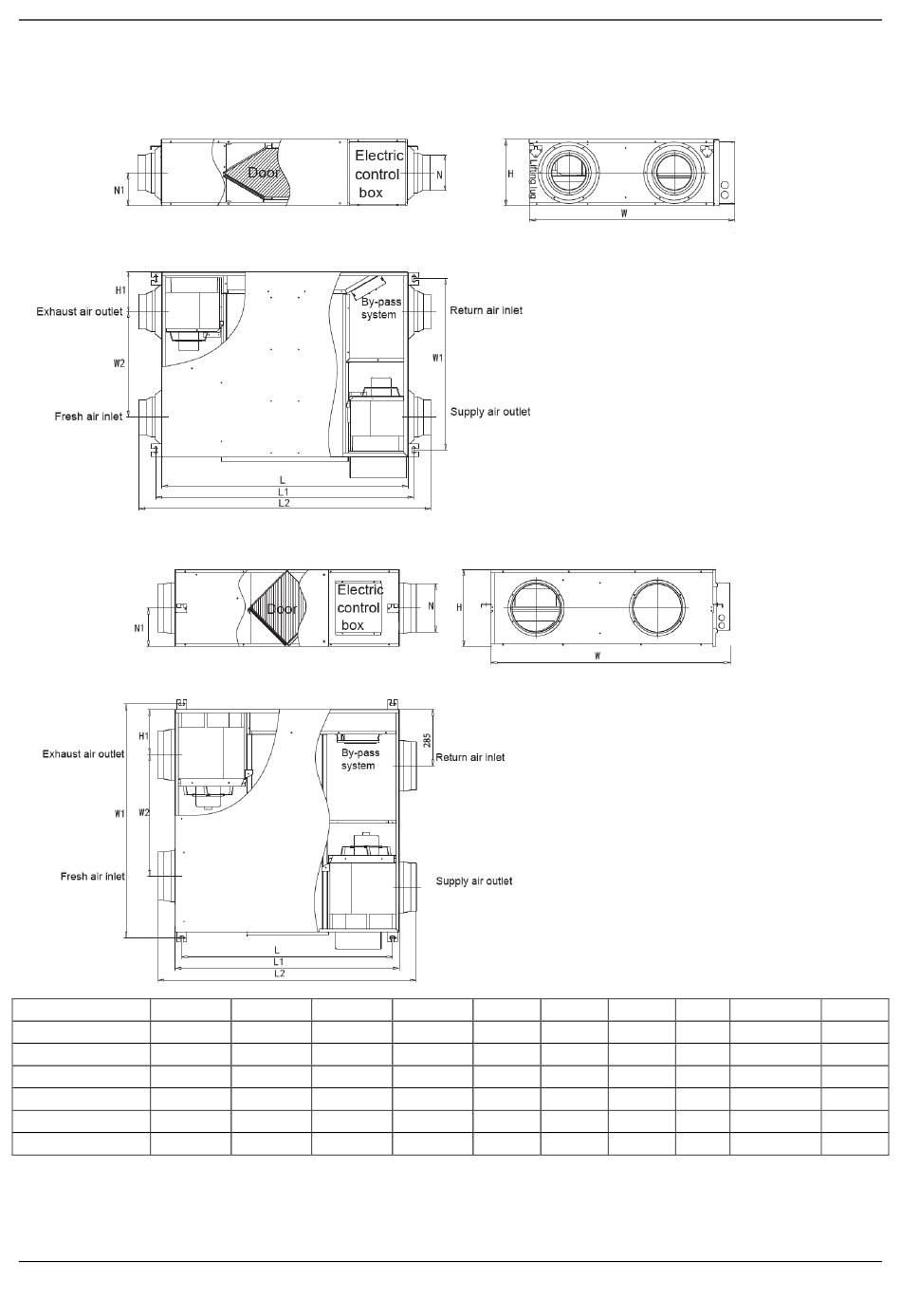

7. Dimensions
HRV-D200(A)~HRV-D400(A)
HRV-D500(A)~HRV-D1000(A)
Model L
HRV-D200(A) 1007
HRV-D300(A) 1007
HRV-D400(A) 1081
HRV-D500(A) 1071
HRV-D800(A) 1071
HRV-D1000(A) 1071
L1 L2 W1
1054 1195 588
1054 1195 701
1129 1276 991
1138 1311 1005
1138 1311 1185
1138 1311 1431
W2 W
356 801
431 914
595 1204
465 1106
616 1286
764 1526
8
HRV with DC Fan Motor
H H1 N
272 142 Φ144
272 163 Φ144
272 202 Φ198
390 227 Φ244
390 229 Φ244
390 230 Φ244
N1
136
136
136
195
195
195
