HRV with DC Fan Motor

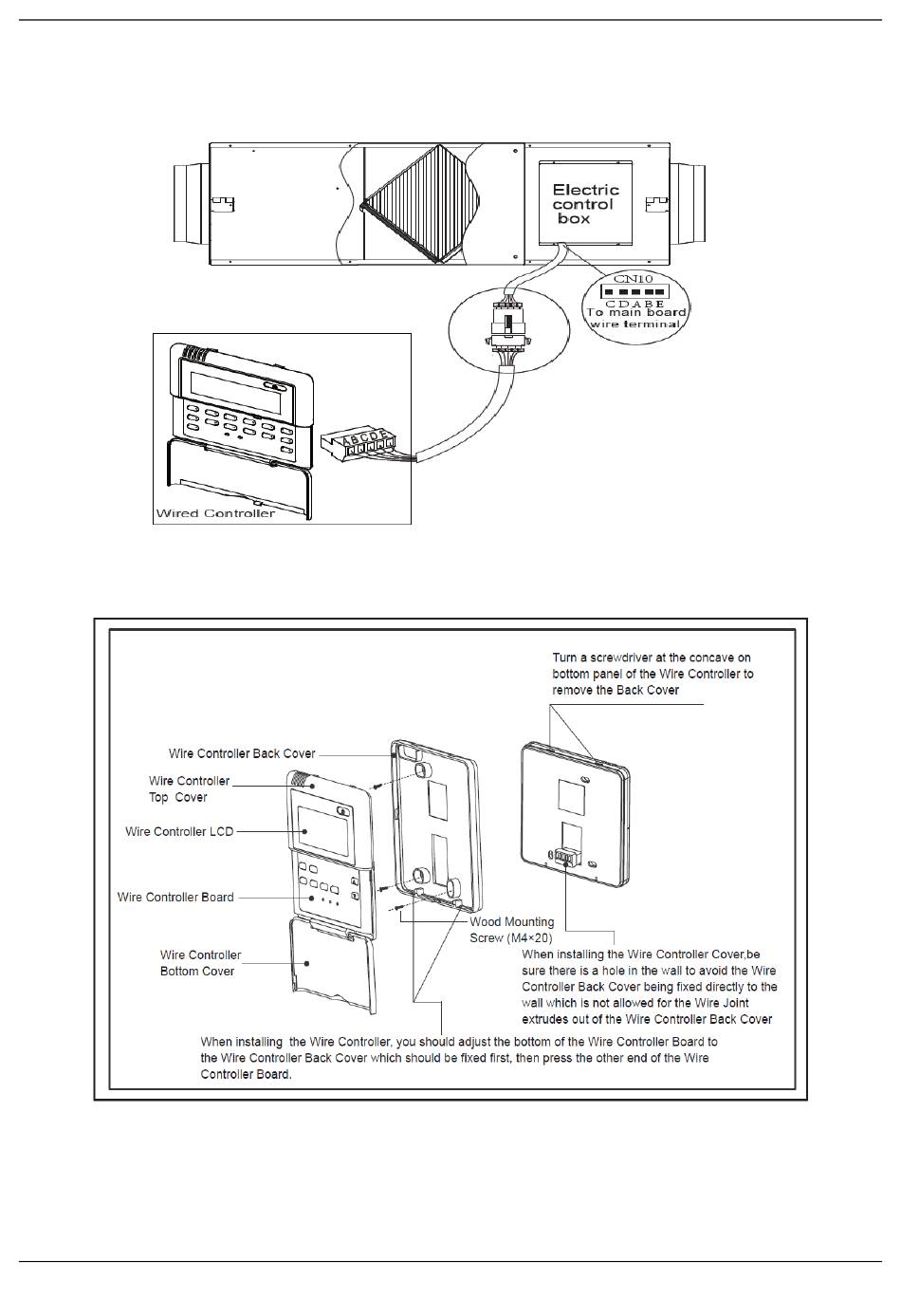

13.3 System connection diagram
Caution:
1. Never turn screws too tightly, or else the cover would be dented or the Liquid Crystal breaks.
2. Please leave enough space for maintain and upkeep the wire controller.
3. KJR-27B/E must be purchased separately.
