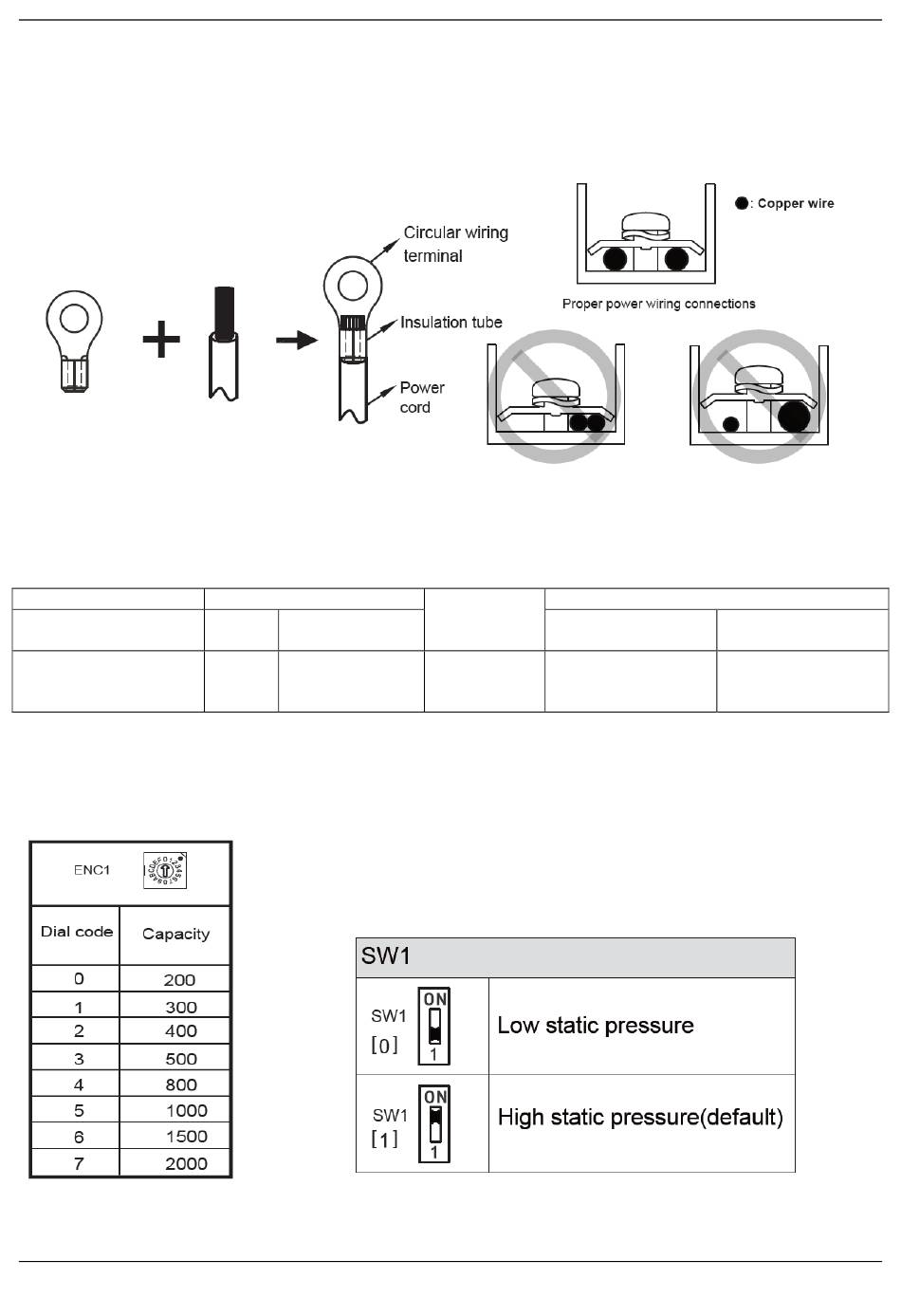

While connecting the power supply terminals, use circular wiring terminals with insulation.Use power cord that confirms with the
specifications and connect the power cord firmly. To prevent the cord from being pulled out by external force; make sure it is fixed
securely.
If the circular wiring terminal with insulation cannot be used, make sure that:
1. Do not connect two power codes with different diameters to the same power supply terminals (may cause overheating).
13.2 Electric data Specification
Model
HRV-D
200(A),300(A),400(A),
500(A), 800(A),
1000(A),1500(A),2000(A)
 After wiring, make sure that all the connections are correct and then power ON the unit
 Pay attention to the power supply wire of three-phase model; make sure that the phase sequence is
correct.
ENC1 (Setting for Capacity)
Note: The dip switch settings are already configured in factory. Do not change on site.
Power supply
Phase Frequency/voltage
Single 220-240V~
phase 50/60Hz
Input current
main switch
Wire's quantity
/fuse(A)
3 (Yellow/green wires
15/15
grounding wire)
SW1 setting for static pressure
17
HRV with DC Fan Motor
Power supply wire dimension
Code wire
cross-section (mm 2 )
2.5
