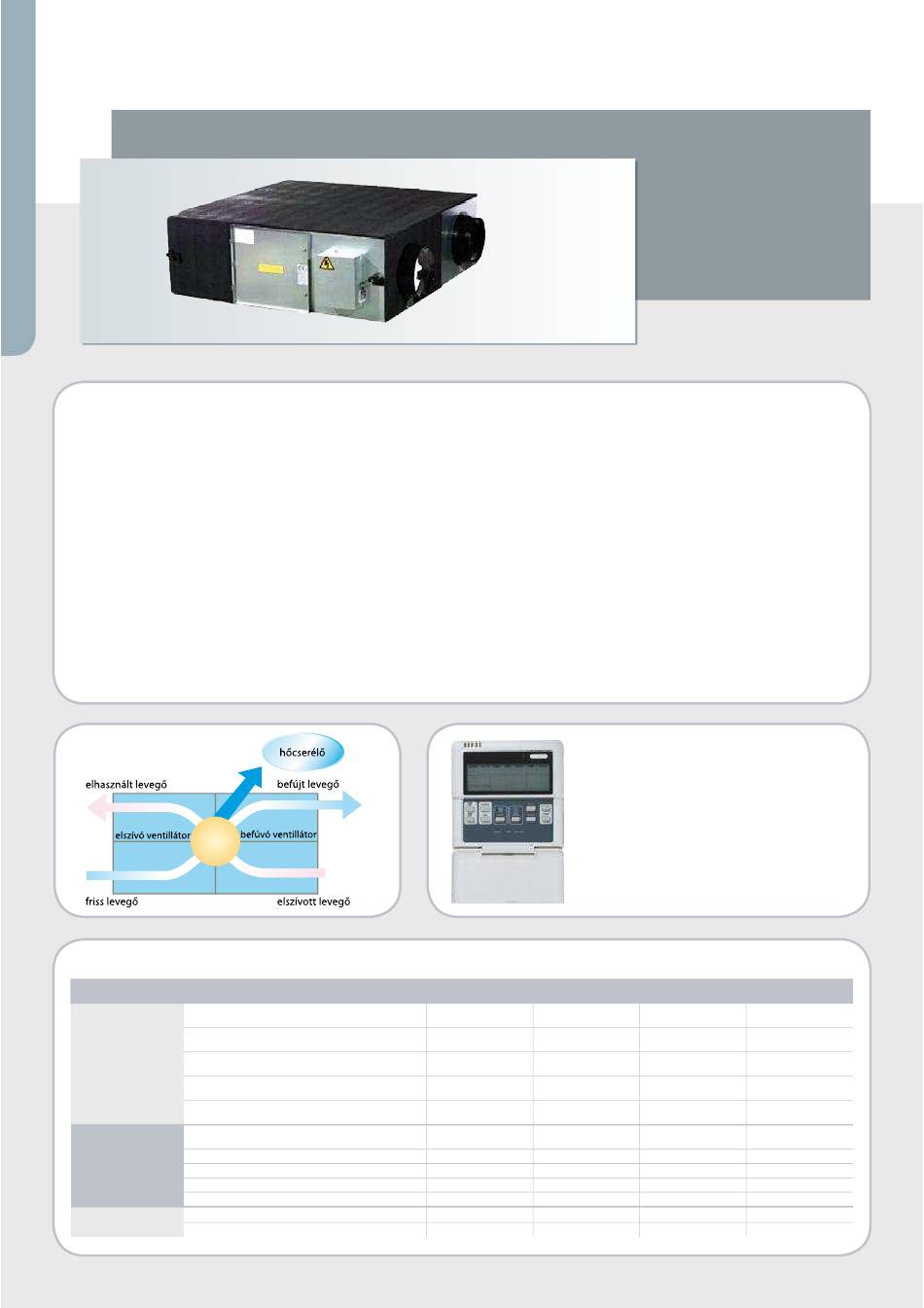

  • Page 2 $%&              !  " 1 2 3 1 B6 5 > 2 C < 8 ? DA B3 =F M 2 F 8 1 N 5 7 ? 5 F 1 7 0 H N =A B3 =F M 2 F 8 1 N 5 7 ? : ;...
  • Page 3 Kezelési útmutató KJR 27B vezetékes távirányító Köszönjük hogy az általunk forgalmazott terméket vásárolta...
  • Page 4 50Hz HRV 16. Távszabályzó KJR-27B/E: A működési tartományok az alábbiak: 1. Tápfeszültség: 5V DC. 2. Környezeti hőmérséklet: -15℃- +43℃. 3. Relatív páratartalom: 40% - 90%. 4. Az elektromos biztonsági követelmények a GB4706.32-2004, GB/T7725-2004 szabvány szerint. 16.1 A vezetékes távirányító gombjai 1 Üzemmód kiválasztó...
  • Page 5 Controller 50Hz HRV 6 Alaphelyzet gomb (rejtett): A jelenlegi beállítások törléséhez egy 1mm átmérőjű pálcával nyomja meg a RESET gombot. Ezzel újra beállítás állapotba kerül a távszabályzó. 7 KI/BE gomb: Kikapcsolt állapotban nyomja meg a gombot. Az OPERATION lámpa világít, és a távszabályzó bekapcsol. egyúttal információt küld az üzemmódról, hőmérsékletről, ventilátor sebességről és időzítésről a szellőztető...
  • Page 6 Controller 50Hz HRV 4 Óra kijelző Alaphelyzetben az aktuális időt mutatja. 4 másodpercre nyomja meg a CLOCK gombot, az óra szekció villog a ▲ és ▼ nyilakkal állítsa be az órát. Nyomja meg ismét a CLOCK gombot, a perc szekció villog, a button ▲...
  • Page 7 4.3 System connection diagram ● Before installation, please confirm all external parts are Table 4-2 stand in their place and without damage. Steel beam and girder structure HRV-200 HRV-1500 WARNING HRV Electric ● The surrounding environment of the unit, especially the...

  • Page 8: Table Of Contents

    MCAC-KTSM-2009-03 Contents Contents 1. Nomenclature..................2 2. Product Schedule ..................2 3. Features....................3 4. Specifications ..................4 5. Dimension ....................7 6. Maintenance Space ................9 7. Wiring Diagrams ..................9 8. Electric Characteristics...............10 9. Operation Condition Limits ..............11 10. Exploded View ..................11 11. Pressure Chart for Air Volume ............13 12.

  • Page 9: Nomenclature

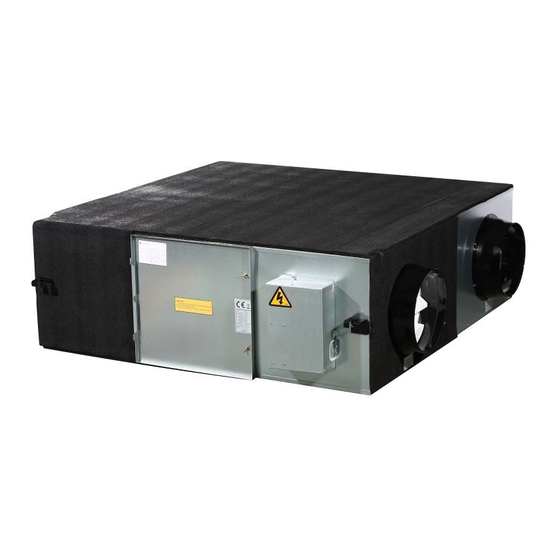

    1. Nomenclature HRV - 200 Air Volume (m /h) Heat Recovery Ventilator 2. Product Schedule Air volume Net dimension Net weight Model Power supply (L×W×H) (unit: mm) (kg) HRV-200 666×264×580 220V-1Ph-50Hz HRV-300 744×270×599 220V-1Ph-50Hz HRV-400 744×270×804 220V-1Ph-50Hz HRV-500 824×270×904 35.5...

  • Page 10: Features

    MCAC-KTSM-2009-03 Features 3. Features HRV (Heat Recovery Ventilation) employ advanced technique and technics, the heat exchanged core forming by special paper that be processed with chemical treatment, which could create the optimum result in temperature, humidity and cooling recovery. High efficiency heat exchanged core: When air flow formed by exhaust air and outdoor air through the heat exchanged core in cross way, because of temperature difference in the two sides of flat partition board, the heat transmission is occurred.

  • Page 11: Specifications

    Specifications MCAC-KTSM-2009-03 4. Specifications Sale Model HRV-200 HRV-300 HRV-400 Code 220082100180 220082100190 220082100200 Power supply V-Ph-Hz 220V-1Ph-50Hz 220V-1Ph-50Hz 220V-1Ph-50Hz Temp. efficiency Cooling Enthalpy efficiency Temp. efficiency Heating Enthalpy efficiency Model YDK-10-4(992A1) YDK20-4A02 YDK40-4C01 Insulation class Safe class IP34 IP34 IP34...
  • Page 12 MCAC-KTSM-2009-03 Specifications Sale Model HRV-500 HRV-800 HRV-1000 Code 220082100210 220082100220 220082100230 Power supply V-Ph-Hz 220V-1Ph-50Hz 220V-1Ph-50Hz 220V-1Ph-50Hz Temp. efficiency Cooling Enthalpy efficiency Temp. efficiency Heating Enthalpy efficiency Model YDK60-4D01 YDK-180-4P01 YDK-10-4(992A1) Insulation class Safe class IP34 IP34 IP34 Indoor fan motor Input Rated current Capacitor...
  • Page 13 Specifications MCAC-KTSM-2009-03 Sale Model HRV-1500 HRV-2000 Code 220082100240 220082100250 Power supply V-Ph-Hz 380V-3Ph-50HZ 380V-3Ph-50HZ Temp. efficiency Cooling Enthalpy efficiency Temp. efficiency Heating Enthalpy efficiency Model KT6-43 No2.5(DWF2.5AL) KT6-43 No2.5(DWF2.5AL) Insulation class Safe class IPX4 IPX4 Indoor fan motor Input 1100 Rated current Capacitor Speed...

  • Page 14: Dimension

    MCAC-KTSM-2009-03 Dimension 5. Dimension 5.1 HRV-200 5.2 HRV-300 HRV-400 HRV-500 HRV-800 HRV-1000 Model HRV-300 Φ144 HRV-400 Φ144 HRV-500 Φ194 HRV-800 1116 1045 Φ242 HRV-1000 1116 1045 1134 1190 Φ242 Heat Recovery Ventilation...
  • Page 15 Dimension MCAC-KTSM-2009-03 5.3 HRV-1500 5.4 HRV-2000 Heat Recovery Ventilation...

  • Page 16: Maintenance Space

    MCAC-KTSM-2009-03 Maintenance Space 6. Maintenance Space 7. Wiring Diagrams 7.1 HRV-200 HRV-300 HRV-400 HRV-500 HRV-800 HRV-1000 Heat Recovery Ventilation...

  • Page 17: Electric Characteristics

    Electric Characteristics MCAC-KTSM-2009-03 7.2 HRV-1500 HRV-2000 8. Electric Characteristics Indoor Unit Power Supply Model Voltage Min. Max. HRV-200 0.625 0.02 HRV-300 0.04 0.56 HRV-400 1.25 0.08 HRV-500 1.25 0.12 HRV-800 0.36 HRV-1000 0.36 HRV-1500 HRV-2000 Remark: MCA: Min. Current Amps. (A) MFA: Max.

  • Page 18: Operation Condition Limits

    Lower than 80% All models -7℃～43℃ -7℃～43℃ If higher than 80%, the surface of indoor unit may be condensed or the condensate will be blown from air outlet. 10. Exploded View 10.1 HRV-200 HRV-300 HRV-400 HRV-500 HRV-800 HRV-1000 Part Name...
  • Page 19 Exploded View MCAC-KTSM-2009-03 10.2 HRV-1500 HRV-2000 Part Name Quantity Part Name Quantity E-part box ass'y 1.12 Signal wire Installation board 1.13 Brown wire Wire clamp 1.14 Yellow wire Wire joint 1.15 Connect wire AC contactor 1.16 Pole Contactor rail Heat exchange core Transformer 3、4 Fan Motor...

  • Page 20: Pressure Chart For Air Volume

    MCAC-KTSM-2009-03 Pressure Chart for Air Volume 11. Pressure Chart for Air Volume HRV-200: HRV-300: Air volum e(m /h) Air volume(m /h) HRV-400: HRV-500: Air volume(m /h) Air volume(m /h) Heat Recovery Ventilation...
  • Page 21 Pressure Chart for Air Volume MCAC-KTSM-2009-03 HRV-800: HRV-1000: 1100 1000 1050 1200 1000 1050 1100 1150 Air volume(m /h) Air volume(m /h) HRV-1500: HRV-2000: 1450 2050 1350 1550 1650 1750 1850 1950 2150 1900 2000 2100 2200 2300 2400 2500 1800 2600 Air volume(m /h)

  • Page 22: Installation

    MCAC-KTSM-2009-03 Installation 12. Installation 12.1 Installation Preparation Warning: The accessories needed for installation must be retained in your custody until the installation work is completed. Do not discard them. Leave the unit inside its packaging while moving, until reaching the installation site. Where unpacking is unavoidable, use a sling of soft material or protective plates together with a rope when lifting, to avoid damage or scratches to the unit.
  • Page 23 Installation MCAC-KTSM-2009-03 12.3 Preparations before Installation Confirm the positional relationship between the unit and suspension bolts. Leave space for servicing the unit and include inspection hatches. (Always open a hole on the side of the electric parts box so that the air filters, heat exchange elements, fans, can easily be inspected and serviced.) Make sure the range of the unit’s external static pressure is not exceeded.

  • Page 24: Wiring

    MCAC-KTSM-2009-03 Wiring 13. Wiring Warning: Before obtaining access to terminal device, all power supply circuits must be interrupted. 13.1 Precautions When Laying Power Supply Wiring A circuit breaker of shutting down power supply to the entire system be installed. A single switch can be used to supply power to units on the same system. However, branch switches and circuit breakers must be selected carefully.
  • Page 25 Wiring MCAC-KTSM-2009-03 13.3 System connection diagram Caution: Never turn screws too tightly, or else the cover would be dented or the Liquid Crystal breaks. Please leave enough space for maintain and upkeep the wire controller. Heat Recovery Ventilation...

  • Page 26: Troubleshooting

    MCAC-KTSM-2009-03 Troubleshooting 14. Troubleshooting 14.1 Lamp flashes: Operation lamp Timer lamp Defrosting lamp Alarm lamp Explanation ○ ○ ○ T4 sensor error ★ ★ ★ ○ ○ T1 sensor error ○ Current protection ★ ★ ○ ○ Phase absent, phase error ★...
  • Page 27 Troubleshooting MCAC-KTSM-2009-03 14.2 Troubleshooting T4 sensor error / T1 sensor error Check whether the wiring of the temp. sensor is break off Connect the wiring well Check whether the resistance of temp. sensor is wrong refer Replace temp. sensor to the Annex 1 Replace main controller panel Current protection Turn off all motors, and...
  • Page 28 MCAC-KTSM-2009-03 Troubleshooting Phase absent, phase error Check: whether Lack of phase Check the connection between power supply and Connect it well. terminal, is the voltage in outdoor terminal is 3 phase. Check: whether Phase sequence error Change the order of two of the wires to power supply. Switch on the unit again.

  • Page 29: Maintenance

    Maintenance MCAC-KTSM-2009-03 15. Maintenance During new use stage, one should check the fan operation regularly. The cleaning regulation for filter mesh depends on local environment. It could be clean by vacuum dirt exhauster or water, if heavy dust accumulates, it should use neutral detergent to clean it, and then dry it in shady and cool place for 20 to 30 minutes and replace it.
  • Page 30 MCAC-KTSM-2009-03 Controller 16.1 Name and functions of buttons on wired controller Mode selection button: It is used to select mode, push the button one time, then the operation modes will change in turn as follows: AUTO→HEAT RECOVERY→EXHAUST→BYPASS→SUPPLY Timer on button: Push the button to set TIMER ON, each time you push the button the time moves forward by o.5 hours.
  • Page 31 Controller MCAC-KTSM-2009-03 16.2 Name and functions of LCD on wired controller Mode select display (MODE): Press MODE button to select “AUTO”, “HEAT RECOVERY”, "EXHAUST","BYPASS", or "SUPPLY” mode. Fan speed display (FAN SPEED) Press FAN SPEED to select fan speed from " ", "LOW","...

  • Page 32: Accessory

    MCAC-KTSM-2009-03 Accessory 17. Accessory Name Quantity shape Purpose Installation and owner’s manual must be delivered to the customer Butt-joint wire of wire control display panel For connect wire control and display control box (6 meters) HRV wire controller For controlling HRV units Annex 1 Characteristic of temp.
