Removing The 3 1/2-Inch Accessible Drive Bracket; Accessing The Drive Slot - NEC POWERMATE DESKTOP - INSTALLATION ZIP DRIVE Installation

T
Press in on the tabs on the sides of the bracket to unlatch it from the chassis (see the
following figure).
T
Pull the bracket out of the front of the chassis.

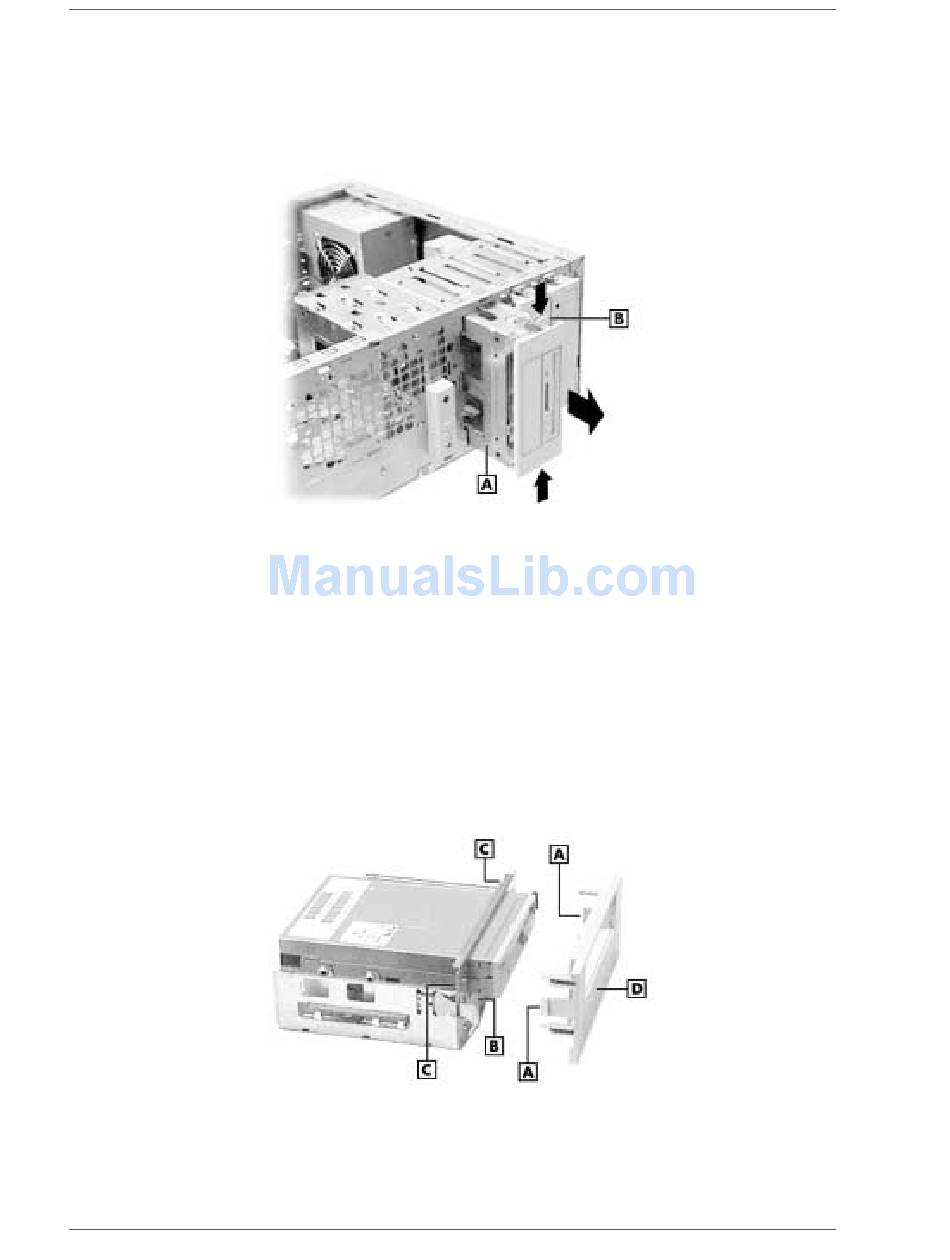

Removing the 3 1/2-inch accessible drive bracket

Access the empty drive slot as follows.
3.
T
Unlatch the bracket cover by pressing the two side tabs inward. To access the tabs,
reach behind the front metal shield (see the following figure).
T
Remove the blank panel from the bracket cover by pressing the panel tabs from inside
the cover and pushing the panel out.
T
Knock out the metal breakaway panel from the drive bracket front shield with a
screwdriver.
2 Installing the Zip Drive
A – Drive Bracket

Accessing the drive slot

A – Bracket Cover Tabs
B – Metal Panel
B – Bracket Tab (left side)
C – Front Metal Shield
D – Blank Panel
