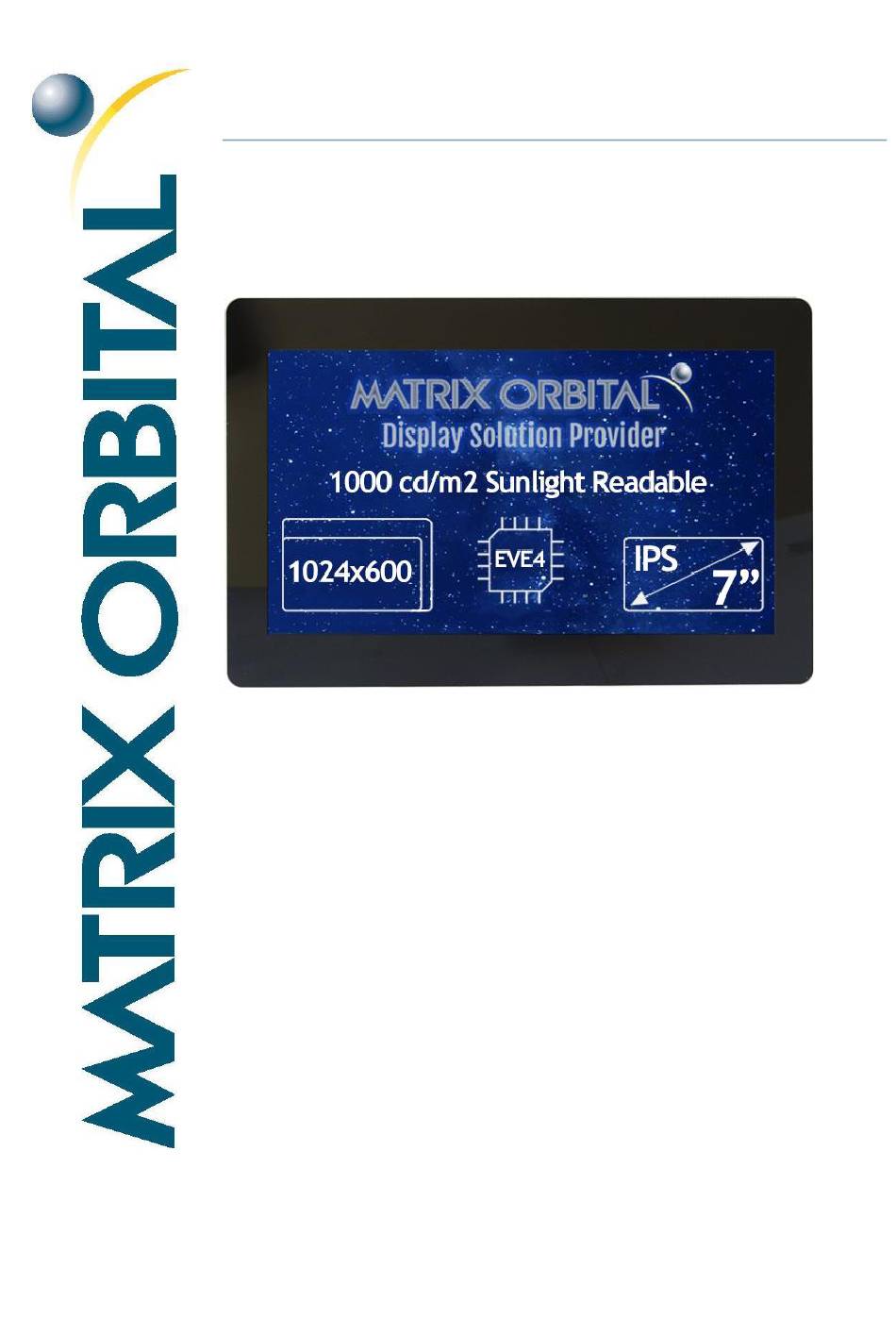

- Page 1 EVE4x-70A/G-IPS-1024600A For all variants of th e EVE4x-70A/G-IPS-1024600A Hardware Manual Revision 1.0 PCB Revision: 1.0 or Higher...
-
Page 2: Table Of Contents
1.2. Block Diagram ..........................................2 2. EVE Graphics Engine ..........................................3 2.1 Programming manual, examples, software from Bridgetek ............................3 2.2 Matrix Orbital Example Code and Support ..................................4 3. Part Numbering............................................4 3.1. Part Numbering Scheme ....................................... 4 3.2. Options............................................4 4. -
Page 4: Customization
On Shore and In-House Design In-House Manufacturing In-House Sales In-House Support In Calgary, Canada Sales Support Online Phone: (403) 229-2737 Phone: (403) 229-2737 Purchasing: www.matrixorbital.com Email: sales@matrixorbital.ca Email: support@matrixorbital.ca Support: www.matrixorbital.com Free support forums https://www.lcdforums.com/forums Example Code on GitHub https://github.com/MatrixOrbital Customization Need a custom solution? No problem! Since we manufacture our products in-house, we are highly flexible, have low MOQ`s and provide you what you need. -
Page 5: Introduction
1. Introduction Hardware manual for the EVE4x-70A-IPS & EVE4x-70G-IPS Displays for PCB 1.x The EVE4x-70G features an easy to mount oversized capacitive touch screen. Panel mounting of the display is seamless and smooth providing a crisp modern look. It easy to clean, sanitize, water and dust resistant. IPS display technology offers the widest viewing angle with no grey inversion, clearer image and crisp colour. -
Page 6: Eve Graphics Engine
(primitive and widgets) that can be used for displaying various menus and screens for a range of products including home appliances, toys, industrial machinery, home automation, elevators, and many more. Matrix Orbital uses both the BT817 and BT818 EVE chips. Model... -
Page 7: Matrix Orbital Example Code And Support
2.2 Matrix Orbital Example Code and Support Free support forums https://www.lcdforums.com/forums/viewforum.php?f=45 Example Code on Github https://github.com/MatrixOrbital 3. Part Numbering The EVE4x has multiple size and touch variants, to ensure that there is an option for every application. If you do not see a combination for your application please contact us. -
Page 8: Development Accessories
NOR Flash. EVE2-SHIELD The Scoodo is an interface module for Matrix Orbital EVE SPI TFT displays to Arduino Uno, STM32-Nucleo and Parallax Propeller Shield products. Please note this is not compatible with –VS models EVE-SPI2BBC A simple breakout board that allows converts the EVE’s 20 pin... -
Page 9: Characteristics & Specifications
5. Characteristics & Specifications 5.1. Power By default, the display must be powered by the 2 pin MATE-N-LOK header or barrel jack and cannot be powered over USB only. If you would like to power the display over USB only, please contact us. Option BLVCC Note... -
Page 10: Headers & Pinout
7. Headers & Pinout Please note, the EVEx-70A, EVE3x-70G, EVE4x-70A and EVE4x-70 share the same interface board, the only exception is that the mounting holes are not present on the EVE3x-70G and EVE4x-70G Header Standard Mate SPI 20-Pin FPC Horizontal 20 pin, 0.5mm, bottom contact, Optional Vertical SPI 2x10-Pin Male 20-pin, 2x10 2.54mm pitch Mini-B USB, Horizontal or Vertical... -
Page 11: 2X10 Male Header
FPC Header Part Number Molex 5051102091 Amphenol ICC (FCI) 10051922-2010ELF FFC Cable Part Number Matrix Orbital FFC20-150-TB Würth Elektronik 687620050002 Symbol Type Function Power Power Input Ground Ground Input SPI clock input MISO Input/output SPI Single mode: SPI MISO output... -
Page 12: Mini-B Usb
7.3. #3 Mini-B USB Standard Mini-B USB header. When the USB is selected, Header #1 and Header #2 are NOT populated! Cable Part Number Mini-B USB 3ft External Cable EXTMUSB3FT Mini-B USB to 4 pin Internal 2.45mm pitch INTMUSB3FT 7.4. #4 MATE-N-LOK USB Optional low profile power header available in vertical or horizontal configuration. -
Page 13: Pwr Led
Header Header Mate Pins 2 pin Micro MATE-N-LOK AMP 2-1445057-2 AMP 1445022-2 794610-1 7.9. PWR LED When the EVE is powered correctly, the LED will turn on. 8. Mounting 8.1. Mounting of EVE4x-70G Series Our G series extended capacitive touch with a double-sided adhesive already applied on the exposed back side of the over-sized cover glass. -
Page 14: Dimensional Drawing
10. Dimensional Drawing 10.1. EVE4x-70A-IPS All dimensions are maximum +/- 0.3mm, typical is +/- 0.15mm maximum Error! Unknown document property name. -
Page 15: Eve4X-70G-Ips
10.2. EVE4x-70G-IPS... -
Page 16: Communication
11. Communication 11.1. SPI The EVE communicates to hosts through SPI. Channel Mode Interface pins Data Max bus speed MSB first MODE 0 MISO, MOSI, SCLK, CS, INT 30 MHz For reading from the EVE, the protocol is: RD-Command/Addr2, Addr1, Addr0, Dummy-Byte, DataX, DataY, DataZ The below diagram depicts the behaviour of both the SPI master and slave in the master read case. -
Page 17: Peripherals
12. Peripherals 12.1. General Purpose Input Outputs The EVE provides 4 GPIO pins that are user configurable. When the Speaker is present GPIO2 is used. When the Haptic is present it uses GPIO3, leaving GPIO1 and GPIO2 available to the user. 12.2. -
Page 18: Tft Display
Parameter -TPR -TPC GT9xx Touch Points Hardness 13. TFT Display 13.1. RGB Displays Used For more detailed information for the TFT’s Electro-Optical Characteristics, Reliability Test Conditions, Inspection Criteria, and Handling Precautions. Please consult the Parallel TFT Datasheet EVE3 Display Parallel TFT Datasheet EVE3x-29A MOP-TFT320102-29A EVE3x-35A... -
Page 19: Contact
14. Contact Sales Support Online Phone: +1-403-229-2737 Phone: +1-403-229-2737 Purchasing: www.matrixorbital.com Email: sales@matrixorbital.ca Email: support@matrixorbital.ca Support: www.matrixorbital.ca 15. Revision History Revision Date Description Author May 4, 2021 Initial Release Henry...
