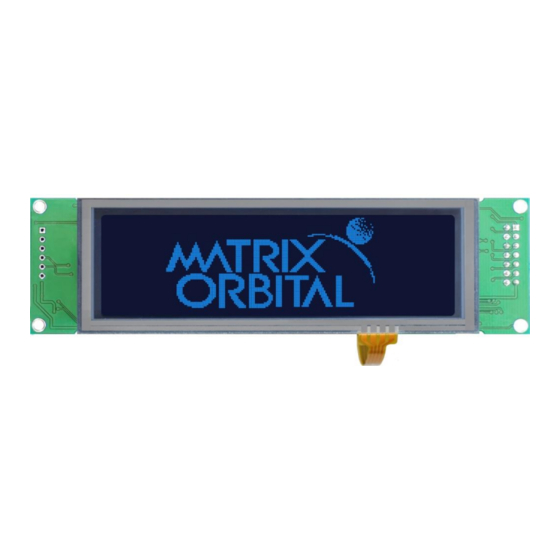

Matrix Orbital GLK24064R-25-1U Technical Manual
  1. Manuals
  2. Brands
  3. Matrix Orbital Manuals
  4. Monitor
  5. GLK24064R-25-1U
  6. Technical manual

Matrix Orbital GLK24064R-25-1U Technical Manual

Hide thumbs Also See for GLK24064R-25-1U:
Table of Contents

Advertisement

Quick Links

Download this manual
GLK24064R-25-1U/GLT24064R-1U
Including GLK24064R-25-1U-USB, GLK24064R-25-1U-422, GLT24064R-1U-USB, and GLT24064R-1U-422
Technical Manual
Revision 1.8
PCB Revision: 1.0 or Higher
Firmware Revision: 8.1 or Higher
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLK24064R-25-1U and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix Orbital GLK24064R-25-1U

Summary of Contents for Matrix Orbital GLK24064R-25-1U

  • Page 1 GLK24064R-25-1U/GLT24064R-1U Including GLK24064R-25-1U-USB, GLK24064R-25-1U-422, GLT24064R-1U-USB, and GLT24064R-1U-422 Technical Manual Revision 1.8 PCB Revision: 1.0 or Higher Firmware Revision: 8.1 or Higher Arrow.com. Downloaded from...
  • Page 2 Revision History Revision Date Description Author January 3, 2018 Correction to Set Non-Standard Baud Rate command Divino October 19, 2015 Revision to Commands for Firmware Revision 8.6 Clark May 21, 2014 Revision to Commands for Firmware Revision 8.5 Martino March 12, 2014 Revision and correction to Colour in Ordering Options Martino September 9, 2013...

  • Page 3: Table Of Contents

    Contents 1 Introduction ............................... 1 2 Quick Connect Guide..........................2 2.1 Available Headers ..........................2 2.2 Standard Module ..........................3 Recommended Parts ..........................3 Serial Connections ..........................3 C Connections ............................. 4 2.3 USB Module ............................5 Recommended Parts ..........................5 USB Connections ...........................
  • Page 4 4.4 GLK Model ............................13 Keypad Header ............................ 13 4.5 GLT Model ............................14 Touch Screen ............................14 Coordinate Mode ..........................14 Region Mode ............................14 4.6 Common Features ..........................15 General Purpose Outputs ........................15 Dallas One-Wire Connector ........................ 15 5 Troubleshooting ............................
  • Page 5 6.13 Display Functions ..........................41 6.14 Scripting ............................42 6.15 Filesystem ............................43 File Transfer Protocol .......................... 46 XModem Transfer Protocol ......................... 47 6.16 Data Security ........................... 49 6.17 Miscellaneous ..........................49 7 Appendix ..............................51 7.1 Command Summary ......................... 51 7.1 Block Diagram ...........................

  • Page 6: Introduction

    User input on the GLK24064R-25-1U is available through a five by five matrix style keypad, or a resistive touch overlay on the GLT24064R-1U. Six general purpose outputs provide simple switchable five volt sources on each model.

  • Page 7: Quick Connect Guide

    2 Quick Connect Guide 2.1 Available Headers Figure 2: GLK24064R-25-1U/GLT24064R-1U Standard Module Header Locations Figure 3: GLK24064R-25-1U/GLT24064R-1U USB and RS422 Model Header Locations Table 1: List of Available Headers Header Mate Population GPO Header None Offered All Models Keypad Header...

  • Page 8: Standard Module

    2.2 Standard Module The standard version of the GLK24064R-25-1U/GLT24064R-1U allows for user configuration of two common communication protocols. First, the unit can communicate using serial protocol at either RS323 or TTL voltage levels. Second, it can communicate using the Inter-Integrated Circuit connect, or C protocol.

  • Page 9: I 2 C Connections

    3. Create.  This time you're on your own. While there are many examples within the Matrix Orbital AppNote section, www.matrixorbital.ca/appnotes, too many controllers and languages exist to cover them all. If you get stuck in development, it is possible to switch over to another protocol on the standard board, and fellow developers are always on our forums for additional support.

  • Page 10: Usb Module

    The USB connection is the quickest, easiest solution for PC development. After driver installation, the GLK24064R-25-1U-USB/GLT24064R-1U-USB will be accessible through a virtual serial port, providing the same result as a serial setup without the cable hassle. To connect to your GLK24064R-25-1U- USB/GLT24064R-1U-USB please follow the steps below.

  • Page 11: Rs422 Module

    Connections section. RS422 Connections The GLK24064R-25-1U-422/GLT24064R-1U-422 provides a robust RS422 interface to the display line. For this interface, a series of six wires are usually screwed into the RS422 terminal block provided. An alternate header is also available to provide local power to a regular or -V unit. To connect to your GLK24064R-25-1U-422/GLT24064R-1U-422, adhere to the steps laid out below.

  • Page 12: Software

    3.1 MOGD# The Matrix Orbital Graphic Display interface, MOGD#, is offered as a free download from www.matrixorbital.ca/software/software_graphic. It provides a simple graphical interface that allows settings, fonts, and bitmaps to be easily customised for any application.

  • Page 13: Firmware Upgrade

    Matrix Orbital sales team. 3.3 Application Notes Full demonstration programs and code are available for Matrix Orbital displays in the C# language from Simple C# AppNote Pack in the Application Note section at www.matrixorbital.ca/appnotes. Difficulty increases from beginner, with the Hello World program, to advanced with the Dallas One-Wire temperature reading application.

  • Page 14: Hardware

    Figure 8: Extended Communication/Power Header The Extended Communication/Power Header provides a standard connector for interfacing to the GLK24064R-25-1U/GLT24064R-1U. Voltage is applied through pins one and four of the four pin Communication/Power Header. Please ensure the correct voltage input for your display by referencing Voltage Specifications before connecting power.

  • Page 15: Power Through Db9 Jumper

    DB-9 Jumper labelled D, as illustrated below. This connection can be made using a zero ohm resistor, recommended size 0603, or a solder bridge. The GLK24064R-25-1U/GLT24064R-1U allows all voltage models to use the power through DB-9 option, see the Voltage Specifications for power requirements.

  • Page 16: Usb Model

    Function Figure 11: Mini USB Connector The GLK24064R-25-1U-USB/GLT24064R-1U-USB comes with a familiar Mini USB Connector to fulfill both communication and power needs. The standard MiniB style header can be connected to any other USB style using the appropriate cable. Most commonly used with a PC, this connection creates a virtual com port that offers a simple power solution with a familiar communication scheme.

  • Page 17: Rs422 Model

    Tx (A) Figure 13: RS422 Header The six pin RS422 interface header of the GLK24064R-25-1U-422/GLT24064R-1U-422 offers power and ground connections as well as two differential pair communication lines. Regular and inverted lines are provided for both receive and transmit signals. Power is supplied locally to the regular or –V variants while the –VPT can receive power over a distance.

  • Page 18: Glk Model

    Row 5 Gnd/Vcc* To facilitate user input, the GLK24064R-25-1U provides a Keypad Interface Connector which allows a matrix style keypad of up to twenty-five keys to be directly connected to the display module. Key presses are generated when a short is detected between a row and a column. When a key press is generated, a character specific to that key press is automatically sent on the Tx communication line.

  • Page 19: Glt Model

    4.5 GLT Model Touch Screen The GLT24064R-1U facilitates user touch input in one of two distinct ways. Coordinate mode will report events by supplying their exact position on the screen. Region mode will report events within defined boundaries on the screen. Both modes are outlined below. Coordinate Mode In coordinate mode all touch events are reported using three single byte values.

  • Page 20: Common Features

    Dallas One-Wire bridge, to allow for an additional thirty two one-wire devices to be connected to the display. This header can be populated with a Tyco 173979 connector at an added cost by custom order only. Please use the Contact section to request more information from the Matrix Orbital sales team. Command Summary Arrow.com.

  • Page 21: Troubleshooting

    See the Manual Override section to reset to default. • Make sure that the start screen is not blank. It is possible to overwrite the Matrix Orbital logo start screen, if this happens the screen may be blank. Try writing to the display to ensure it is functional, after checking the contrast above.

  • Page 22: Communication

    To override the display, please follow the steps below. 1. Disconnect power from your display. 2. Place a jumper on the two manual override pins, for the GLK24064R-25-1U model these are the middle two keypad pins, for the GLT24064R-1U these are the two pins near the keypad header.

  • Page 23: Commands

    6 Commands 6.1 Communication 1.1 Change 254 57 Speed v8.0 Baud Rate FE 39 Speed ■ 9 ASCII Speed Immediately changes the baud rate. Not available in I2C. Baud rate can be temporarily forced to 19200 by a manual override. Speed Byte Valid settings shown below.
  • Page 24 1.6 Set Hardware 254 62 Level v8.0 Flow Control FE 3E Level ■ > Trigger Level ASCII Level Sets the hardware flow control trigger level. The Clear To Send signal will be deactivated once the number of characters in the display buffer reaches the level set; it will be reactivated once all data in the buffer is handled. Level Byte Trigger level as above.

  • Page 25: Text

    1.12 Software 254 253 77 79 117 110 v8.4 Reset FE FD 4D 4F 75 6E ■ ² M O u n ASCII Reset the display as if power had been cycled via a software command. No commands should be sent while the unit is in the process of resetting;...
  • Page 26 2.6 Initialize 254 43 ID X1 Y1 X2 Y2 Font CharSpace LineSpace Scroll v8.3 Text Window FE 2B ID X1 Y1 X2 Y2 Font CharSpace LineSpace Scroll ■ + ASCII ID X1 Y1 X2 Y2 Font CharSpace LineSpace Scroll Designates a portion of the screen to which text can be confined. Font commands affect only the current window, default (entire screen) is window 0.

  • Page 27: Drawing

    2.10 Initialize 254 47 ID X1 Y1 X2 Y2 Vert Dir Font Background CharSpace Delay v8.6 Scrolling Label FE 2F ID X1 Y1 X2 Y2 Vert Dir Font Background CharSpace Delay ■ / ASCII ID X1 Y1 X2 Y2 Vert Dir Font Background CharSpace Delay Designates a portion of the screen that can be easily updated with one line of text, often used to display variables.
  • Page 28 3.2 Draw 254 112 v8.0 Pixel FE 70 ■ p ASCII Draw a single pixel at the specified coordinate using the current drawing colour. Byte Horizontal position of pixel to be drawn. Byte Vertical position of pixel to be drawn. 3.3 Draw a 254 108 X1 Y1 X2 Y2...
  • Page 29 3.7 Draw a 254 128 X1 Y1 X2 Y2 Radius v8.3 Rounded FE 80 X1 Y1 X2 Y2 Radius ■ Ç Rectangle ASCII X1 Y1 X2 Y2 Radius Draw a rounded rectangular frame one pixel wide using the current drawing colour. Byte Leftmost coordinate of the rectangle.
  • Page 30 3.12 Draw a 254 127 X Y XRadius YRadius v8.3 Filled Ellipse FE 7F X Y XRadius YRadius ■ ASCII X Y XRadius YRadius Draw an ellipse using the current drawing colour. Byte Horizontal coordinate of the ellipse centre, zero indexed from left. Byte Vertical coordinate of the ellipse centre, zero indexed from top.
  • Page 31 3.15 Initialize 9- 254 115 ID Type X1 Y1 X2 Y2 Fore 9Slice Back 9Slice v8.3 Slice Bar Graph FE 73 ID Type X1 Y1 X2 Y2 Fore 9Slice Back 9Slice ■ s ASCII ID Type X1 Y1 X2 Y2 Fore 9Slice Back 9Slice Initialize a 9-slice bar graph in memory for later implementation.

  • Page 32: Fonts

    3.18 Update a 254 111 ID Value v8.3 Strip Chart FE 6F ID Value ■ o ASCII ID Value Shift the specified strip chart and draw a new value. Byte Chart identification number, value between 0 and 7. Value Short Value to add to the chart.

  • Page 33: Font File Creation

    Front files alter the style of text and appearance of the display. By default, a Matrix Orbital graphic display is loaded with a small filled font in slot one and a future bk bt 16 style in slot two. Both are available at www.matrixorbital.ca/software/graphic_fonts.

  • Page 34: Bitmaps

    The character data is a binary graphical representation of each glyph in a font. Each character is drawn on a grid containing as many rows as the height specified in the header and as many columns as the width specified in the character table. Cells are drawn by writing a one in their location and cleared by setting a value of zero.

  • Page 35: Bitmap File Creation

    Bitmap file data, see the Bitmap File Creation example. Bitmap File Creation In addition to fonts, Matrix Orbital graphic displays can also hold a number of customizable bitmaps to provide further stylistic product integration. Like font files, bitmaps files are most easily uploaded to a display using MOGD#.

  • Page 36: Bitmap Masking

    Bitmap Masking Like a regular bitmap, a mask can be loaded to the display and used to create a more polished result when drawing in populated areas. When defining a mask, all active values will clear any background information, while any inactive values will leave it untouched. This is best described with an example. Figure 19: Drawing with a Mask Figure 18: Drawing without a Mask 6.6 9-Slices...

  • Page 37: 9-Slice File Creation

    9-Slice File Creation A 9-slice file is a scalable graphic composed of nine different bitmap sections as shown below. Figure 20: Adobe 9-slice Representation The 9-slice file format requires that the bitmap dimensions and the locations of divisions be defined before a graphic is uploaded normally as shown in the Bitmap File Creation example.
  • Page 38 7.2 Display 254 193 ID File v8.3 Animation FE C1 ID File ■ ┴ ASCII ID File Load the first frame of the specified animation in its stopped state at the specified location. If an animation is already in use at that index it will be overwritten. Use the start animation command to play the displayed file. Byte Unique animation identification number, value between 0 and 15.

  • Page 39: Animation File Creation

    Animation File Creation An animation file is a series of bitmaps, each displayed for a specified length of time within a continuous rotation. The file begins by specifying the number of frames, the offset of each block of bitmap information, and the time to display each frame. After which bitmap headers and data are transmitted for each frame, in the same manner as the Bitmap File Creation example.

  • Page 40: Dallas One-Wire

    6.9 Dallas One-Wire 9.1 Search for a 254 200 2 v8.0 One-Wire Device FE C8 02 ■ ╚ ASCII Sends a search query to each of the up to 32 devices on the one wire bus. Any connected device will respond with an identification packet.

  • Page 41: Piezo Buzzer

    6.10 Piezo Buzzer 10.1 Activate 254 187 Frequency Time v8.0 Piezo Buzzer FE BB Frequency Time ■ ╗ ASCII Frequency Time Activates a buzz of specific frequency from the onboard piezo buzzer for a specified length of time. Frequency Short Frequency of buzz in hertz.
  • Page 42 11.3 Poll Key 254 38 v8.0 Press FE 26 ■ & ASCII Reads the last unread key press from the 10 key display buffer. If another key is stored in the buffer the MSb will be 1, the MSb will be 0 when the last key press is read. If there are no stored key presses a value of 0 will be returned.

  • Page 43: Touchpad

    11.8 Assign Keypad 254 213 Key Down Key Up v8.0 Codes FE D5 Key Down Key Up ■ ╒ ASCII Key Down Key Up Assigns the key down and key up values sent to the host when a key press is detected. A key up and key down value must be sent for every key, a value of 255 will leave the key unaltered.
  • Page 44 12.2 Set Region 254 136 Mode v8.0 Reporting Mode FE 88 Mode ■ ê ASCII Mode Defines the events transmitted in region mode. Allows only events specified to return a value to the host. Key down values are transmitted for press and drag events, key up for release, and the value 255 for out of region. Mode Byte Defines the events reported, see Region Reporting Mode.
  • Page 45 12.6 Create a 254 186 ID Type X Y Width Height Control Width Min Max v8.3 Slider FE BA ID Type X Y Width Height Control Width Min Max ■ ║ ASCII ID Type X Y Width Height Control Width Min Max Draw a slider on the screen that responds visually and numerically when tapped or slid.

  • Page 46: Display Functions

    12.10 Set 254 138 Threshold v8.0 Pressure FE 8A Threshold ■ è Threshold ASCII Threshold Sets the pressure required to trigger a touch event. Threshold Short Pressure threshold value. Default is 1000. 12.11 Run 254 139 v8.0 Touchpad FE 8B ■...

  • Page 47: Scripting

    13.5 Set Backlight 254 130 Red Green Blue v8.0 Colour FE 82 Red Green Blue ■ é ASCII Red Green Blue Set the colour of a tri-colour backlight. Only for tri-colour displays. Default is white (255, 255, 255). Byte Brightness level of Red from 0(Dim) to 255(Bright). Green Byte Brightness level of Green from 0(Dim) to 255(Bright).

  • Page 48: Filesystem

    14.3 Set Scripted 254 142 ID X Y Width Height Type Down Script Up Script v8.3 Button FE 8E ID X Y Width Height Type Down Script Up Script ■ Ä ASCII ID X Y Width Height Type Down Script Up Script Create a button region that responds to a touch event by executing an uploaded script.
  • Page 49 15.4 Get Filesystem 254 179 v8.0 Directory FE B3 ■ │ ASCII Returns a directory to the contents of the filesystem. The total number and type of each entry will be provided. Response Short Number of entries. Byte(s) [8] 8 identification bytes for each entry. Table 39: Filesystem Identification Bytes Byte Description...
  • Page 50 15.8 File 254 180 Old Type Old ID New Type New ID v8.0 Move FE B4 Old Type Old ID New Type New ID ■ ┤ ASCII Old Type Old ID New Type New ID Used to move a single file and/or alter the type of an existing file. Old ID location must be valid and new ID empty. Old Type Byte Original file type, value between 0 and 1023, see File Types .

  • Page 51: File Transfer Protocol

    Once a bitmap or font file has been created and paired to its command it must be sent using a file protocol developed specifically for Matrix Orbital displays. Once a file upload command has been sent requesting a unique reference number and specifying the file size required, the display will respond indicating whether it has enough room to save the file or not.

  • Page 52: Xmodem Transfer Protocol

    XModem Transfer Protocol In addition to its original simple upload format, Matrix Orbital has added an XModem based protocol. This facilitates much faster download speeds by increasing the packet size from 1 byte to 128 bytes and using only a two byte CRC for error checking, greatly increasing throughput.
  • Page 53 Table 45: XModem File Upload Protocol Table 46: XModem File Download Protocol Host Display Comments Host Display Comments Command Prefix Command Prefix XModem Upload Command XModem Download Command Command Byte One Command Byte One Command Byte Two Command Byte Two Command Byte Three Command Byte Three File ID LSB...

  • Page 54: Data Security

    6.16 Data Security 16.1 Set 254 147 Switch v8.0 Remember FE 93 Switch ■ ô ASCII Switch Allows changes to specific settings to be saved to the display memory. Writing to non-volatile memory can be slow and each change consumes 1 write of at least 100,000 available. The Command Summary outlines which commands are saved always, never, and when this command is on only.
  • Page 55 ■ 7 ASCII Causes display to respond with its module number. Response Byte Module number, see Sample Module Type Responses for a partial list. Table 50: Sample Module Type Responses GLT24064R-1U GLK24064R-25-1U GLT24064R-1U-USB GLK24064R-25-1U-USB GLT24064R-1U-422 GLK24064R-25-1U-422 17.1 Read 254 184 v8.3...

  • Page 56: Appendix

    7 Appendix 7.1 Command Summary Available commands below include identifying number, required parameters, the returned response and an indication of whether settings are remembered always, never, or with remember set to on. Table 51: Communication Command Summary Name ASCII Parameters Response Remembered Change Baud Rate...
  • Page 57 Table 53: Drawing Command Summary Name ASCII Parameters Response Remembered Set Drawing Colour Byte None Remember On Draw Pixel Byte[2] None Never Draw a Line Byte[4] None Never Continue a Line Byte[2] None Never Draw a Rectangle Byte[5] None Never Draw a Filled Rectangle Byte[5] None...
  • Page 58 Table 56: 9-Slice Command Summary Name ASCII Parameters Response Remembered Upload a 9-Slice File 92 3 5C 03 Short, Integer, Byte[] Always 9-Slice File Creation Upload a 9-Slice Mask 92 6 5C 06 Short, Integer, Byte[] Always 9-Slice File Creation Display a 9-Slice Short, Byte[4] None...
  • Page 59 Table 61: Keypad Command Summary Name ASCII Parameters Response Remembered Auto Transmit Key Presses On None None Remember On Auto Transmit Key Presses Off None None Remember On Poll Key Press & None Byte Never Clear Key Buffer None None Never Set Debounce Time Byte...
  • Page 60 Table 65: Filesystem Command Summary Name ASCII Parameters Response Remembered Delete Filesystem 33, 89, 33 21, 59, 21 !, Y, ! None None Always Delete a File ¡ Byte, Short None Always Get Filesystem Space » None Integer Never │ Get Filesystem Directory None Byte[][8]...

  • Page 61: Block Diagram

    7.1 Block Diagram Figure 21: Functional Diagram 7.2 Environmental Specifications Table 68: Environmental Limits Standard *Extended (-E) Operating Temperature 0°C to +50°C -20°C to +70°C Storage Temperature -10°C to +60°C -30°C to +80°C Operating Relative Humidity Maximum 90% non-condensing *Note: The Extended Temperature option is not available for any variant of the GLT24064R-1U.

  • Page 62: Dimensional Drawings

    7.4 Dimensional Drawings Figure 22: Display Dimensional Drawing Figure 23: Standard Model Dimensional Drawing Command Summary Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 63 Figure 24: USB Model Dimensional Drawing Figure 25: RS422 Model Dimensional Drawing Command Summary Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 64: Optical Characteristics

    7.1 Optical Characteristics Table 72: Display Optics Module Size 138.00 x 38.00 x 26.91 Viewing Area 98.0 x 28.4 Active Area 93.57 x 24.93 Pixel Size 0.36 x 0.36 Pixel Pitch 0.39 x 0.39 Viewing Direction O’clock Viewing Angle -30 to +30 °...

  • Page 65: Accessories

    8.3 Accessories Power Table 75: Power Accessories Standard Power Cable Communication Table 76: Communication Accessories CSS1FT 1 ft. Serial Cable CSS4FT 4 ft. Serial Cable EXTMUSB3FT Mini-USB Cable INTMUSB3FT Internal Mini-USB Cable Extended Serial Communication/5V ESCCPC5V Power Cable Breadboard Cable Command Summary Arrow.com.
  • Page 66 Peripherals Table 77: Peripheral Accessories KPP4x4 16 Button Keypad Mounting Table 78: Mounting Accessories B24064-BK 24064-1U Black Mounting Bracket Command Summary Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 67: Definitions

    C, provides reduced data rates at a greater distance. One wire carries data, while two others supply power and ground. Matrix Orbital tests non-parasitic devices only, those that do not draw power from the data line; however, some parasitic devices may work.
