Summary of Contents for Ossila L2009

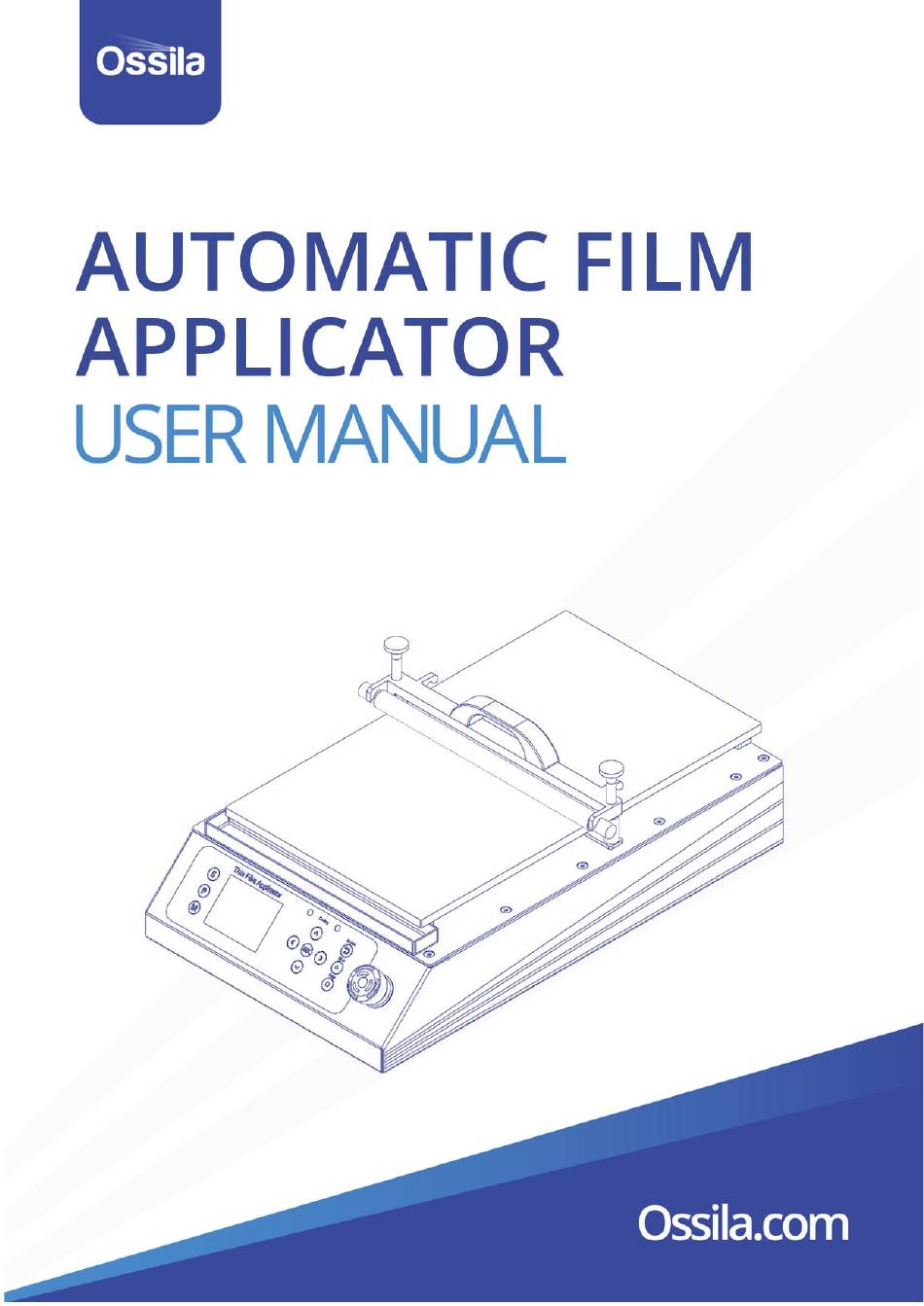

- Page 1 Manual Version: 1.0.0 Product code: L2009 Product Version: 1.0 Software Version: 1.0...
-
Page 2: Table Of Contents
Ossila Automatic Film Applicator User Manual Contents Contents .............................. 2 EU Declaration of Conformity (DoC) ..................3 Overview ............................. 6 Specifications ..........................8 Warranty ............................. 9 Unpacking ..........................10 Packing List ..........................10 Damage Inspection ........................10 Safety ............................11 Use of Equipment ........................ -
Page 3: Eu Declaration Of Conformity (Doc)
Ossila Automatic Film Applicator User Manual EU Declaration of Conformity (DoC) Company Name: Ossila BV Postal Address: Biopartner 3 building, Galileiweg 8 Postcode: 2333 BD Leiden Country: The Netherlands Telephone number: +31 (0)71 3322992 Email Address: info@ossila.com declare that the DoC is issued under our sole responsibility and belongs to the following... - Page 4 EU-harmoniseringslovgivning, på den/de foregående side(r) i dette dokument. [Deutsch] EU-Konformitätserklärung Hersteller: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. erklären in alleiniger Verantwortung, dass das aufgeführte Gerät konform der relevanten EU-Harmonisierungsgesetzgebung vorangegangenen Seiten dieses Dokuments ist.
- Page 5 Ossila Automatic Film Applicator User Manual [Norsk] EU-samsvarserklæ ring Produsent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. Erklærer under vårt eneansvar at utstyret oppført er overholdelse med relevant EU-harmoniseringslavverk som står på de(n) forrige siden(e) i dette dokumentet.
-
Page 6: Overview
Figure 2.1 Ossila Automatic Thin Film Applicator The automatic thin film applicator is designed to be simple to use; with a quick load and unloading of the applicator;... - Page 7 Ossila Automatic Film Applicator User Manual with simple to use software that allows users to set up programs with a given speed and travel distance. There are also options for setting between soft stops and hard stops, setting a specific home position for the start of coatings, and the ability to set the direction of travel to either forward or backwards.
-
Page 8: Specifications
Ossila Automatic Film Applicator User Manual Specifications The Automatic Thin Film Applicator specifications are shown in Table 3.1 Specification Value Maximum Coating Width 200 mm Maximum Travel Length 290 mm Minimum Stage Speed 0.5 mm s Maximum Stage Speed 250 mm s... -
Page 9: Warranty
It will also void your equipment’s warranty. If servicing or repair is needed, please contact Ossila to organise a return. Our service department will also quote for any repairs to faults that occur outside the 2-year warranty period. -
Page 10: Unpacking
Upon receiving the unit, examine the components for evidence of shipping damage. If damage has occurred, please contact Ossila directly for further action. The shipping comes with a shock indicator to show if the package has received an impact during transportation. -
Page 11: Safety
Ossila Automatic Film Applicator User Manual Safety Warning • Only use the 24V power adapter and power cord supplied with the unit • If using flammable or hazardous solvents, users are expected to be trained in their usage and carry out a risk assessment •... -
Page 12: Hazard Icons
Make sure that the power outlet for this cord is readily accessible to the operator. Servicing should only be performed by an Ossila engineer. Any modification or alteration may damage the equipment, cause injury, or death. It will also void your equipment’s warranty. -
Page 13: Emergency Stop
Ossila Automatic Film Applicator User Manual Emergency Stop The Automatic Thin Film Applicator is fitted with an emergency stop button that can be pressed in the event of emergencies e.g. the trapping of objects within pinch points. When pressed, the emergency stop button cuts off the power to the system and a buzzer will turn on to indicate that the button has been pressed. -
Page 14: Pinch Points
Ossila Automatic Film Applicator User Manual 6.5.1 Pinch Points The moving stage present the risk of pinch points to the user. It is recommended that any loose articles of clothing and hair are tied back and secured before using the system. -
Page 15: Maintenance
Ossila Automatic Film Applicator User Manual Maintenance Cleaning Maintenance consists of periodic cleaning. The exterior of the instrument can be wiped with a clean, dry cloth to remove any oil, grease or dirt. Small amounts of solvent can be used to clean the stage and head once it has cooled to room temperature. -
Page 16: Installation
Ossila Automatic Film Applicator User Manual Installation The following procedure should be followed when setting up the unit for the first time. 1. Place the unit on a solid, level surface. If necessary, the feet can be rotated to adjust their height and level the unit. -
Page 17: Operating The Automatic Film Applicator
Ossila Automatic Film Applicator User Manual Operating the Automatic Film Applicator User Interface The control panel of the Automatic Film Applicator is shown in Figure 9.1. It consists of an LCD display, 11 control buttons and an indicator. The functions of the buttons are described in Table 9.1. -
Page 18: Program Operation
Table 9.1 Operational buttons and their associated functions. Program Operation 9.2.1 Turning the unit on 1. Turn the Ossila Automatic Film Applicator power switch ON (position ‘1’). Th e bootup screen will show. 2. After the bootup, reset the stage to its ‘home’... -
Page 19: Settings Mode
Ossila Automatic Film Applicator User Manual 3. Whilst the stage is moving to the ‘home’ position, the following message will be shown. 4. Once the system is at the ‘home’ position, the Program Mode page will be prompted. 9.2.2 Settings Mode The Settings Mode allows the user to input parameters related to the hotplate operation, syringe properties and stage homing. - Page 20 Ossila Automatic Film Applicator User Manual 2. The first option in settings allows the users to adjust the LCD brightness. To edit press , to change the value press buttons. This will change the value by 5% each time. 3. Home offset shows the current home position offset.
-
Page 21: Manual Mode
Ossila Automatic Film Applicator User Manual 6. System Temperature tells you the current board temperature. 7. System Info displays contact information and firmware version of the system. 9.2.3 Manual Mode Manual Mode allows direct control the stage positions. Entering edit mode on the speed parameter will turn the text of the parameter red. -
Page 22: Program Mode
Ossila Automatic Film Applicator User Manual 2. The stage speed adjusted. To change the speed, press to enter edit mode and use the navigate to the digit to edit and to change the value. 3. To move the stage position manually, press while not in edit mode. - Page 23 Ossila Automatic Film Applicator User Manual 2. To change the number of steps in the program, navigate to steps line and press to edit the value. Press change the value. Press to exit edit mode. 3. To change the coating length or the...
-
Page 24: Automatic Film Applicator Troubleshooting
If it has blown, blown replace with a suitably rated 2A slow blow fuse Contact Ossila for a replacement power The power supply adapter has a fault supply adapter If all the above causes have been... -
Page 25: Revision History
Ossila Automatic Film Applicator User Manual 11. Revision History Date Description 1.0.0 19/01/2025 Initial release version Ossila.com Ossila Limited © 2019...
