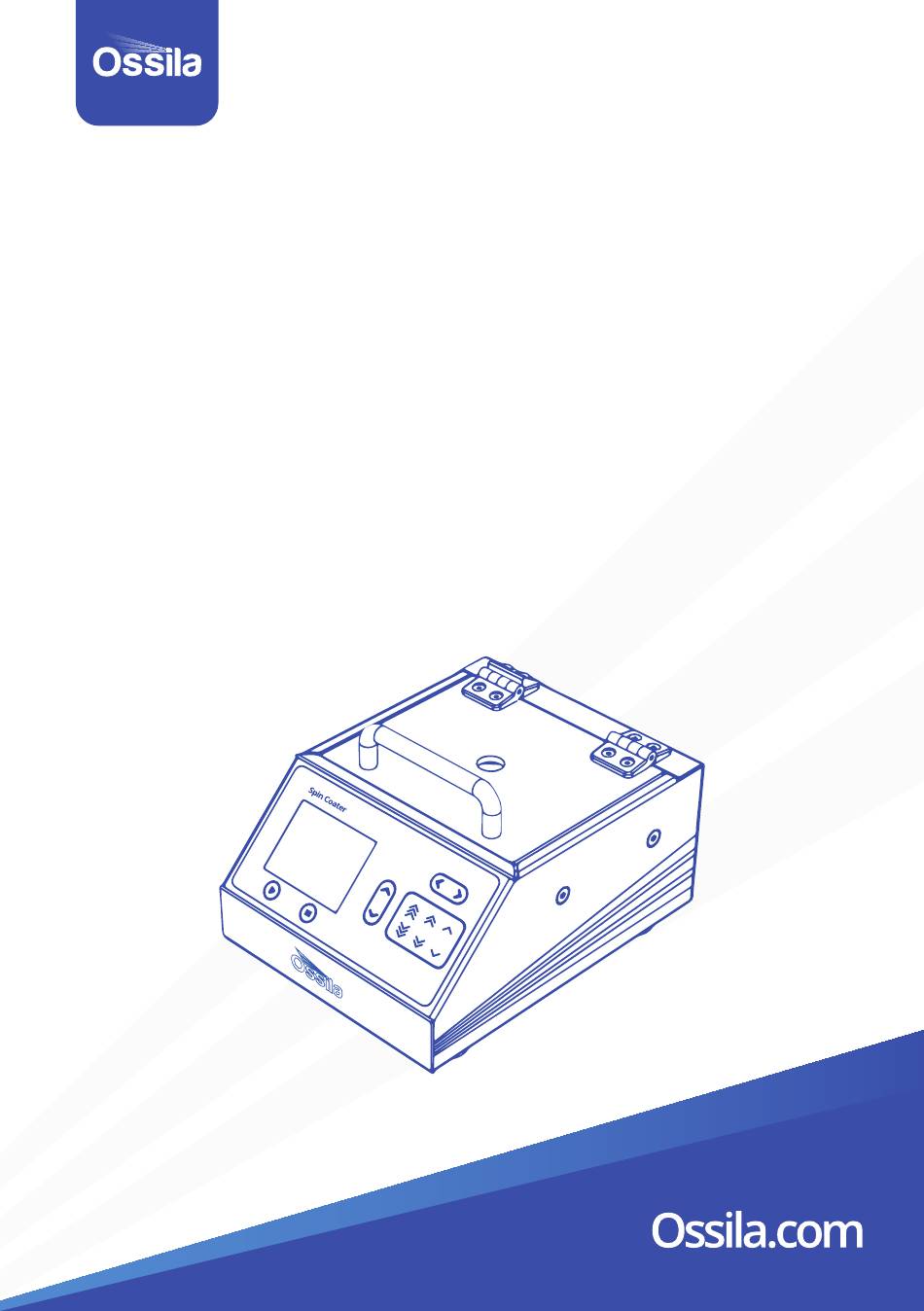

- Page 1 SPIN COATER USER MANUAL Manual Version: 3.0.E Product Code: L2001A3 Product Version: 3.0 Software Version: 3.0...
-
Page 2: Table Of Contents
Contents 1. Overview ............................4 2. EU Declaration of Conformity (DoC) ..................5 3. Safety ..............................8 3.1 Warning ..............................8 3.2 Use of Equipment ..........................8 3.3 Hazard Icons ............................8 3.4 General Hazards ..........................9 3.5 Servicing ...............................9 3.6 Health and Safety – Installation ....................10 3.7 Health and Safety –... -
Page 3: Overview
Compact & portable, the Spin Coater will help you optimise space in the glovebox or on the workbench without compromising on functionality – making it the ideal solution for busy labs with limited space. -
Page 4: Eu Declaration Of Conformity (Doc)
Telephone number: +44 (0)114 2999 180 Email Address: info@ossila.com declare that the DoC is issued under our sole responsibility and belongs to the following product: Product: L2001A3 / Spin Coater Serial number: L2001A-3000-3000-3001- xxxx Object of declaration: L2001A3 / Spin Coater... - Page 5 хармонизиране, посочено на предходната(-ите) страница(-и) на настоящия документ. [Čeština] Prohlášení o shodě EU Výrobce: Ossila Ltd., Solpro Business Park, Windsor Street, S4 7WD, Spojené Království Prohlašujeme na vlastní odpovědnost, že uvedené zařízeni je v souladu s příslušnými harmonizačními předpisy EU uvedenými na předchozích stranách tohoto dokumentu.
- Page 6 [Por tuguês] Declaração de Conformidade UE Fabricante: Ossila Ltd., Solpro Business Park, Windsor Street, S4 7WD, Reino Unido Declara sob sua exclusiva responsabilidade que o equipamento indicado está em conformidade com a legislação de harmonização relevante da UE mencionada na(s) página(s) anterior(es) deste documento.
-
Page 7: Safety
Temperatures of 5°C to 40°C; maximum relative humidity of 80% up to 31°C. The Spin Coater is supplied with a power adapter and a power cord for the country of purchase (in accordance with European Commission regulations and British Standards). Use of any other electrical power cables or adaptors is not recommended. -
Page 8: General Hazards
3.4 General Hazards Before installing or operating the Spin Coater, there are several health and safety precautions which must be followed and executed to ensure safe installation and operation. WARNING: Improper handling when operating or servicing this equipment can result in serious injury. -
Page 9: Health And Safety - Installation
There is a risk of substances flying out of the bowl. 3.8 Health and Safety – Servicing Servicing should only be performed by an Ossila engineer. Any modification or alteration may damage the equipment, cause injury, or death. It will also void your equipment’s warranty. -
Page 10: Damage Inspection
4.2 Damage Inspection Examine the components for evidence of shipping damage. If damage has occurred, please contact Ossila directly for further action. 5. Specifications The Spin Coater specifications are shown in Table 5.1. Table 5.1. Spin Coater specifications. Spin Coater... -
Page 11: System Components
The Spin Coater L2001A comprises three items: the Ossila spin coater (Figure 6.1), power adapter (Figure 6.2) and the Ossila spin coater chuck (Figure 6.3). The Spin Coater is powered from a 24V mains power adapter. The power supply adapter is supplied with a power plug that is suitable for the country of purchase. -
Page 12: Installation
Before plugging in the spin coater, ensure the power switch on the unit is switched to the ‘0’ position (off). Connect the power adapter to the power jack on the back panel of the Spin Coater unit (see Figure 7.1). Refer to the label on the power adapter for electrical requirements. -
Page 13: Operation
8. Operation 8.1 Overview A top-down view of the Spin Coater is shown in Figure 8.1, with all the relevant components highlighted. Figure 8.1 Spin Coater top-down image. Glass lid for solvent resistance Compact steel casing Solvent-safe polypropylene bowl and surround... -
Page 14: User Interface
8.2 User Interface Figure 8.2 shows the front panel of the spin coater, with a description of the functionality of each button. Figure 8.2 Spin Coater screen and keypad. Start button is used to initiate a programmed sequence. While a program is running, the display will show the message “RUNNING”... -
Page 15: Programming And Usage
8.3 Programming and Usage The Ossila Spin Coater has two pre-set experimental programs to get you started. Table 8.1. Pre-set programs User no. Program No. Step No. TIME (sec) User 01 Program 01 2000 Program 02 2000 5000 (I) Selecting a User Profile (“User”) To select the user profile of your choice, press either the left or right “User”... - Page 16 (II) Selecting a Program Each user profile can store up to 10 programs. To choose between program numbers, navigate to the “Program” line and press the up or down buttons. To edit the program, you can alter the number of steps in a program by using the following buttons .
- Page 17 Navigate to the “Step” line by using the “Select” keys to choose which step number is to be edited. The step number can be selected by using the following keys: Navigate to the “Speed” line to change the speed of the current step. Use the “Value” buttons to increase or decrease the value.
- Page 18 Navigate back to the “Step” line using the cursor. Then, increase the number of steps to set the Speed and Time. (III) Start Program Once everything is set and ready, press “Start” to run the program. At the bottom of the display, the current elapsed time and current speed will be shown.
-
Page 19: Maintenance
The only user-serviceable part in this unit is the fuse (accessible externally). If the unit is faulty, please return it to Ossila. We will promptly quote to repair any faults that occur outside the 2-year warranty period. Parts subject to normal wear and tear (Spin Coater chucks) are not covered by the warranty. -
Page 20: Storage Conditions
9.3 Storage Conditions The Spin Coater should be kept in dry conditions; away from direct sources of heat or sunlight, and in such a manner as to preserve the working life of the instrument. 10. Troubleshooting Table 10.1. Troubleshooting guidelines for the Ossila Spin Coater... -
Page 21: Related Products
Synthetic Quartz Coated Substrates Substrates Silicon substrates with thermal oxide Flat glass substrates coated with 20 nm layer pre-cut to fit the Ossila OFET of SiO2 to help with surface wetting and fabrication systems. prevent ion migration. Product code: S146 Product code: S151 11.2 Related Equipment...
