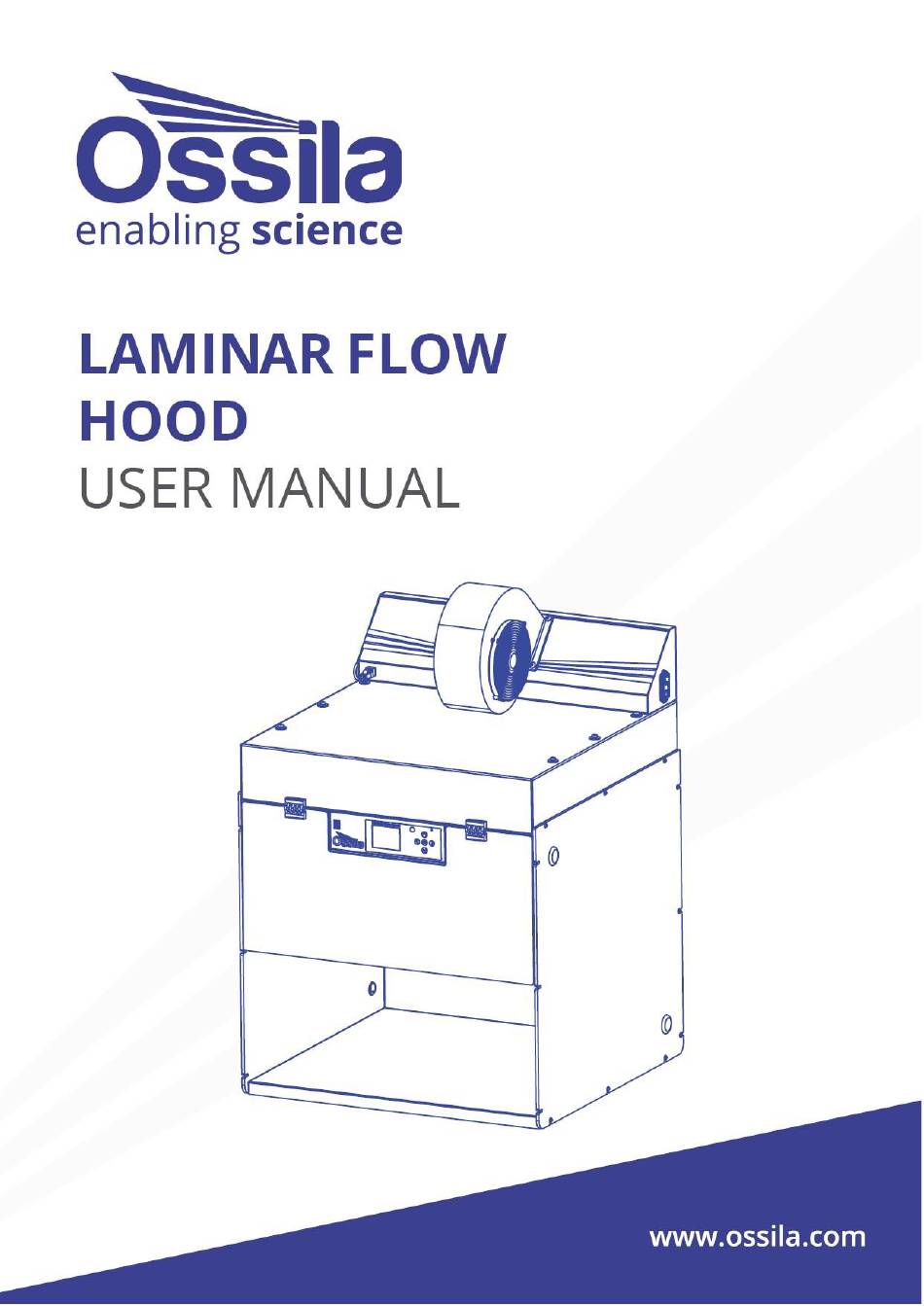

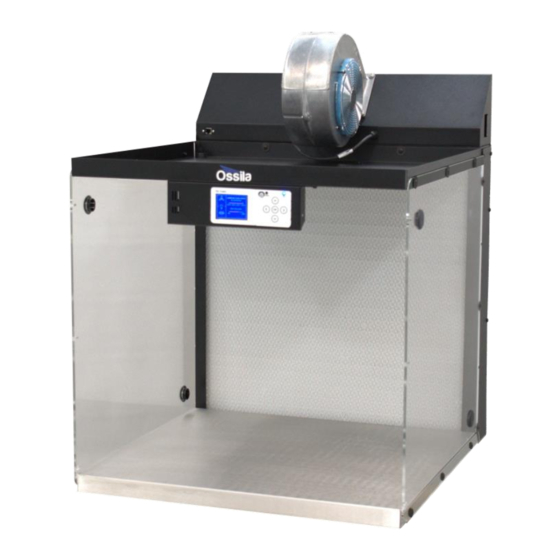

- Page 1 Manual Version: 1.0.A Product code: L2008A1 Product Version: 1.0 Software Version: 1.0...
-
Page 2: Table Of Contents
Contents Contents ............................2 Overview ..........................4 EU Declaration of Conformity (DoC) ..................6 [Dansk] EU-overensstemme lseserklærin g ................7 [Deutsch] EU-Konformitätserklärung ..................7 [Eesti keel] ELi vastavusavaldus ..................... 7 [Ελληνικά] Δήλωση πιστότητας ΕΕ ..................7 [Español] Declaración de conformidad UE ................7 [Français] Déclaration de conformité... - Page 3 Operation ........................... 34 Overview ..........................34 User Interface ........................35 Practical Operation ......................36 Initial Operation ........................36 Quick Settings Options ......................37 UV Light Operation ......................37 Settings Menu ........................38 Filter Change Menu ......................39 Maintenance ........................41 Cleaning ..........................
-
Page 4: Overview
Table 1. ISO 14644 vs FED STD 209E particle count guidelines The Ossila Laminar Flow Hood operate at ISO Class 5 cleanliness, this cleanliness is defined by the design of the system and the filtration used. For most ISO Class 5 systems HEPA filters are used typically of class H13 but some use H14 for a finer filtration. - Page 5 It is these filters that allow the system to operate and generate a clean environment. The general principal behind the laminar flow hood is that air is passed through a filter which remove particulates from the air. This air is then passed over a surface at a speed which ensure air flow is unidirectional and laminar, rather than turbulent.
-
Page 6: Eu Declaration Of Conformity (Doc)
Email Address: declare that the DoC is issued under our sole responsibility and belongs to the following product: Product: Laminar Flow Hood (L2008A1) Serial number: L2008A1-xxxx Object of declaration Laminar Flow Hood (L2008A1) The object of declaration described above is in conformity with the relevant Union... -
Page 7: [Dansk] Eu-Overensstemme Lseserklærin G
EU-harmoniseringslovgivning, på den/de foregående side(r) i dette dokument. [Deutsch] EU-Konformitätserklärung Hersteller: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. erklären in alleiniger Verantwortung, dass das aufgeführte Gerät konform der relevanten EU-Harmonisierungsgesetzgebung vorangegangenen Seiten dieses Dokuments ist. -
Page 8: [Slovenščina] Izjava Eu O Skladnosti
[Slovenščina] Izjava EU o skladnosti Proizvajalec: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. s polno odgovornostjo izjavlja, da je navedena oprema skladna z veljavno uskladitveno zakonodajo navedeno prejšnji strani/prejšnjih straneh tega dokumenta. [Suomi] EU-vaatimustenm ukaisuusvakuutus Valmistaja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL. -
Page 9: Safety
3. Safety 3.1Warning Only use the power cord (and transformer) supplied with the unit. • Mains inlet rated for 110-230V ± 10%. For 110V mains supplies, use provided • transformer. The unit must be connected to an earthed power outlet. •... -
Page 10: General Hazards
Table 3.1 Hazard warning labels used in this manual. Symbol Associated Hazard General warning or caution, which accompanying text will explain Electrical shock Severe injury or death by electrical shock Explosion High speed rotating fan UV light source Fire Hazard 3.4 General Hazards Before installing or operating the Laminar Flow Hood, there are several health and safety precautions which must be followed and executed to ensure safe installation and operation. -
Page 11: Power Cord Safety
If servicing is required beyond routine servicing, please return the unit to Ossila Ltd The warranty will be invalidated if: Modification or service has taken place by anyone other than an Ossila engineer. -
Page 12: Health And Safety - Operation
3.9 Health and Safety – Servicing Service or installation work that includes integrating electrical components should only be performed by an Ossila engineer. Never alter the wiring of any purchased equipment. If changes are made, such alterations may damage the equipment, cause injury, or even death. -
Page 13: Damage Inspection
110 V will have a step-up transformer which can be used to increase the voltage supplied to the system to 220 V. 4.2 Damage Inspection Examine the components for evidence of shipping damage. If damage has occurred, please contact Ossila directly for further action. 5. Specifications The Laminar Flow Hood specifications are shown in Table 5.1... - Page 14 Table 5.1. Laminar Flow Hood specifications Motor Specification Motor Type Single speed AC Blower Maximum Flow Rate 510 m .hour Noise 75 dB Dimensions and Weight Working Area 590 mm x 630 mm Working Height 625 mm Weight 24 Kg Width: 660 mm Outer Dimensions (Vertical) Height: 908 mm...
- Page 15 Particulate Sensor Light Scattering Discrete Airborne Particulate Sensor Type Counter Count Range 0 – 100,000 particles.cm Count Accuracy ±10% 0.3 µm - 1 µm 1 µm - 2.5 µm Particle Bins Sizes 2.5 µm - 5 µm 5 µm - 10 µm Pressure Sensor Sensor Type MEMS Barometric Pressure Sensor...
-
Page 16: System Components
6. System Components The Laminar Flow Hood comprises of several components that fit together to form the assembly, Figure 6.1 shows the complete assembly. Figure 6.1 Laminar Flow Hood Complete Assembly... -
Page 17: Installation
7. Installation 7.1 Vertical Laminar Flow Hood Figure 7.1.1. Attach the steel tray to the back panel through the slots and holes shown. Figure 7.1.2. Attach one of the acrylic side panels using M4 x 14mm screws, M4 flat washers, and M4 flanged nuts. - Page 18 Figure 7.1.3. Repeat with the second acrylic side panel on the other side to complete the hood section. Figure 7.1.4. Place the baffle onto the plenum as shown ensuring the threaded studs enter the corresponding slots on the plenum.
- Page 19 Figure 7.1.5. Place locking washers and nuts on all the studs, tightening the nuts so that even pressure is applied to the mating surface. Figure 7.1.6. Attach the screws and flat washer to the outside of the sides of the plenum using a nut. Ensure that the screw protrudes out of the case as shown in the inset image.
- Page 20 Figure 7.1.7. Lower the plenum onto the assembled hood, ensuring that the protruding screws fall into the slots on the top of the acrylic windows. Tighten the screws to secure the plenum to the hood. Figure 7.1.8. Connect the rear panel to the plenum using the slots and holes at the rear.
- Page 21 Figure 7.1.9. Attach the electronics case to the front of the plenum. Figure 7.1.10. Attach the sash to the front of the plenum.
- Page 22 Figure 7.1.11. Insert the feedthrough plugs into the side panels and the rear panel. Figure 7.1.12. Connect the ethernet cable to the rear of the electronics case. Using the adhesive cable clips trunk, the cable to the rear of the hood. Make a small hole in the rear feedthrough plug and pass the cable through.
- Page 23 Figure 7.1.12. Continue trunking the ethernet cable up the back and around the side of the baffle and then connect the cable into the ethernet port. Figure 7.1.13. Slide the filter back in through the access panel cut out ensuring the arrow on the filter points towards the hood.
- Page 24 Figure 7.1.14. Align the filter so that the gasket lined frame is positioned directly below the clamp screw cut outs. Figure 7.1.15. Screw the filter clamp screws into the plenum.
- Page 25 Figure 7.1.16. Screw the filter access panel in place. Figure 7.1.17. Insert the power cable into the system and power...
- Page 26 7.2 Horizontal Laminar Flow Hood Figure 7.2.1 Connect the tray to the plenum. Figure 7.2.2 Attach the acrylic side panel to the plenum and tray.
- Page 27 Figure 7.2.3 Repeat with the second acrylic panel on the other side of the hood. Figure 7.2.4 Attach the screws and washers to the side of the top panel. Make sure not to screw them in and to leave a gap > 8 mm.
- Page 28 Figure 7.2.5 Slot the top panel screws into the slots on the acrylic panel and tighten them. Figure 7.2.6 Attach the top panel to the plenum.
- Page 29 Figure 7.2.7 Slot the baffle onto the plenum make sure the studs slot into the slots of the plenum. Figure 7.2.8 Using M4 flanged nuts firmly attach the plenum and baffle together by screwing onto the studs of the baffle from within the plenum.
- Page 30 Figure 7.2.9 Attach the electronics case to the top panel. Figure 7.2.10 Plug in the six break-through plugs into the holes on the acrylic panels and top panels...
- Page 31 Figure 7.2.11 Using the adhesive cable clips plug the ethernet cable into the rear of the electronics case and route it to the rear of the hood. Figure 7.2.12 Making a small hole in the breakthrough plug, pass the ethernet cable through and connect to the baffle.
- Page 32 Figure 7.2.13 Slide the HEPA filter into the laminar flow hood ensuring the arrow on the side of the filter points towards the hood. Figure 7.2.14 On the rear of the plenum tighten the filter clamp screws on the rear ensuring that the filter remains centred on the opening of the plenum.
- Page 33 Figure 7.2.15 Attach the filter access panel to the side of the plenum sealing the plenum up. Figure 7.2.16 Insert the power cable into the system and power up. 7.3 System Bootup After turning on the system for the first time it will run through the filter setup procedure. This process involves measuring the initial pressure differential across the filter to determine the current filter saturation levels.
-
Page 34: Operation
Figure 8.1 shows the power inlet and a representative example of the corresponding CE sticker. This sticker shows the address of Ossila’s EU offices, the serial number of the unit, the required frequency and voltage of the power supply, and the required fuse for the system. -
Page 35: User Interface
8.2 User Interface Figure 8.2 shows the front panel of the Laminar Flow Hood. The function of each of the keypad buttons is explained in Table 8.1. Figure 8.2. Laminar Flow Hood LCD screen and keypad. Table 8.1. Operational buttons and their associated functions. Button Function Main Display: Enter Quick Settings Bar... -
Page 36: Practical Operation
8.3 Practical Operation 1. The Laminar Flow Hood should be cleaned prior to use to ensure internal surfaces are free from contamination. 2. The motor of the system should be in continuous operation in order to maintain a clean atmosphere within the hood. 3. -
Page 37: Quick Settings Options
4. The particle count sensor takes time to initiate its first readout as a time weighted measurement is made to obtain a high enough degree of sensitivity to measure to ISO Class 5. It will take approximately one minute before the first readouts of cleanliness will appear. 5. -
Page 38: Settings Menu
a set distance. Once the UV light is turned on through the quick settings menu the system will monitor for motion in front of the system, it will immediately turn off the UV light if movement is detected and will keep it off until there has been 30 seconds without motion detected within a 1.5m distance. The UV light therefore can be in one of three states and the blue light on the front of the unit will display what state it is in. -
Page 39: Filter Change Menu
Figure 8.6 Filter menu and reset options. The about menu provides information about the system to the user this shows the current software version number of the instrument. Figure 8.7 About menu in settings. 8.8 Filter Change Menu When changing the filter, the user will be required to navigate to the filter settings page and select the filter change option. - Page 40 Figure 8.8 The filter reset process after completion. Once complete the system will save the new baseline back pressure and use this to reference the current back pressure against in determining the current level of filter saturation. The default saturation percentage is a percentage increase in the baseline back pressure. So for example if the baseline back pressure is 100pa and the current measured back pressure is 135pa this would be a saturation of 35%.
-
Page 41: Maintenance
9. Maintenance 9.1 Cleaning Maintenance consists of routine cleaning of the inside of the cabinet for the purposes of decontamination. It is recommended that a solution of 70:30 ethanol to water or 80:20 isopropyl alcohol to water is used. This should be liberally sprayed to all interior surface of the hood, excluding the filter face and the electronics case. -
Page 42: Hepa Filter Replacement
Additional pre-filter discs cut to size can be purchased from Ossila. Alternatively, users can purchase any pre-filter they wish, it is recommended that a minimum filter grade of F8 or F9 should be used. - Page 43 2. Turn off the power to the system ensuring that is completely disconnected. 3. Open the plenum access panel that can be found on the side of the plenum using the 2.5 mm hex key provided. Figure 9.3.1. Remove the filter access panel on the side of the plenum.
- Page 44 Figure 9.3.3. The HEPA filter should be lifted and slid through the cut out behind the filter access panel. This can then be removed from the side of the unit. 7. Place the filter inside of a clear plastic bag and seal it with tape. This should then be disposed of in a suitable waste stream.
- Page 45 Figure 9.3.5. Align the filter so that the gasket lined frame is positioned directly below the clamp screw cut outs. 10. Tighten all the filter clamping screws fully. Figure 9.3.6. Screw the filter clamp screws back into the plenum, ensuring that the flat and spring washers are put in place. 11.
-
Page 46: Repair And Service
There are no user-serviceable parts in this unit except for the fuse, and filters. If the unit is faulty, return it to Ossila Limited. Our service department will promptly quote to repair any faults that occur outside the warranty period. -
Page 47: Troubleshooting
1A slow blow fuse. d.) Fault on circuit board. d.) Please contact Ossila for information. Power but fan a.) Software is not correctly a.) Turn the unit on and off again and attempt to start the motor again.
