Advancing the Line Using the Bump Feed
1. Run the tool at full throttle.

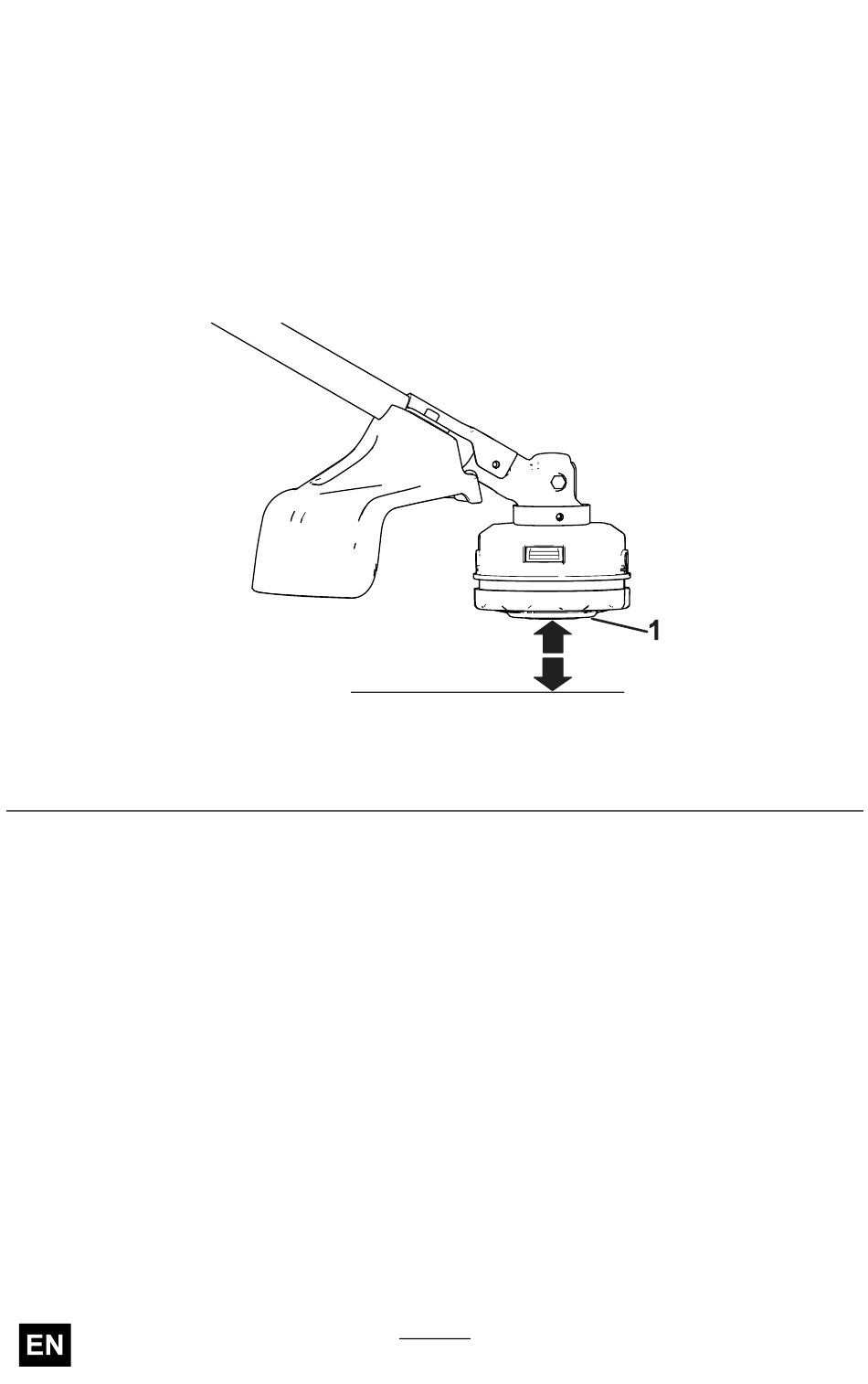

2. Tap the bump head on the ground to advance the line. The line
advances each time the bump head is tapped.
Note:
Do not hold the bump head on the ground while running the
trimmer.
Note:
The line trimming cut-off blade on the grass deflector cuts the
line to the correct length.
1. Bump head
Note:
If the line is worn too short, you may not be able to advance the
line by tapping it on the ground. If so, release both triggers and refer to
Advancing the Line Manually (page

Advancing the Line Manually

Remove the battery pack from the trimmer, then push the bump head
while pulling on the trimmer line to manually advance the line
If pushing the bump head does not advance the line it may be jammed.
Remove the bump head cover by pushing in on the tabs on either side of
the bump head, remove any debris or tangled line, then snap the bump
head cover back into place
Figure 11
18).
(Figure 12).
18
g367080
(Figure 11).
