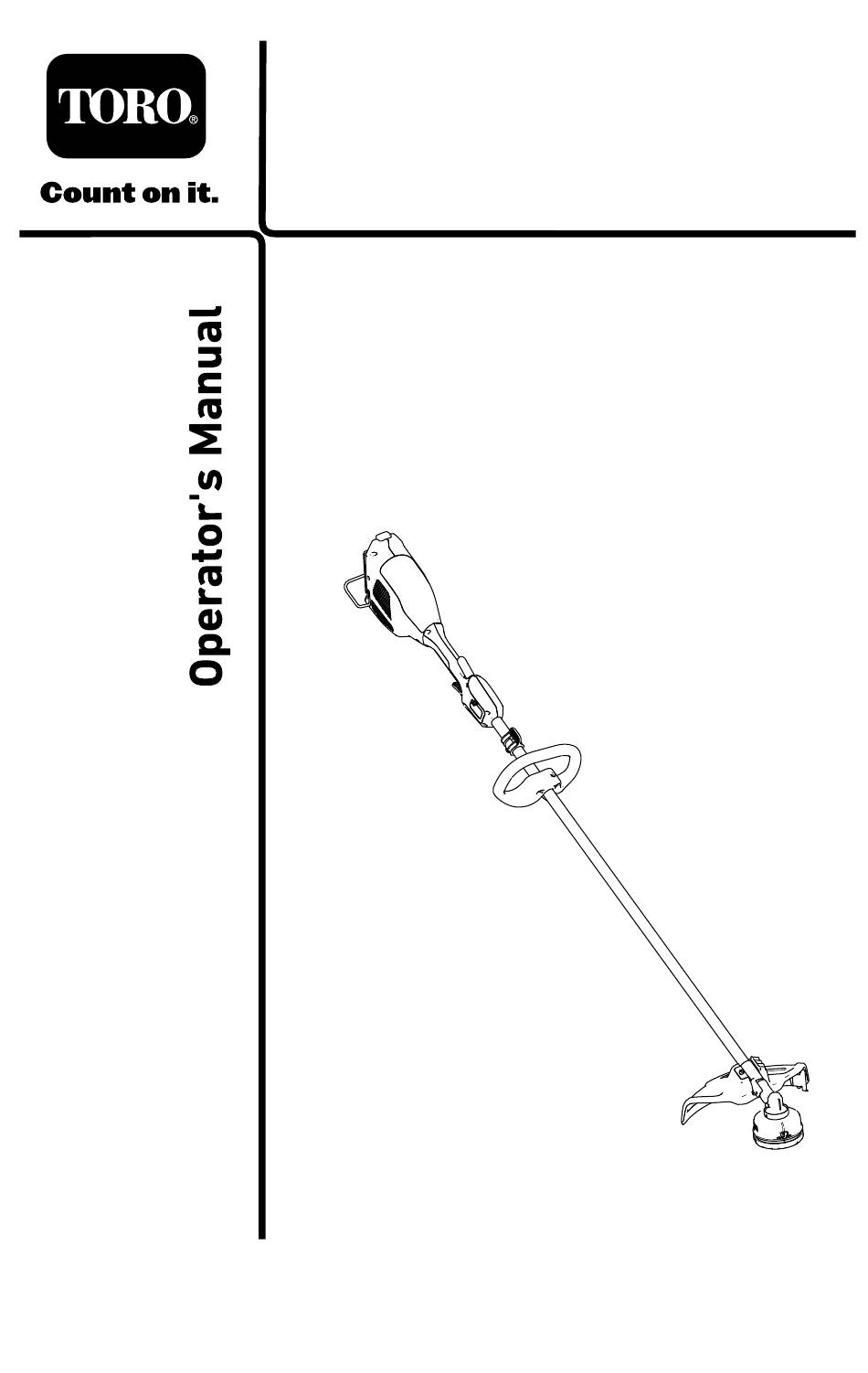

- Page 1 Form No. 3445-256 Rev C Revolution ® 60V String Trimmer Model No. 66110T—Serial No. 323000001 and Up *3445-256* Register at www.Toro.com. Original Instructions (EN)
- Page 2 You are responsible for operating the product properly and safely. Visit www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.
- Page 3 Whenever you need service, genuine the manufacturer parts, or additional information, contact an Authorized Service Dealer or the manufacturer Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
-
Page 4: Safety Alert Symbol
Safety-Alert Symbol The safety-alert symbol (Figure 2) shown in this manual and on the machine identifies important safety messages that you must follow to prevent accidents. g000502 Figure 2 Safety-alert symbol The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION. - Page 5 Authorized Service Dealer to replace it. Charge the battery pack with only the battery charger specified by Toro. A charger suitable for 1 type of battery pack may create a risk of fire when used with another battery pack. Charge the battery pack in a well-ventilated area only.
- Page 6 Avoid dangerous environments—Do not use the tool in rain or in damp or wet locations. Use the proper tool for your application—Using the tool for purposes other an its intended use could prove dangerous to you and bystanders. Prevent unintentional starting—Ensure that the switch is in the O position before connecting to the battery pack and handling the tool.
- Page 7 CAUTION—A mistreated battery pack may present a risk of fire, explosion, or chemical burn. • Do not disassemble the battery pack. • Replace the battery pack with a genuine Flex-Force battery pack only; using another type of battery pack may cause a fire or risk of injury.
-
Page 8: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal145-3810 145-3810 decal139-5210 139-5210 1. Warning—read the Operator’s Manual; stay away from moving parts; keep all guards in place;... -
Page 9: Loose Parts
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Install the auxiliary Auxiliary handle assembly handle. Guard Install the guard. Socket-head screw – No parts required Install the harness. Media and Additional Parts Description Qty. - Page 10 Align the auxiliary handle with the lower handle bracket on the trimmer handle (B of Figure Slide the lower handle bracket into the slot on the auxiliary handle (B of Figure Secure the auxiliary handle to the lower handle bracket with the socket head bolt previously removed (C of Figure g524213...
-
Page 11: Installing The Guard
Installing the Guard Parts needed for this procedure: Guard Socket-head screw Procedure Align the guard so that the tab on the mount slides into the slot (A Figure Install and tighten the socket-head screw to secure the guard to the mount (B of Figure g525388 Figure 4... -
Page 12: Installing The Harness
Installing the Harness No Parts Required Procedure Important: If you are using the string trimmer with a 6.0 Ah or greater battery pack installed, install the included shoulder harness. Do not use the shoulder harness if you are powering the string trimmer with the backpack and backpack tether;... - Page 13 The strap length is adjustable; slide the strap adjuster up to decrease the length of the strap, or down to increase the length of the strap (Figure If there you ever need to rapidly remove the harness, disconnect the quick-release buckle as follows: Press in on the sides of the buckle (A of Figure Allow the buckle to disconnect (B of...
-
Page 14: Product Overview
Product Overview g367068 Figure 7 1. Battery latch 5. Deflector shield and line cutoff blade 2. Lockout trigger 6. Line 3. Harness connection 7. Run trigger 4. Auxiliary handle 8. Rod guard... -
Page 15: Specifications
Store the tool, battery pack, and battery charger in an enclosed clean, dry area. Attachments/Accessories A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. -
Page 16: Operation
Operation Starting the Trimmer Ensure that the vents on the trimmer are clear of any dust and debris. Ensure that the rod guard is lowered and align the cavity in the battery pack with the tongue on the handle housing (Figure Push the battery pack into the handle until the battery locks into the latch... - Page 17 g356929 Figure 9 1. Two-speed switch 3. Run trigger 2. Lockout trigger Shutting Off the Trimmer To shut off the trimmer, release both triggers. Whenever you are not using the trimmer or are transporting the trimmer to or from the work area, remove the battery pack. Removing the Battery Pack from the Trimmer Press the battery latch button on the trimmer to release the battery pack, then slide the battery pack out of the trimmer...
-
Page 18: Advancing The Line Manually
Advancing the Line Using the Bump Feed Run the tool at full throttle. Tap the bump head on the ground to advance the line. The line advances each time the bump head is tapped. Note: Do not hold the bump head on the ground while running the trimmer. -
Page 19: Operating Tips
g386222 Figure 12 Some parts not shown for clarity 1. Push in on the tabs to access the line directly. Operating Tips • Keep the trimmer tilted toward the area being cut; this is the best cutting position. • The string trimmer cuts when you move it from left to right; this helps prevent the trimmer from throwing debris at you. -
Page 20: Maintenance
g367082 Figure 13 1. Direction of rotation 2. Line path Maintenance After each use of the trimmer, complete the following: Remove the battery pack from the trimmer. Wipe the trimmer clean with a damp cloth. Do not hose the trimmer down or submerge it in water. -
Page 21: Replacing The Line
Replacing the Line Use only 2.4 mm (0.095 inch) diameter monofilament line. Remove the battery pack. Remove any existing line on the spool by repetitively pressing the bump head while pulling the line out equally from both sides of the bump head. - Page 22 the arrows (clockwise) on the bottom of the bump head to wind the line; leave about 152 mm (6 inches) extending beyond the eyelet on each side. Replacing the Trimmer Head Remove the battery pack from the trimmer. Align the hole in the cup plate with the hole in the trimmer gearcase (Figure 15).
- Page 23 With the metal rod securing the trimmer head, rotate the trimmer head clockwise to remove it from the threaded gearcase post (Figure 16). g378078 Figure 16 Some parts not shown for clarity To install the new trimmer head, rotate it counterclockwise onto the gearcase post while securing the cup plate using the metal rod.
-
Page 24: Lubricating The Gearbox
Lubricating the Gearbox Service Interval: Every 25 hours or monthly, whichever comes first Shut off the trimmer, remove the battery pack, and clean any debris from the trimmer head. Set the trimmer so the gearbox is upright. Remove the plug from the side of the trimmer (Figure 16). - Page 25 Storage Important: Store the tool, battery pack, and charger only in temperatures that are within the appropriate range; refer to Specifications (page 15). Important: If you are storing the battery pack for the off-season, charge it until 1 or 2 LED indicators turn green on the battery. Do not store a fully charged or fully depleted battery.
-
Page 26: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Always remove the battery from the tool when troubleshooting, inspecting, maintaining, or cleaning the tool. - Page 27 Problem Possible Cause Corrective Action The tool is producing 1. The gearbox is not 1. Lubricate the gearbox. excessive vibration or being lubricated noise. properly. 2. There is debris under 2. Clean any debris from the grass shield or in under the grass shield the bump head housing or in the bump head...
- Page 28 Notes:...
- Page 29 Notes:...
- Page 30 Why does Toro include this warning? Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and use. Toro provides warnings in certain casesRev...
- Page 31 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
