Replacing the Line

Use only 2.4 mm (0.095 inch) diameter monofilament line.
1. Remove the battery pack.
2. Remove any existing line on the spool by repetitively pressing the
bump head while pulling the line out equally from both sides of the
bump head.
3. Using 2.4 mm (0.095 inch) line, cut a piece of line that is no longer
than 7.3 m (24 ft).
Important:
Important:
could damage the trimmer.
4. Press and turn the bottom of the trimmer head in the direction shown
by the arrows (clockwise) on the bottom of the bump head until the
bottom green marks align with the green marks beneath the eyelets
(Figure 14).
5. Insert 1 end of the line straight into the eyelet and push the line
through until it comes out through the eyelet on the other side.

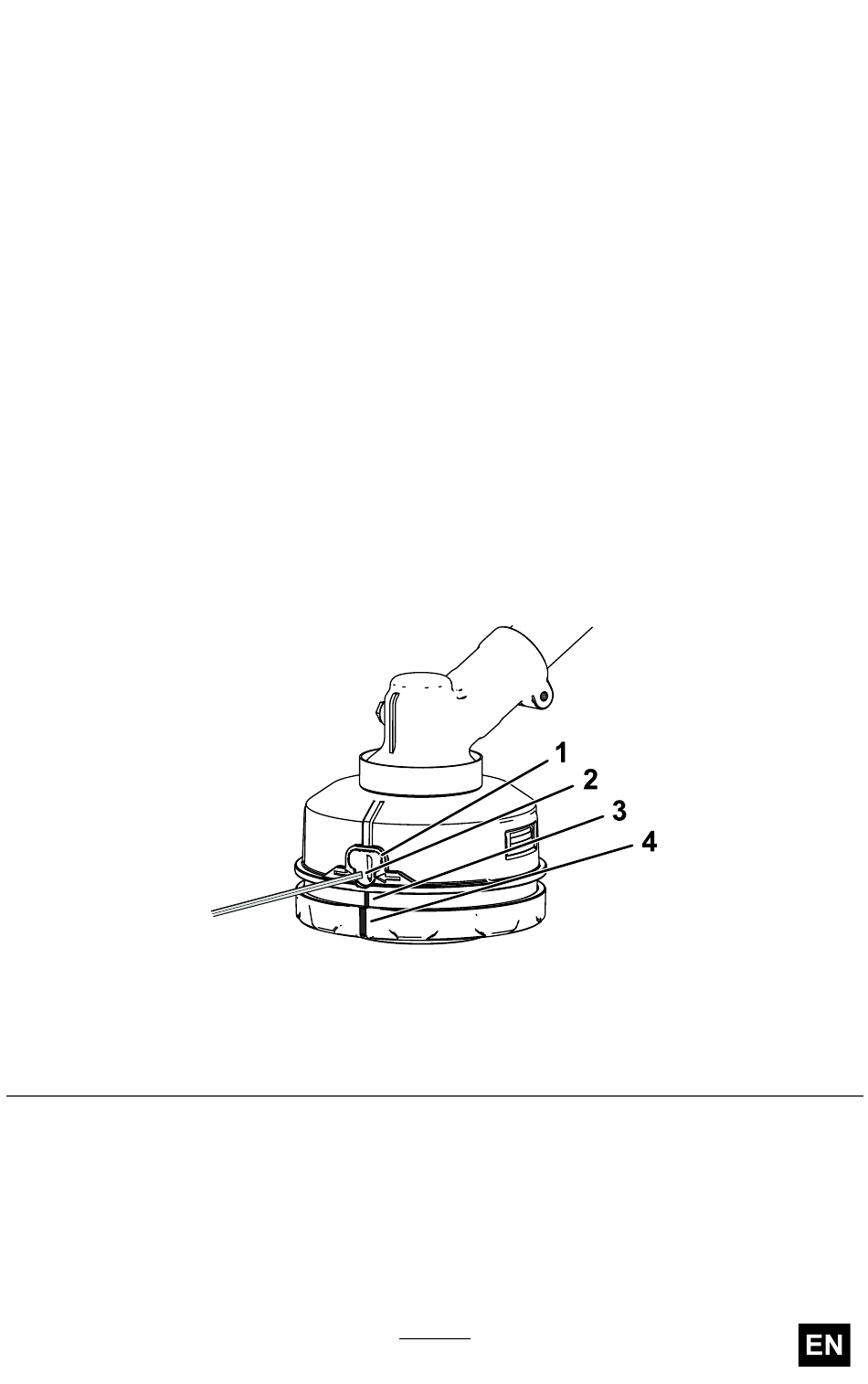

1. Eyelet
2. Line
Important:
6. Pull the line through the eyelets until there is an equal length of line
on each side of the trimmer head.
7. Hold the string trimmer in place with one hand. With your other
hand, turn the bottom of the trimmer head in the direction shown by
Do not overload the spool.
Do not use any other gauge or type of line, as this
Figure 14
Do not disassemble the trimmer head.
3. Eyelet alignment mark
4. Bottom alignment mark
21
