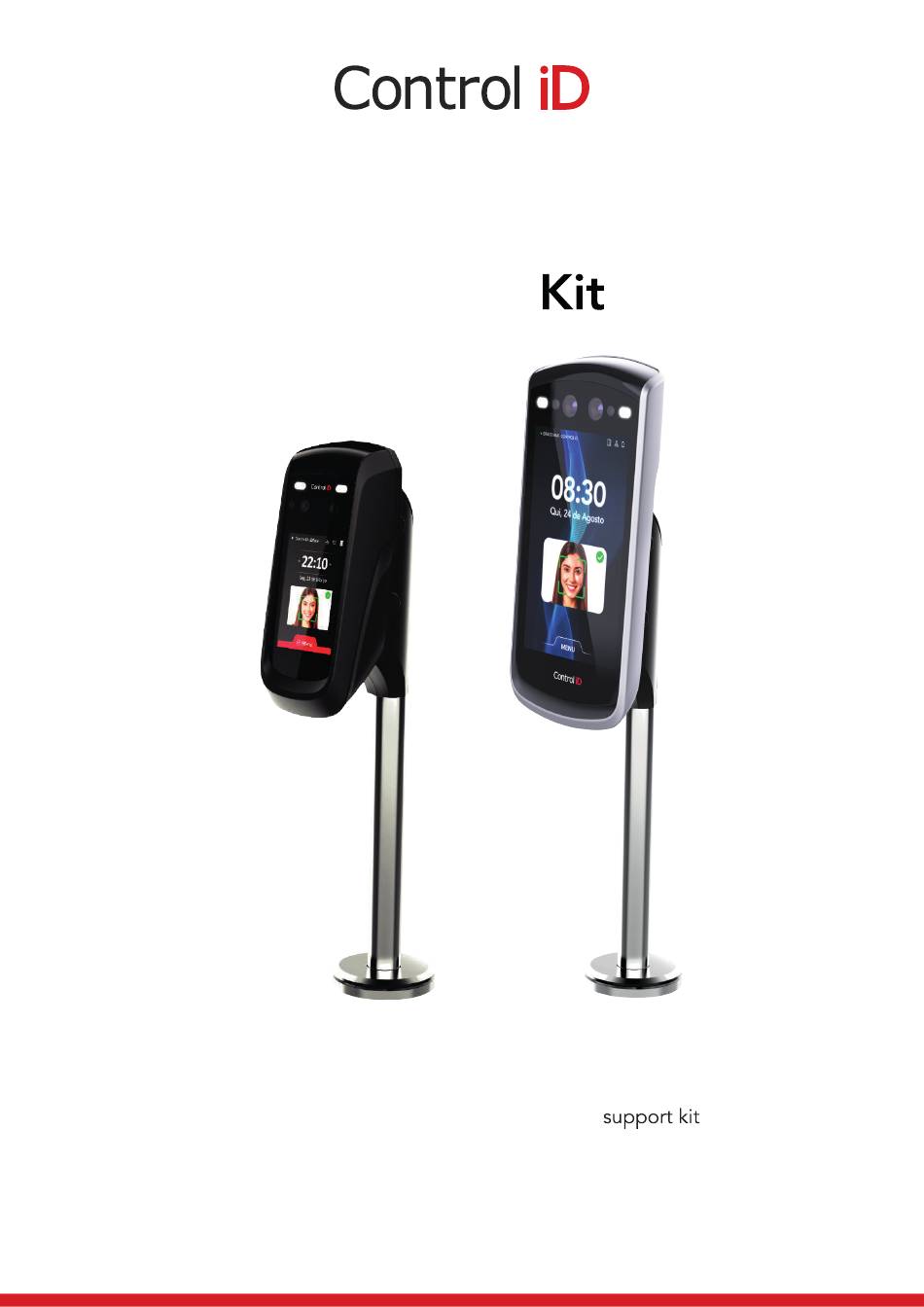

Installation Guide
iDFace and iDFace Max
Support
Thank you for acquiring the support kit for facial identification
access controller.
For detailed information on the use of your new
, access:
https://www.controlid.com.br/userguide/idface-support-kit-en.pdf
By using Control iD's products, you are accepting the Terms and Conditions
of Use and the Information on Personal Data Protection available
on: www.controlid.com.br/legal/acessoeponto.pdf
Advertisement
Related Manuals for Control iD iDFace
Summary of Contents for Control iD iDFace
- Page 1 Thank you for acquiring the support kit for facial identification access controller. For detailed information on the use of your new , access: https://www.controlid.com.br/userguide/idface-support-kit-en.pdf By using Control iD's products, you are accepting the Terms and Conditions of Use and the Information on Personal Data Protection available on: www.controlid.com.br/legal/acessoeponto.pdf...
- Page 2 Mechanical Installation 1. Tools needed To install the iDFace Kit in the turnstile, the following items will be needed: drill, bits (diameter of 3mm, 6mm and 10mm), hole saw (diameter of 35mm), rasp, 2mm and 2.5mm hex key, Phillips screwdriver, 8mm thin spanner (items not provided by Control iD).
- Page 3 Installation Guide iDFace and iDFace Max Support Kit Support Flange (1x): iDFace Facial Identification Access Controller Mounting Piece Subset (1x): Facial Identification Access Controller iDFace Max Mounting Piece Subset (1x): Mounting Piece Support (1x): iDFace Max Adhesive Hole Cover (4x):...
-
Page 4: Installation
BRIDGE-TYPE TURNSTILE Support Mounting Bit for Piece Sheet. Maximum Metal Thickness 8mm Basket Figura 2 Figure 2 If you have acquired iDBlock Bridge-Type with iDFace Max, it is not necessary to drill the cover, since the product is already drilled. - Page 5 Installation Guide iDFace and iDFace Max Support Kit 3.3 Assemble the Support Subset: Figure 3 3.4 Mount the Support Flange: M5 Nut Figure 4...
- Page 6 Installation Guide iDFace and iDFace Max Support Kit 3.5 Bolt the Mounting Piece Support: M3 Bolt Figure 5 3.6 Cable Passage: *ETH Cable *Communication Cable *Cables not supplied by Control iD. Figure 6...
- Page 7 Installation Guide iDFace and iDFace Max Support Kit 3.7 Mount Protections and Facial Identification Access Controller Fixing: Figure 7 3.8 Mount Support of the Facial Identification Access Controller Fixing: iDFace iDFace Max Place M3 Bolt M3 Bolt Figure 8...
- Page 8 Installation Guide iDFace and iDFace Max Support Kit 3.9 Mount the Facial Identification Access Controller Fixing: iDFace iDFace Max Stick Stick Figure 9...
