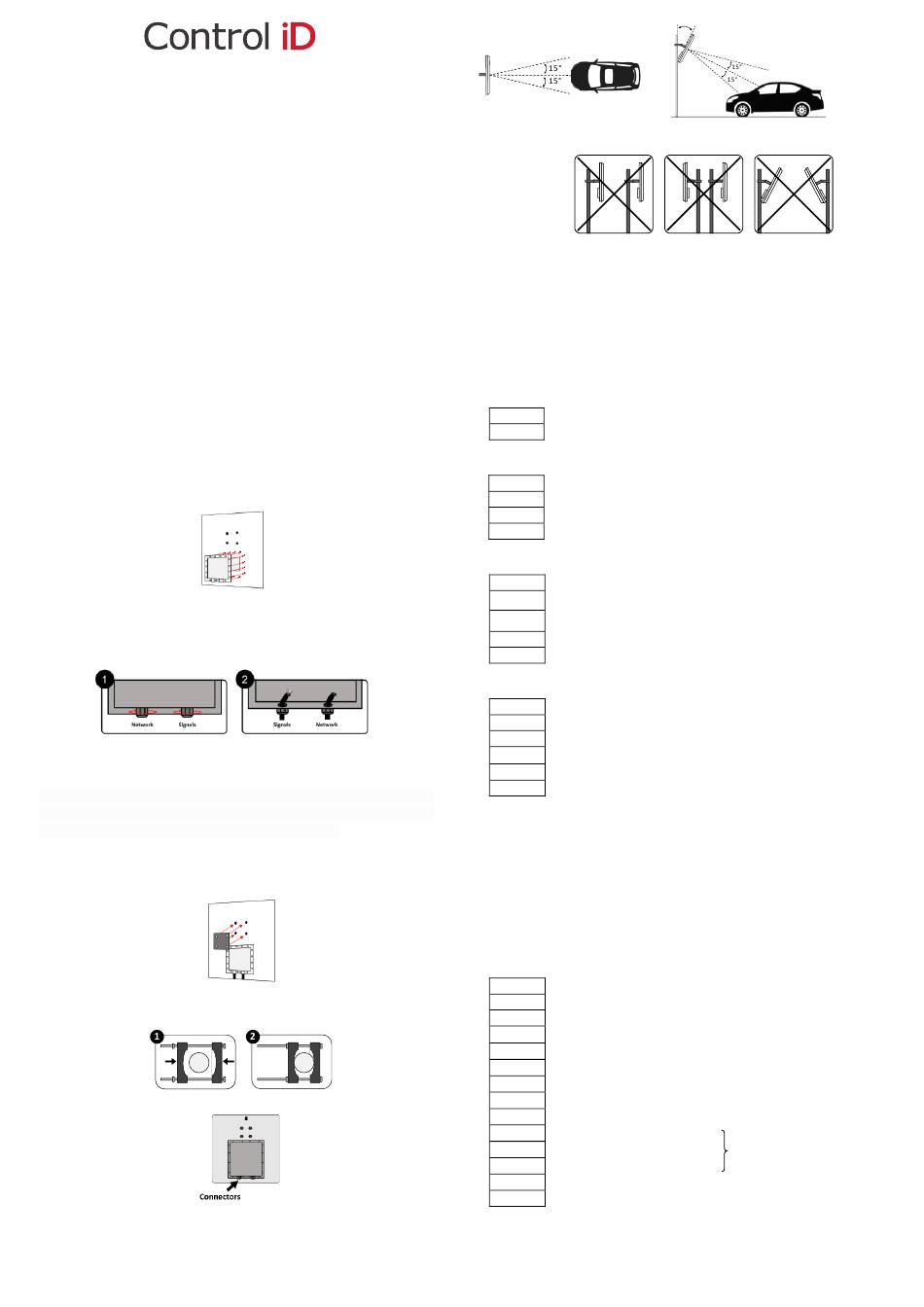

iDUHF – Quick Guide
Thank you for acquiring the iDUHF Access Controller! For more information,
please access:
https://www.controlid.com.br/en/access-control/iduhf/
By using Control iD's products, you are accepting the Terms and Conditions of
Use and Information on Protection of Personal Data available in:
https://www.controlid.com.br/legal/eula.pdf
1. Needed Material
For the physical installation of your iDUHF, you will need the following items:
EAM – External Activation Module
screws), a 13mm wrench
[2]
, a 12V/2A DC supply
for antennas².
[1] Optional as the installation scenario.
[2] Items sold separately.
Use a high-qualify 12V/2A supply without static, to assure the full operation
of the product.
2. Physical Installation
The equipment installation is simple and must follow the sequence below:
a) Take off the sixteen bolts from the sealing part to have access to the
connections.
b) Unscrew and pass the network cables and signals uncovered by the cable grip
of the sealing part. We recommend a 26 AWG cable (0.4mm of diameter) for
the signals.
Passing cables already crimped by the hole is not possible. Only crimp and
connect the cables after passing them through the cable grip and sealing part
holes.
c) Identify your installation scenario on item 4 of this document and make the
electrical connections described in the corresponding diagram, connecting the
cables to the terminal and crimping the network connector.
d) Tight the cable grip and put in the sixteen screws of the sealing cover again.
e) Fix the support part of the installation kit on iDUHF's back, using the four
screws that come with the product and a wrench.
f) Use the clamps of the support part and a wrench to allocate iDUHF on the
support pole already previously installed in the environment.
Make sure that iDUHF's connectors are facing down.
g) With the aid of a wrench, adjust iDUHF's angle so that its front size is faced to
the vehicle passage location. In this process, consider that the signal emitted
has a 30º opening to all directions.
[1]
, installation kit (support part + clamp +
[2]
and an installed support pole
Quick Guide – iDUHF – Version 1.4 – Control iD 2024 ©
Do not install two iDUHF's units covering the same reading area.
3. Description of the Connection Pins
iDUHF has a network door (Ethernet) dedicated to the configuration of its
parameters and integration its parameters and integrate with Control iD's access
software (iDSecure), in addition to a terminal bar of 14 positions to ensure the
communication with EAM and a full integration with several installation
environments.
Check the table below with the descriptions of External Activation Module – EAM
and iDUHF interfaces.
EAM - 2-pin connector (Power Supply)
GND
Black
Grounding of the Power Supply
12V
Red
Power supply +12V
EAM - 4-pin connector (Connection with iDUHF)
GND
Black
Grounding of the Power Supply
B
Blue / White
Communication B
A
Blue
Communication A
+12V
Red
Output +12V
EAM - 5-pin connector (Wiegand In/Out)
WOUT0
Yellow/ White
Wiegand Output - DATA0
WOUT1
Yellow
Wiegand Output - DATA1
GND
Black
Grounding (Common)
WI N0
Green/ White
Wiegand Input - DATA0
WI N1
Green
Wiegand Input - DATA1
EAM - 6-pin connector (Relay Control)
DS
Purple
Door Sensor Input
GND
Black
Grounding (Common)
BT
Yellow
Push-button Input
NC
Green
Normally Close Contact
COM
Orange
Common Contact
NO
Blue
Normally Open Contact
EAM – Communication Modes
• Default: EAM will communicate with any equipment.
• Advanced: EAM will communicate strictly with the equipment to which it
was set up in this mode
To return EAM to the default mode, turn it off, connect the WOUT1 pin with
BT and then turn it on. The LED will quickly flash 20 times, which indicates that
the change was made.
iDUHF - 14-pin connector
GND
Terra da Fonte
GND
Grounding of the Power Supply
12V
Alimentação 12V
12V
12V Power supply
W0O
Saída Wiegand
W0O
Wiegand Output
W1O
Saída Wiegand
W10
Wiegand Output
485A
Comunicação RS485 (Pino A)
485A
RS485 Communication (Pin A)
485B
Comunicação RS485 (Pino B)
485B
RS485 Communication (Pin B)
TGR
Sensor Gatilho
TGR
Trigger Sensor
DS
Sensor de Porta
DS
Door Sensor
TX
RS-232 TX / 113200 bps 8N1
TX
RS-232 TX / 113200 bps 8N1
RX
RS-232 RX / 113200 bps 8N1
RX
RS-232 RX / 113200 bps 8N1
NO
Contato Normalmente Aberto
NO
Normally Open Contact
COM
Contato Comum
COM
Common Contact
NC
Contato Normalmente Fechado
NC
GND
Normally Close Contact
Terra da Fonte
GND
Grounding of the Power Supply
4. Use Cases
Check the electrical equipment of each one of the product installation options.
Máx 30VDC
