Control iD iDUHF Lite Quick Manual

iDUHF Lite – Quick Guide
Thank you for acquiring the iDUHF Lite Access Controller! For more information,
please access:
https://www.controlid.com.br/en/access-control/iduhf-lite/
By using Control iD's products, you are accepting the Terms and Conditions of
Use and Information on Protection of Personal Data available in:
https://www.controlid.com.br/legal/eula.pdf
1. Needed Material
For the physical installation of your iDUHF Lite, you will need the following items:
EAM – External Activation Module
screws), a 13mm wrench [2] , a 12V/2A DC supply
for antennas².
[1] Optional as the installation scenario.
[2] Items sold separately.
Use a high-qualify 12V/2A supply without static, to assure the full operation
of the product.

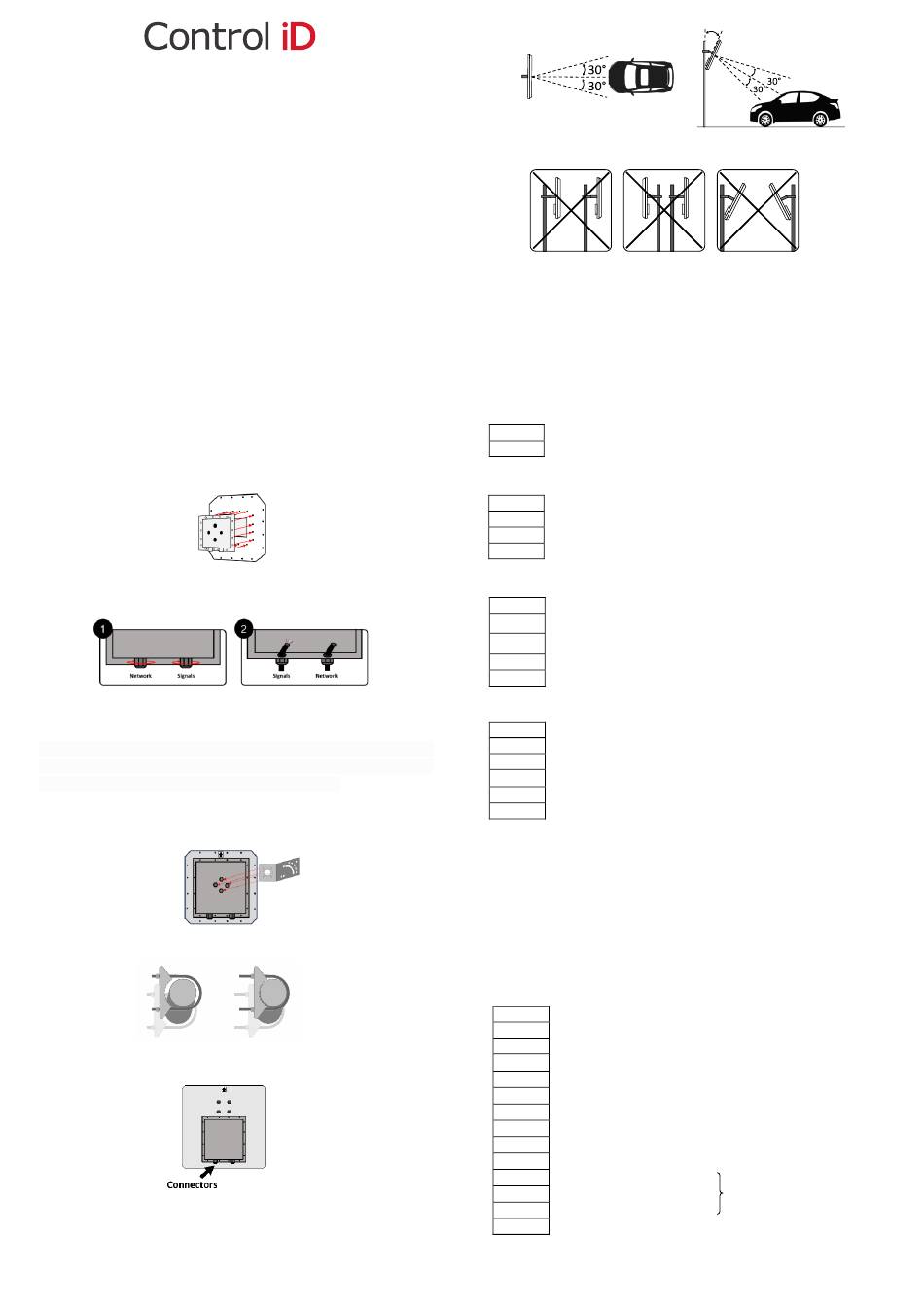

2. Physical Installation
The equipment installation is simple and must follow the sequence below:
a) Take off the sixteen bolts from the sealing part to have access to the
connections.
b) Unscrew and pass the network cables and signals uncovered by the cable grip
of the sealing part. We recommend a 26 AWG cable (0.4mm of diameter) for
the signals.
Passing cables already crimped by the hole is not possible. Only crimp and
connect the cables after passing them through the cable grip and sealing part
holes.
c) Identify your installation scenario on item 4 of this document and make the
electrical connections described in the corresponding diagram, connecting the
cables to the terminal and crimping the network connector.
d) Tight the cable grip and put in the sixteen screws of the sealing cover again.
e) Fix the support part of the installation kit on iDUHF Lite's back, using the four
screws that come with the product and a wrench.
f) Use the clamps of the support part and a wrench to allocate iDUHF Lite on the
support pole already previously installed in the environment.
Make sure that iDUHF Lite's connectors are facing down.
g) With the aid of a wrench, adjust iDUHF Lite's angle so that its front size is faced
to the vehicle passage location. In this process, consider that the signal emitted
has a 60º opening to the horizontal direction.
[1] , installation kit (support part + clamp +
[2] and an installed support pole
Quickstart Guide – iDUHF Lite – Version 1.5 – Control iD 2024 ©
Do not install two iDUHF Lite's units covering the same reading area.
3. Description of the Connection Pins
iDUHF Lite has a network door (Ethernet) dedicated to the configuration of its
parameters and integration its parameters and integrate with Control iD's access
software (iDSecure), in addition to a terminal bar of 14 positions to ensure the
communication with EAM and a full integration with several installation
environments.
Check the table below with the descriptions of External Activation Module – EAM
and iDUHF Lite interfaces.
EAM - 2-pin connector (Power Supply)
GND Black Grounding of the Power Supply
12V Red Power supply +12V
EAM - 4-pin connector (Connection with iDUHF Lite)
GND Black Grounding of the Power Supply
B Blue / White Communication B
A Blue Communication A
+12V Red Output +12V
EAM - 5-pin connector (Wiegand In/Out)
WOUT0 Yellow/ White Wiegand Output - DATA0
WOUT1 Yellow Wiegand Output - DATA1
GND Black Grounding (Common)
WI N0 Green/ White Wiegand Input - DATA0
WI N1 Green Wiegand Input - DATA1
EAM - 6-pin connector (Relay Control)
DS Purple Door Sensor Input
GND Black Grounding (Common)
BT Yellow Push-button Input
NC Green Normally Close Contact
COM Orange Common Contact
NO Blue Normally Open Contact
EAM – Communication Modes
• Default: EAM will communicate with any equipment.
• Advanced: EAM will communicate strictly with the equipment to which it
was set up in this mode
To return EAM to the default mode, turn it off, connect the WOUT1 pin with
BT and then turn it on. The LED will quickly flash 20 times, which indicates that
the change was made.
iDUHF Lite - 14-pin connector
GND Grounding of the Power Supply
GND Terra da Fonte
12V 12V Power supply
12V Alimentação 12V
W0O Wiegand Output
W0O Saída Wiegand
W10 Wiegand Output
W1O Saída Wiegand
485A RS485 Communication (Pin A)
485A Comunicação RS485 (Pino A)
485B RS485 Communication (Pin B)
485B Comunicação RS485 (Pino B)
TGR Trigger Sensor
TGR Sensor Gatilho
DS Door Sensor
DS Sensor de Porta
TX TX RS-232 TX / 115200 bps 8N1 RS-232 TX / 113200 bps 8N1
RX RX RS-232 RX / 115200 bps 8N1 RS-232 RX / 113200 bps 8N1
NO NO Normally Open Contact Contato Normalmente Aberto
COM Contato Comum
COM Common Contact
NC Contato Normalmente Fechado
NC Normally Close Contact
GND Terra da Fonte
GND Grounding of the Power Supply
Máx 30VDC
