Maene DOUTRELIGNE MHP-1000 User Manual

Hide thumbs Also See for DOUTRELIGNE MHP-1000:

Advertisement

Table of Contents

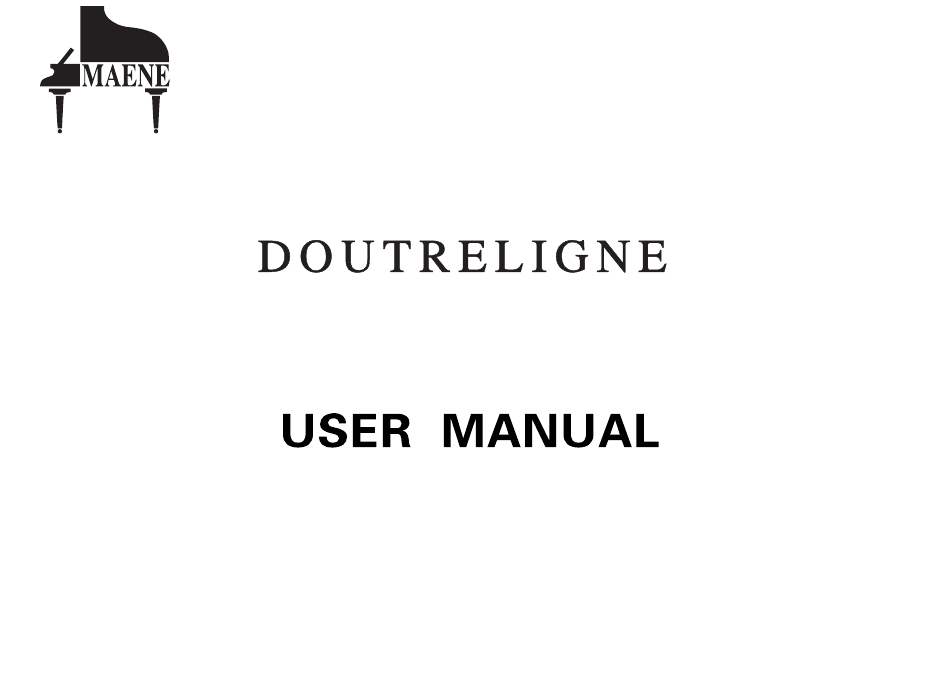

DOUTRELIGNE DIGITAL PIANO
MODEL MHP-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOUTRELIGNE MHP-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Maene DOUTRELIGNE MHP-1000

Summary of Contents for Maene DOUTRELIGNE MHP-1000

  • Page 1 DOUTRELIGNE DIGITAL PIANO MODEL MHP-1000...
  • Page 2 * The rated voltage of this device is fixed. The required voltage is printed on the nameplate of this device. * Check the plug regularly, clean the dirt and ash piled up on the plug. * This digital piano only matches with the provided power cable and plug. * Please don't put electric cable beside heaters or radiators.
  • Page 3 * In case of any liquid splashing into the device, please do not get this device rained or use it nearby water, in a wet surrounding or put a container of liquid on it. If any liquid, like water, splashes into the instrument, please cut off power and pull out the electric cable from the AC socket immediately.
  • Page 4 * If not using the instruments for a long time or during a lighting storm, please pull out plug from the socket. * Do not connect the instrument to the socket by multiple connector, or it will lower the sound quality, or it will make socket overheat * Please carefully read the attachment that explains the assemble process.
  • Page 5 though the power is turned off, there is still a small amount of electricity current flowing though it. If you decide not using this device for a long time, please pull out the plug from AC socket. * This product uses all extreme power switch as a device to cut off from network power. The power switch button is on the right side of the keyboard.

  • Page 6: Table Of Contents

    Attention to installation ........................7 Control panel ............................8 Power ..............................9 Volume ............................. 9 Headphone ............................9 Recorder ............................. 10 Play/Stop ............................. 10 Demo playing ............................. 10 Voice ..............................11 Teaching function ........................... 11 Grand piano ........................... 12 Metronome ............................12 Transpose ............................
  • Page 7 Function edition ..........................14 Bluetooth function ..........................17 Rear board interface ..........................18 USB MIDI function ..........................18 Audio connection ..........................19 GM voice list under MIDI mode ......................20 MIDI control music list ........................27 Voice list .............................. 30 Keyboard percussion music list ......................
  • Page 8 Thank you for buying Our Digital Piano. No matter you are a student, piano hobbyist or the professional, this digital piano will impress you with its perfect sound and fashion design. It can be competent with piano studying, music listening, MIDI production, which satisfies your entertainment demand.
  • Page 9 All the function keys are on the left side control panel of the digital piano. VOLUME RECORD PLAY/STOP METRONOME TRANSPOSE ▲ SONG ▼ VOICE/DATA GRAND PIANO...

  • Page 10: Power

    Connect the power to the piano and turn on the piano by pressing [Power] button. After turn on the piano, the GRAND PIANO indicated light will be on, the piano will have the default voice: Grand piano. POWER Turn the volume knob on the control panel to set your piano volume. Turn the knob clockwise will increase the volume, turn the knob anticlockwise will decrease the volume.

  • Page 11: Play/Stop

    Press [RECORD] button and the indicate light turns on, which means entering the record status. Meanwhile, the metronome starts automatically. It can be turned off manually if it isn't needed. (This digital piano has accompaniment track which can be recorded) RECORD Automatic Ending: During the recording process, when the storage space PLAY/STOP...

  • Page 12: Teaching Function

    The default sound is Grand piano sound when you turn on the piano. You can change the sounds as following steps: 1.Press the [Data+] button or [Data-] button to select the sounds. 2.Press the GRAND PIANO button to back to grand piano sound. SONG GRAND PIANO VOICE/DATA...

  • Page 13: Metronome

    When you are in other voice statement, just press GRAND PIANO button the piano can back to the default voice. GRAND PIANO 1.Press the METRONOME button on the panel to enable your metronome. The button LED-light will start flashing. The default metronome tempo is 120 beat per minute.
  • Page 14 2.By pressing the METRONOME button for more than 2 seconds, the piano will enter the metronome tempo settings. Set the metronome tempo by pressing the corresponding key in the keyboard in a range from 20 to 280 BPM. Press the corresponding figure to send the tempo (For example: if you want to set the tempo to be 180, please press‘1’,‘8’,‘0’corresponding keys and press the ‘...
  • Page 15 Being an extremely user-friendly instrument, the functions of this digital piano are easily activated. Each function is associated with one of keys on the right keyboard. The name of each function is printed under the corresponding key for your reference. O F F SOFT S T A N D A R D...
  • Page 16 There are two statuses, on and off, which are corresponding to one key. First long press grand piano button to activate function selection. Then press corresponding function key to turn on or off split function. GRAND PIANO O F F SOFT S T A N D A R D H A R D...
  • Page 17 There are two statuses, on and off, which are corresponding to one key. First long press grand piano button to activate function selection. Then press corresponding function key to turn on or off reverb function. GRAND PIANO O F F SOFT S T A N D A R D H A R D...
  • Page 18 Dual voice split point selection is corresponding to C key in the picture. First long press grand piano button to activate function selection. Then press corresponding key to activate this split point function. Press any key to set the dual voice split point.
  • Page 19 (1) Line out Stereo output, connect the digital piano to a peripheral speaker system (2) Line in Stereo Input, connect the digital piano to a built-in speaker system (3) USB USB MIDI Jack (4) Power Connect power adapter (5) Pedal Pedal jack (Sustain, soft, sostenuto pedal)
  • Page 20 Connect the musical instrument to the built-in speaker system, regarding the digital piano as speaker. LINE Regarding this digital piano as sound source, connect it to the external speaker system. LINE...
  • Page 21 PIANO GRD PIANO BRITE PIANO ELEC HONKY-TONK E PIANO 1 E PIANO 2 HARPSCRD CLAVI CELESTA GLOCKNSPL MUSIC BOX VIBRAPHONE MARIMBA XYLOPHONE TUBULR BELLS DULCIMER HAMND ORG...
  • Page 22 PERC ORG ROCK ORG CHURCH ORG REED ORG ACCORDN 1 HARMONICA ACCORDN2 GTR NYLON GTR STEEL GTR JAZZ GTR CLEAN GTR MUTED GTR OVRDRV GTR DISTRT GTR HRMNX ACOU BASS FINGR BASS PICK BASS FRETLS BASS...
  • Page 23 SLAP BAS 1 SLAP BAS 2 SYN BASS 1 SYN BASS 2 VIOLIN VIOLA CELLO CONTRABASS STR TREM STR PIZZ HARP TIMPANI STRINGS 1 STRINGS 2 STR SYN 1 STR SYN 2 CHOIR AAHS VOICE OOHS VOICE SYN...
  • Page 24 ORCH HIT TRUMPT TROMBONE TUBA MUTE TPT FR HORN BRASS SECT BRASS SYN 1 BRASS SYN 2 SAX SOPRANO SAX ALTO SAX TENOR SAX BTONE OBOE ENG HORN BASSON CLARINET PICCOLO...
  • Page 25 FLUTE RECORDER PAN FLUTE BOTTLE BLOWN SHAKHACHI WHISTLE OCARINA SQR WAVE SAW TOOTH CALLIOPE CHIFF CHARANG VOICE LEAD 5TH LEAD BASS LEAD NEW AGE WARM PAD POLY SYNTH CHOIR PAD...
  • Page 26 BOW GLASS METAL PAD HALO PAD SWEEP RAIN FX SNDTRK FX CRYSTAL FX ATMOSPH FX BRIGH FX GOBLIN FX ECHO FX SCI-FI FX SITAR BANJO SHAMISEN KOTO KALIMBA BAGPIPE FIDDLE...
  • Page 27 SHANAI TINKLE BELL AGOGO STEEL DRM WOODBLK TAIKO DRM MLDY TOM SYNTH DRM REVRS CYM GTR NOISE BREATH SEASHORE BIRD TWEET TELEPHONE HELICOPTER APPLAUSE GUNSHOT...
  • Page 28 Syn Sound Syn Sound Syn Sound Syn Sound Syn Sound Slap Slap Slap Slap Slap Scratch1 Scratch1 Scratch1 Slap Scratch1 Scratch2 Scratch2 Scratch2 Scratch2 Scratch2 Sticks Sticks Sticks Sticks Sticks Click Click Click Click Click Metronome Click Metronome Click Metronome Click Metronome Click Metronome Click Metronome Bell...
  • Page 29 Open Hi-Hat Open Hi-Hat Open Hi-Hat Open Hi-Hat Synth Open Hi-Hat Mid Tom1 Power Mid Tom1 Power Mid Tom1 Electric Mid Tom1 Synth Mid Tom1 High Tom2 Power High Tom2 Power High Tom2 Electric High Tom2 Synth Tom2 Mid Tom2 Power Mid Tom2 Power Mid Tom2 Electric Mid Tom2...
  • Page 30 High conga High conga High conga High conga High conga Low conga Low conga Low conga Low conga Low conga High Timbale High Timbale High Timbale High Timbale High Timbale Low Timbale Low Timbale Low Timbale Low Timbale Low Timbale High Agogo High Agogo High Agogo...
  • Page 31 Bell Tree Bell Tree Bell Tree Bell Tree Bell Tree Castanets Castanets Castanets Castanets Castanets Mute Surdo Mute Surdo Mute Surdo Mute Surdo Mute Surdo Open Surdo Open Surdo Open Surdo Open Surdo Open Surdo Voice list PIANO GRD STRINGS PIANO BRITE TRUMPET E PIANO1...
  • Page 32 Acoustic Bass Drum Chinese Cymbal Bass Drum 1 Ride Bell Side Stick Tambourine Acoustic Snare Splash Cymbal Hand Clap Cowbell Electric Snare Crash Cymbal 2 Low Floor Tom Vibraslap Close Hi-Hat Ride Cymbal2 Hi Bongo High Floor Tom Low Bongo Pedal Hi-Hat Mute Hi Conga Low Tom...
  • Page 33 Cabasa Short Guiro Maracas Long Guiro Short Whistle Claves Long Whistle Chopin Fantasy Chopin Night Rock Piano Ballad Fountain Ragetime Bach Piano Zi Zhu Diao Minuet Sad Person Love romance Fn Rhythm Four little swans Eugenia Puppy Wlatz Dolly's Dream CpnEtude 4 Cygnets Turkey March...
  • Page 34 Busker Mai Tang Yuan NewsPaper Sale Trout Doves Graded Hammer Feeling, Advanced multi- Easy to use Simple and Easy control panel. layer dynamics curves sensor recognition processing skill, making your performance and expression more easily. MAF Filter Technique (Original sound effect) Speaker system is designed according to CD can create simulated mechanical noise to System Technique Standard.
  • Page 35 wooden shell structure, sliding key cover, aluminum alloy handle, folding large spectrum frame, single row round button key side control panel; 88 keys dynamic curve hammer action weighted keyboard; European Spectral Composite techniques DSP chip. German famous Grand Piano sound sampling, String overtones resonance simulation sound technology;...
  • Page 36 Through USB and computer connection, we can realize the composer's needs; Imitated grand piano pedal function, soft pedal, selected sustain pedal, sustain pedal; Italian technology design stereo double speaker sound system; DC 12V/2000mA; 25W*2; 1372*420*790(mm,L*W*H) ; 39kg; ower adapter,...
  • Page 37 There is noise when turn on/off the This is normal power. After turn on the power, no sound is Please confirm the connection to power is good produced when press the keys. The note and its timber are of a little This is normal differences under the same patch.
  • Page 38 Long time playing leads to high temperature of the amplifier, so self- Distortion or intermittent for the demo protection system of the circuit board will startup. Turn down the volume or turn songs. off the power for a while then it will return to normal. Two sounds appear at the same time You may activate the dual mode function.
