Summary of Contents for Matrix MXC070FR

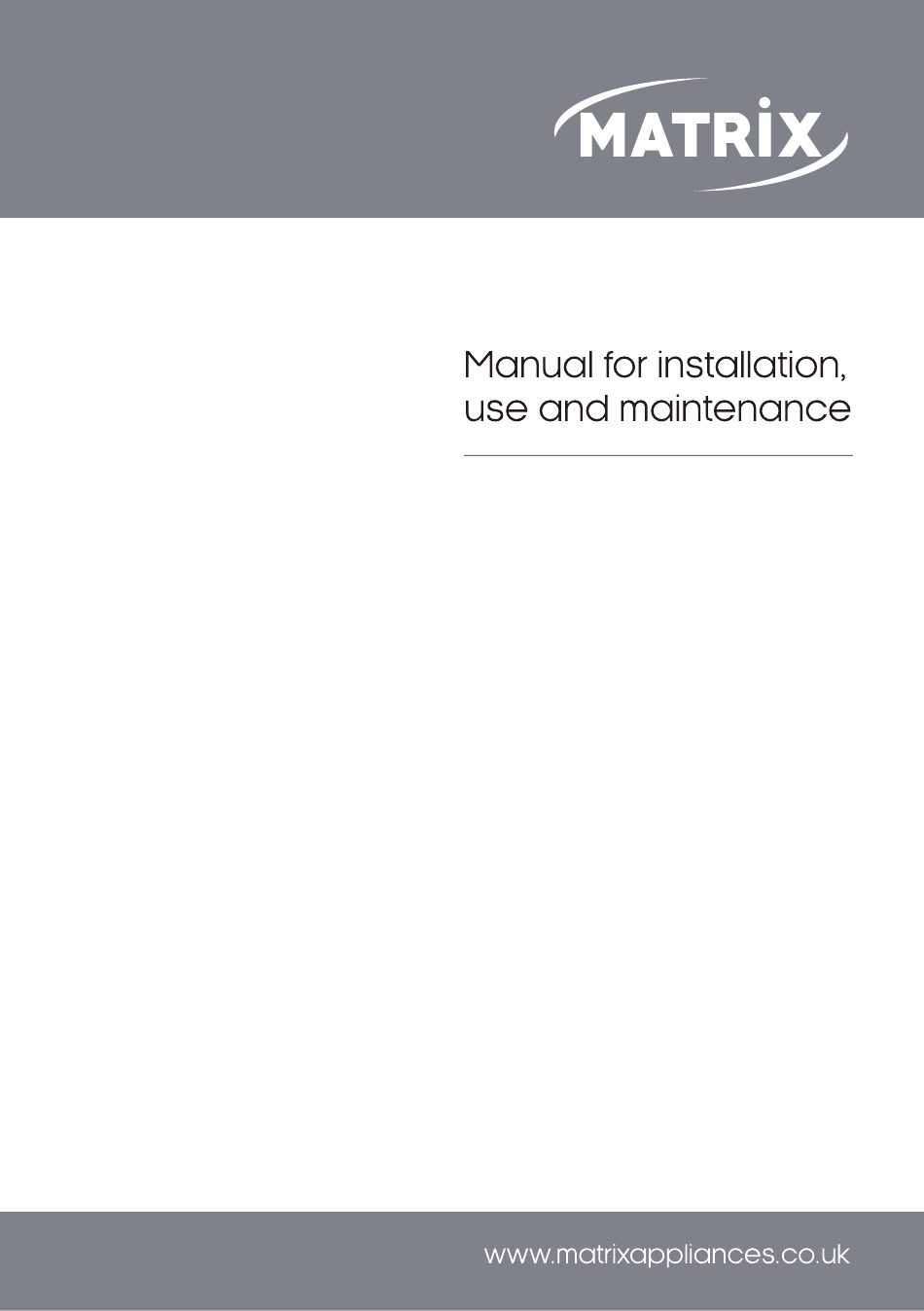

- Page 1 MXC070FR Ceramic hob...
- Page 2 The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
-
Page 3: User Information
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health. -
Page 4: Safety Warning
• Do not switch on the zones without cookware in place. • Do not lean over the hob when it is in use. • Follow the cleaning instructions carefully. • Ensure the base of the saucepan is clean and dry before placing it on the hob to prevent damage to the surface of the hob. - Page 5 9. Accessible parts may become hot during use. To avoid burns young children should be kept away. 10. WARNING: If the surface is cracked, switch o the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ce- ramic or similar material which protect live parts 11.Do not use steam cleaners.
-
Page 6: Using Your Hob
7200W. Heating area Heating area (Φ140mm) (Φ210mm) Heating area Heating area (Φ145mm) (Φ180mm) Heating area Heating area (Φ180mm) (Φ145mm) Power(W) Buit-in Hole Size Model Power Supply Size (mm) 180mm 210/140mm 145mm (mm) AC220-240V 750X510X62 742X490 MXC070FR 1200W 1800W 2200W/1000W 50Hz... - Page 7 Touch control • All operations are performed by means of the touch controls on the control panel. • Each touch control has a corresponding visual display (indicator light). • You will hear a beep each time a touch is registered. Switching on the ceramic hob •...
-
Page 8: Dual Cooking Zone
Locking the ceramic hob To lock the ceramic hob, press the safety lock button (fig. 4) while the appliance is switched on. With the safety lock activated, all buttons on the control panel will be disabled, except the ON/OFF button. To disable the safety lock feature, press the safety lock button again. - Page 9 Before using your hob for the first time, switch the zones on for a FEW process. The ceramic glass retains heat, so to make best use of the residual To reduce the cooking time, the zone can be set to the maximum setting at the beginning of cooking, and then reduced during cooking time.
- Page 10 It is very important that the pans used on the hob are made of a suitable material and have the correct type of base. The base should be flat and smooth, as any rough part on the pan base could scratch the ceramic hob top.
-
Page 11: Care And Maintenance
Care and Maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 12: Troubleshooting
Troubleshooting Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services. Problem Possible Causes Remedy The hob cannot be turned No power. Ensure the hob is connected to the power supply and that it is switched on. -
Page 13: Fitting The Hob
Fitting the Hob Unpacking the hob: Take care not to lose or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 200mm away from any adjacent vertical surfaces, e.g. - Page 14 • This appliance is designed to be installed into cabinet units capable of withstanding temperatures of 65°C or greater above ambient temperature. • Never place perishable foods, soft items such as tea towels, cleaning products or flammable items in the cupboard or drawer below the appliance.
-
Page 15: How To Install The Hob
How to Install the Hob Make the required hole in the work- top. Ensure the thickness of the work surface is at least 20mm. Before doing this, you must check the instructions supplied with any cooker hood to 600mm minimum (650mm recommended) ensure that you will have the required clearance. -
Page 16: Mains Electrical Connection
Mains electrical connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown Neutral N: BU - blue Earth PE: GNYE -green/yellow Fig. - Page 17 • This appliance is intended to be connected to the mains supply with a cable of cross sectional area 4mm . • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. •...
- Page 18 For service or queries relating to your product please contact: The Customer Care Department on 01949 862 012 or email customer.care@cda. co.uk For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.co.uk Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.co.uk...
