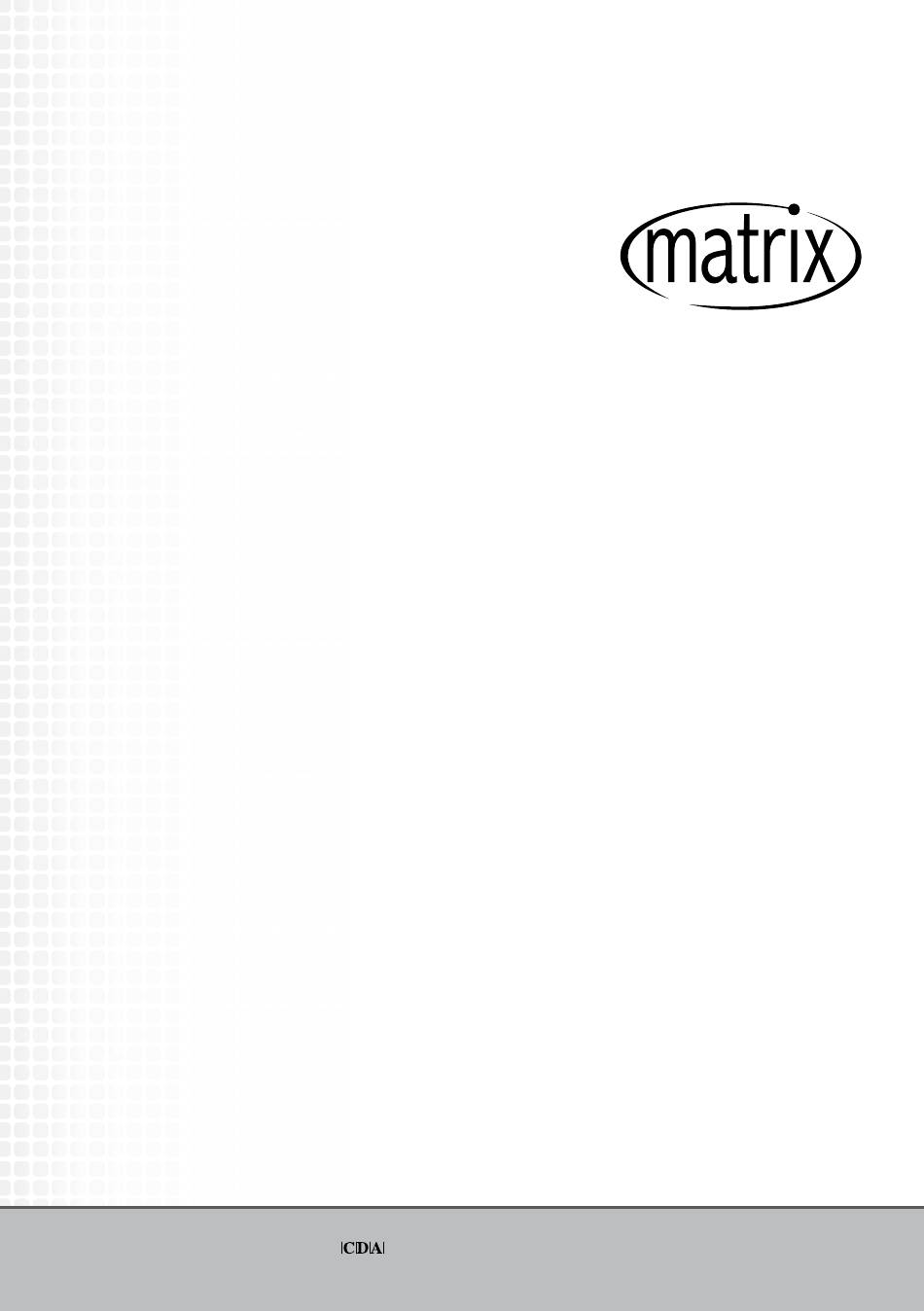

MHG201
Gas Hob
Manual for Installation, Use and Maintenance
ance
Customer Care Department • The
Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHG201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MHG201

Summary of Contents for Matrix MHG201

  • Page 1 MHG201 Gas Hob Manual for Installation, Use and Maintenance ance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu...
  • Page 2 Important The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance.
  • Page 3 safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to EEC/89/109. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.

  • Page 4: Using Your Hob

    • This hob (Class 3) has been designed for use only as a cooking appliance. Any other use (e.g. heating rooms) should be considered incorrect and potentially dangerous. • These instructions are valid only for the countries of destination, the symbols of which appear on the appliance.
  • Page 5 9 10 Fig. 2 Key to Fig 2 Gas burners: 1. Semi-Rapid burner 1.75kW 2. Auxiliary burner 1.0kW 3. Triple burner / wok 3.8kW 4. Semi-Rapid burner 1.75kW 5. Rapid burner 3.0kW Control panel: 6. Front left burner control knob 7.

  • Page 6: Igniting The Burners

    Igniting the Burners The hob is fitted with a flame failure device. Flame failure devices operate by shutting off the supply of gas to the burner in the event that the flame is extinguished accidentally. Fig. 3 To ignite the burners, follow these instructions: 1.

  • Page 7: Efficient Use Of Your Hob

    Efficient Use of Your Hob The hob is equipped with burners of different sizes, designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms and choose an appropriate burner depending on the size of the pan. The most efficient use of the hob is shown below, where the pan and burner are correctly chosen.
  • Page 8 Correct Use of the Wok Pan Adaptor The wok pan adaptor is a special stand that is designed to be fitted over the triple ring burner to give support to round bottomed woks. When using a wok, always place the wok pan adaptor in position over the pan support on the triple ring burner as shown in Fig.

  • Page 9: Care And Maintenance

    Care and Maintenance As the hob has a stainless steel or enamel surface, you should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. Stainless steel can be effectively cleaned by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth.
  • Page 10 Burner Size Nominal Rating Simmer Rating LPG Flow Rate (lh (kW) (kW) Auxiliary 0.45 Semi-Rapid 1.75 Rapid Triple / Wok Total rated gas input : 11.3kW Mains electrical voltage: 230 – 240Vac, 50Hz Total rated electrical consumption: If Your Hob is Not Working 1.

  • Page 11: Mains Electricity Connection

    Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. DOUBLE POLE SWITCHED We recommend that the appliance is FUSE SPUR OUTLET connected by a qualified electrician, who is a member of the N.I.C.E.I.C.

  • Page 12: Gas Supply Requirements

    Gas Supply Requirements IMPORTANT: THIS APPLIANCE SHOULD BE FITTED BY A GAS SAFE REGISTERED FITTER OR OTHER SUITABLY QUALIFIED PERSON. • This installation must comply with the Gas Safety (installation and use) Regulations 1984. • This appliance is category II2H3+ and is designed for use in the UK and Ireland.
  • Page 13 Ventilation All rooms require a window or equivalent (e.g. a door) which can be opened. Some rooms require a permanent vent in addition to a window (see below). This unit must not be used in a room which is less than 5m .

  • Page 14: Natural Gas To Lpg Conversion

    Natural Gas to LPG Conversion This hob can be converted from natural Required: gas to propane operation at a nominal • 7mm AF nut spinner • Replacement injectors inlet pressure of 37mbar, or butane • LPG identity plate operation at a nominal inlet pressure of 28/30mbar.
  • Page 15 LPG to Natural Gas Conversion Required: • 7mm AF nut spinner This hob can be converted from • Replacement injectors propane operation at a nominal • NG identity plate inlet pressure of 37mbar or butane operation at a nominal inlet pressure of 28/30mbar to natural gas at 20mbar.

  • Page 16: Fitting The Hob

    Fitting the Hob Unpacking the hob: Take care not to lose or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 150mm away from any adjacent vertical surfaces, e.g.
  • Page 17 withstanding temperatures 65°C above ambient or greater (typically 80-90°C). • If there is no oven to be built in below the hob it is recommended that, an isolation shelf should be fitted to protect the user from high temperatures. If the hob is to be installed above a working drawer, then a partition should be fitted to protect the contents and user from the heat generated during use.

  • Page 18: How To Install The Hob

    How to Install the Hob Installation Dimensions (mm) MHG201 Overall width Overall depth Worktop cutout width Worktop cutout depth 1. Make the required hole in the worktop. Note that before doing this, check the instructions supplied with any cooker hood to ensure that you will have the required clearance.
  • Page 19 >61.5mm 477mm 557mm 210mm 210mm Fig. 10 Fig. 11 Fig. 12 Fig. 13 19 19...

  • Page 20: Energy Efficiency Information

    Energy Efficiency Information A) Measurement and calculation methods • The gas hob was CE approval according to the Gas Appliance Directives 2009/142/EC. • The energy efficiency of this gas hob was tested and measured according to EN 30-2-1-1998+A1-2003+A2-2005. • The semi-rapid burner and rapid burner were tested separately; the auxiliary burner is not required for test because its nominal heat input is less than 1.16kW.
  • Page 21 The packaging materials of this appliance are recyclable, please make good use of waste materials. Energy Efficiency Information Attribute Symbol Value Units Model identification MHG201 Type of hob Built in Number of gas burners Energy efficiency per gas burner Aux: NA Gas burner SR: 56.27 SR: 56.27...
  • Page 22 NOTES:...
  • Page 23 NOTES: E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice. 23 23...
  • Page 24 Serviced by To contact our Customer Care Department, or for Service, please contact us on the details below. Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu...
