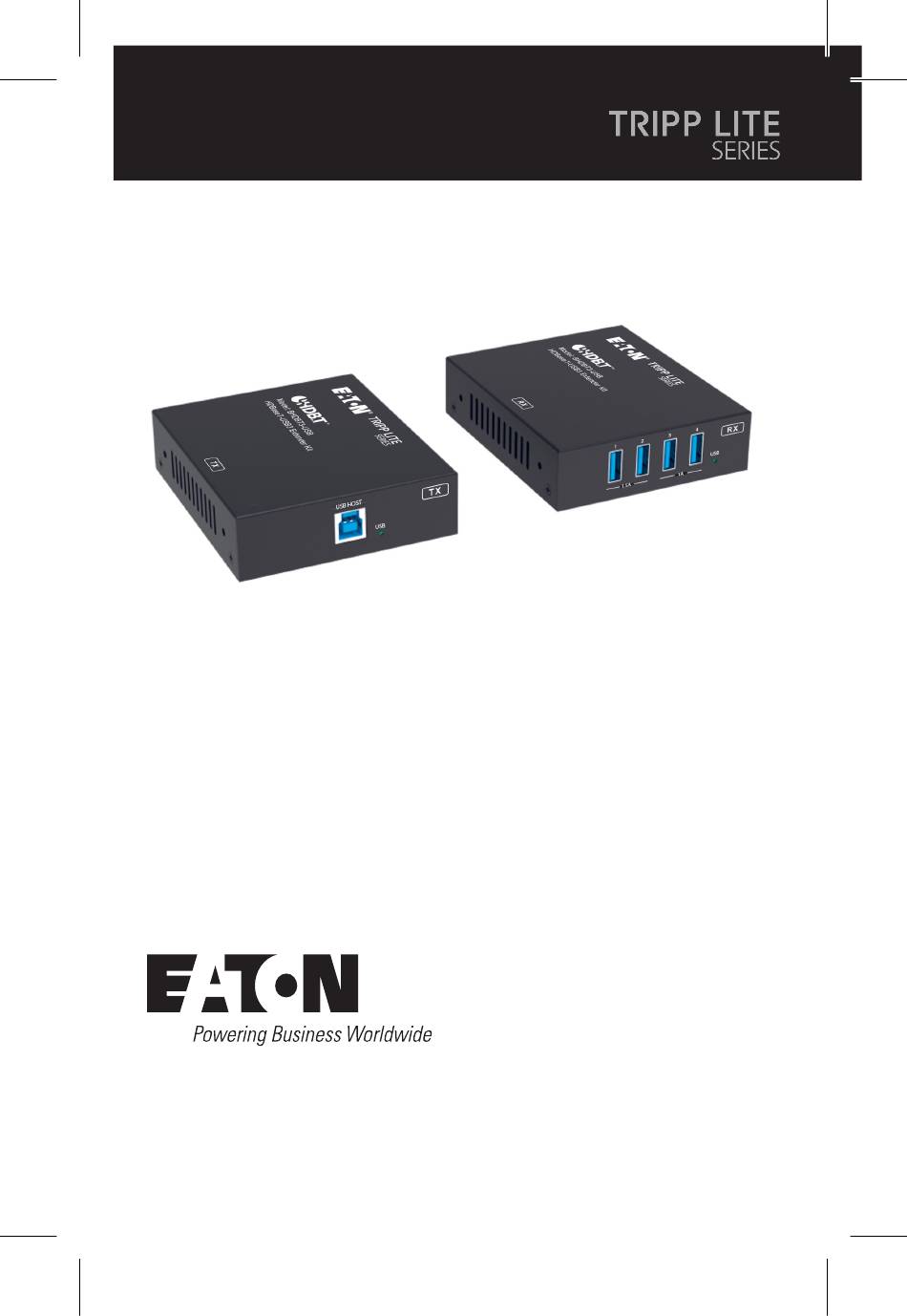

Owner's Manual
HDBaseT-USB3 Extender Kit
Este manual está disponible en español en la página de
Eaton: Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de
Eaton : Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-
Website verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di
Eaton: Tripplite.Eaton.com/support
Model:
BHDBT3-USB
Purchased product
may differ from image.
1
Advertisement
Table of Contents
Related Manuals for Eaton TRIPP LITE BHDBT3-USB
Summary of Contents for Eaton TRIPP LITE BHDBT3-USB
- Page 1 Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton- Website verfügbar: Tripplite.Eaton.com/support Questo manuale è disponibile in italiano sul sito web di Eaton: Tripplite.Eaton.com/support...
-
Page 2: Important Safety Instructions
Introduction The BHDBT3-USB USB 3.2 Extender extends a USB signal up to 328 ft. (100 m) with a single Cat6a cable. The transmitter includes one USB 3.2 Type-B input, one FSYSNC GPIO input and one RS-232 pass-through. The receiver includes four USB 3.2 Type-A outputs, one FSYSNC GPIO output and one RS-232 pass-through. -
Page 3: Package Contents
Direct Interconnection Method Package Contents • USB 3.2 Extender (Transmitter) • USB 3.2 Extender (Receiver) • 24V/2A Locking Power Plug (AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America) • (x2) 3-Pin, 3.5mm Phoenix Connector (Male) •... -
Page 4: Product Overview
Product Overview Transmitter 3 45 6 78 9 USB HOST: Host port, supports USB 3.2. Connects to a PC or host. USB LED: USB signal indicator. ▪ On: USB signal is detected. ▪ Off: USB signal is not detected. HDBT OUT: Connects to the HDBT IN port on receiver with Cat6a cable. - Page 5 Product Overview Receiver 4 567 89 J USB 1/2: Connects to USB devices. Max output power is up to 5V/1.5A. USB 3/4: Connects to USB devices. Max output power is up to 5V/1A. USB LED: USB signal indicator. ▪ On: USB signal is detected. ▪...
-
Page 6: Installation
Installation Transmitter Cat6a Cable Receiver USB Drive Power Supply USB Camera... -
Page 7: Specifications
Specifications Technical USB Protocol USB 3.2 Transmission Rate Up to 5 Gbps Network Bandwidth Transmission 328 ft. (100 m) over Cat6a Distance (F/FTP) cable ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connections Transmitter Input: 1 × USB HOST [USB-B, 9-pin Female] Output: 1 ×... - Page 8 Specifications Mechanical Housing Metal Enclosure Color Black Dimensions Transmitter / Receiver: H x W x D 1 x 3.3 x 4 in. (25.5 x 85 x 100 mm) Weight Transmitter: 0.56 lb. (253 g), Receiver: 0.57 lb. (260 g) Power Supply Input: AC 100~240V 50/60 Hz Output: DC 24V 2A Power...
-
Page 9: Warranty
Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton. com/support/product-returns before sending any equipment back for repair. This warranty does not apply to... - Page 10 The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment. WEEE Compliance Information for Customers and...
- Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 24-06-237 / All trademarks are 93-4AE4_RevA property of their August 2024 respective owners.
