Quick Start Guide

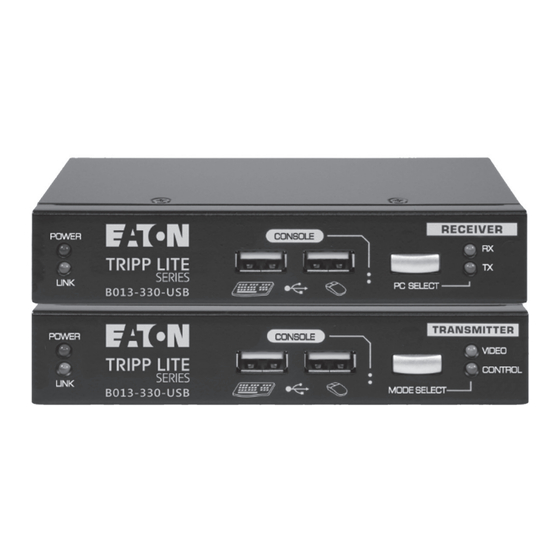

KVM Extender
Cat5 USB
Model:
B013-330-USB
Purchased product
may differ from image.
PRODUCT
REGISTRATION
Register your product today for a
chance to win an ISOBAR
protector in our monthly drawing!
Tripplite.Eaton.com/warranty
®
surge
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE Series

Summary of Contents for Eaton TRIPP LITE Series

  • Page 1 Quick Start Guide KVM Extender Model: B013-330-USB Cat5 USB Purchased product may differ from image. PRODUCT REGISTRATION Register your product today for a chance to win an ISOBAR ® surge protector in our monthly drawing! Tripplite.Eaton.com/warranty...

  • Page 2: Important Safety Instructions

    1. Important Safety Instructions • The device must only be opened by a qualified technician. • Disconnect device from AC mains before service operation! • Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

  • Page 3: Package Contents

    3. Package Contents • Transmitter (TX) Unit x 1 • Receiver (RX) Unit x 1 • USB KVM Combo Cable x 2 • USB-A to USB-B Upgrade cable x1 • Power Adapter (DC 5V) x 2 • Quick Start Guide x 1...

  • Page 4: Front & Rear Panels

    4. Front/Rear Panels The front and back panels are where the various connectors are located on the two pieces of the CAT5 USB KVM Extender Set. Before you connect these two units to any computer, cabling accessories or peripherals, locate the main connectors you are going to encounter when setting up the system.
  • Page 5 4. Front/Rear Panels Transmitter (TX) unit - Rear Panel Power jack - DC 5V, center-positive CAT5 Extension Port - RJ45, connects to the receiver unit via a CAT.X UTP cable, maximum 328 ft. (100 m) COMPUTER port - HDB-15 (VGA + USB), connects to the TX-site computer using an included 3-in-1 KVM combo cable UPGRADE port - USB Type-B, dedicated for firmware upgrades Transmitter CONSOLE video port - HDB-15 (VGA), connects to TX...
  • Page 6 4. Front/Rear Panels RX LED Indicator - Illuminates when the RX console is switched to connect to the RX PC TX LED Indicator - Illuminates when the RX console is switched to connect to the TX PC Receiver (RX) unit - Rear Panel Power jack - DC 5V, center-positive CAT5 Extension Port - RJ45, connects to the transmitter unit via a CAT.X UTP cable, maximum 328 ft.

  • Page 7: Installation

    5. Installation Before you install the TX/RX units of the CAT5 USB KVM Extender B13-330-USB, ensure the following is ready: 1. The computer for extension should be one with USB interfaces. 2. Check the display mode of the computer to be within 1920 x 1200 resolution and that the refresh rate is set at 30 or 60 Hz.

  • Page 8: Plan The Layout Path And Deploy The Utp Cable For Extension

    5. Installation Plan the layout path and deploy the UTP cable for extension 1. Plan the path through which the CAT5 cable will be deployed across the distance between the transmitter and the receiver. You should choose the layout path not only based on shortest length consideration, but also on least electromagnetic interference.
  • Page 9 5. Installation 12. Adjust the video parameters to optimize the video display output of the RX unit (refer to OSD Menu\Video Setting Page section for details). 13. Connect with the USB KVM combo cable (included) between the receiver (computer port ) and the VGA and USB ports of the RX B013-330-USB CAT5 USB KVM Extender Configuration Diagram...
  • Page 10 5. Installation Remote-site Console Remote-site Monitor Remote-site Keyboard/Mouse to Local-site Console Remote-site KVM port VGA-enabled PC (RX site) (RX-site PC) PS/2 Combo Video Cable Control Local-site KVM port (TX-site PC) Video Control USB to PS/2 Adaptor...

  • Page 11: Setup Main Page

    6. Operation On the receiver unit, the OSD (on-screen display) Menu control is available to facilitate more intuitive operations. Users can configure various settings in the RX unit's OSD Menu: OSD Menu Following keys are used to operate the OSD Menu: Esc: Exit the current page.

  • Page 12: System Information Page

    6. Operation Setup Main Page System Information Page Press the [F1] key to view the System Information Page. System Information Page...

  • Page 13: Video Setting Page

    6. Operation Video Setting Page On this page, you can configure various video parameters such as Brightness and Sharpness to optimize the video display result on the monitor of the RX unit located up to 328 ft. (100 m) away from the TX unit, if neccessary.
  • Page 14 6. Operation To update the EDID data manually, select the Read Monitor option and then press the [Enter] key. The updated monitor EDID data of TX/RX units will be listed as below. The inconsistent EDID issue of using different model monitors RX Monitor RX Unit...
  • Page 15 6. Operation Password Setting Option/Page Disable/Enable the Password Protection feature. After you manually logout or auto logout with the set timeout, you will be requested to input a password to access the receiver console again. Note: Keep your password secure. Failure to do so may require you to contact your local dealer for technical support.
  • Page 16 6. Operation Configure the OSD timeout value, starting at 20 seconds, with an increment of 5, right up to 60 seconds (0 = Disable). Off Shared Console Option: [0 (Default), 3, 5, 10, 20, 30] Configure the deadlock timeout value for the Console Control (0 = Disable).
  • Page 17 6. Operation Select Receiver Console Connection with the Remote- site PC (Receiver-End) or the Local-Site PC (Transmitter-End) Other than using the RX unit's panel button to select the receiver console connection with the local-site TX PC or the remote-site RX PC, use the following RX unit exclusive hotkey: [Scroll Lock], [Scroll Lock], Using either...
  • Page 18 6. Operation Optimize the Video Display Result on the Receiver Console After transmitting the VGA signals over long distances through a twisted-pair CAT.X cable from the TX unit to the RX unit, it may be necessary to properly adjust some video parameters such as brightness and sharpness, to compensate for signal degradation and optimize the signal quality of the video input at RX unit's CAT.X extension port.

  • Page 19: Troubleshooting

    (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at our sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 20 Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
