Inel PIL-19PMT Original Instructions

Operating instructions for
The remote control is made in two versions:
•
PIL-19PMT - 19-channel remote control,
•
PIL-99PMT - 99-channel remote control.

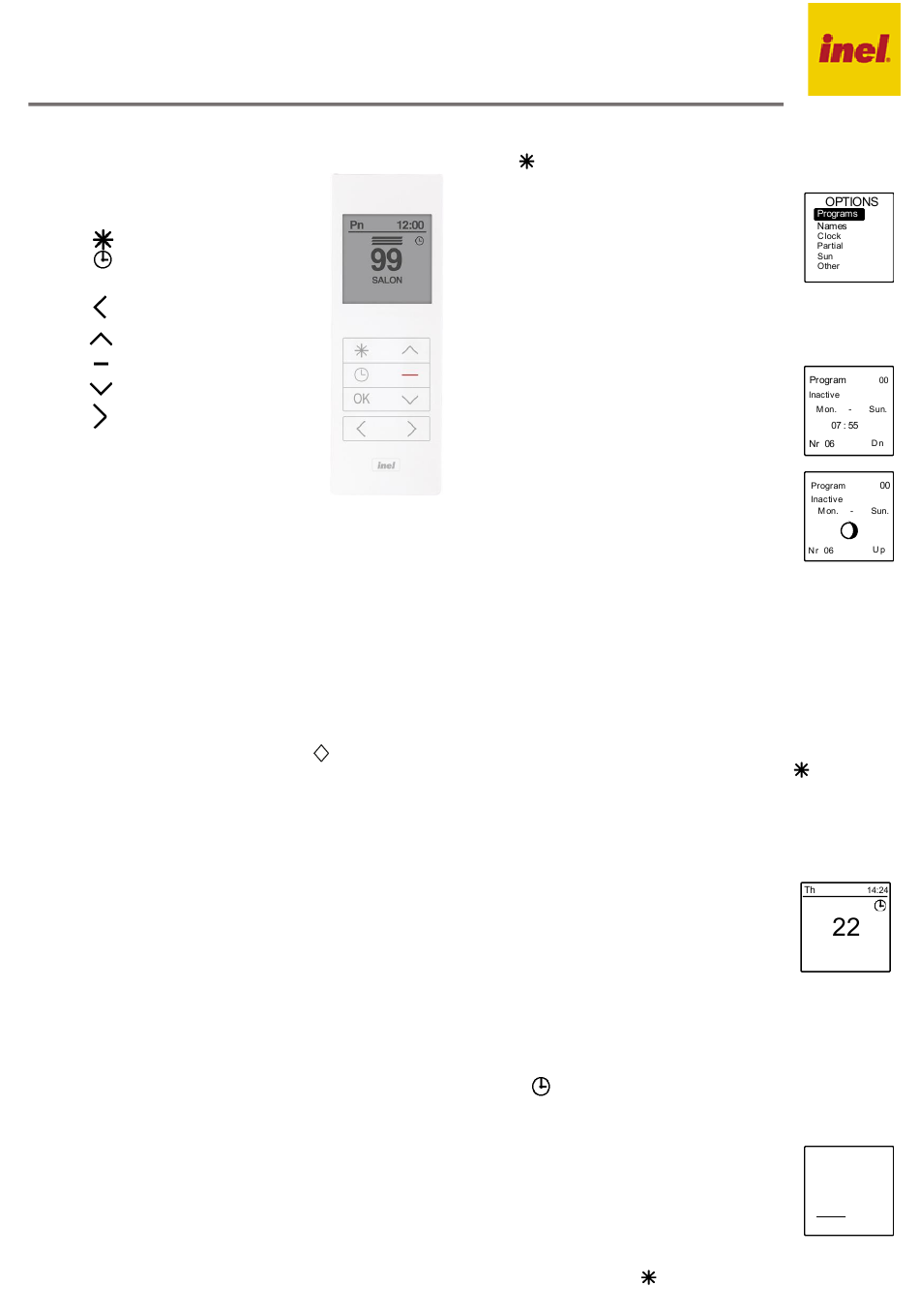

The remote control is equipped with eight keys:
✓ Key "binds"
✓ Key "clock"
✓ Key OK
✓ Key "left"
✓ Key " up"
✓ Key "stop"
✓ Key "down"
✓ Key "right"
Registering of remote control
Control of any channel from the PIL-19/99PMT remote control is
possible once this channel has been registered to the respective drive or
.
controller
In our devices, we distinguish between the following ways of
entering the programming option:
1. First programming after switching on the supply voltage
(radio drive, ST-01RL),
2. First programming of the ST-01R controller,
3. Programming using a previously programmed remote control
(radio drive, ST-01RL, ST-01R).
First programming for radio drives and ST-01RL controllers:
- connect a 230 VAC power supply to the drive/controller,
- within 10 seconds of switching on the power supply, briefly press
simultaneously the ▲ "up" and ▼ "down" keys of the remote
control (the display will briefly show the sign
- the engine will make an up and down movement,
- within the next 10
▲ "up" on the selected remote control channel,
- A short up and down movement will confirm that the registration is
correct.
NOTE The procedure will erase from the drive's memory all
remote controls that were previously registered.
First programming of the ST-01R controller:
- press programming button S1 - the LED will flash and remain on
continuously,
- then briefly press the ▲ "up" key of the remote control, - the
controller shall signal the registration of the remote control by
blinking green and red LEDs,
Once you have a registered remote control
Register further remote controls without switching off the power
supply. Using the previously registered remote control, enter the
drive/controller into programming mode.
- briefly press simultaneously ▲ "up" and ▼ "down" of the
registered remote control channel,
- the motor makes an up and down movement, followed by a series
of short up and down movements equal to the number of
registered remote controls and the LED on the control unit lights
up green
- within the next 10 seconds, briefly press the ▲ "up" key of the
new channel or the new remote control
- the motor makes a series of short up and down movements
confirming the registration of the next channel and the LED on
the controller goes out.
Original instructions EN
Models:
PIL-19PMT, PIL-99PMT
),
seconds briefly press the
type remote controls
PIL
Remote control menu
To enter the remote control menu, press the OK key; to exit the menu,
press .
The menu consists of the following options:
•
Programmes
•
Names
•
Clock
•
Partial Roll-down setting of the roller
shutter (
to be executed in time programmes)
•
Sun
•
Other
Programmes
In the Programmes option, you set and change
programmes for automatically performing the actions
of opening, closing, unsealing and stopping specific
roller shutters or groups of roller shutters at a specific
time and on a specific day of the week.
There are 32 programmes numbered from 00 to 31.
The programmes can be set as "Active" or as
"Inactive". The days of the week on which the
programme is to run are set by specifying "day from"
and "day to" inclusive. For example, "Mon - Mon"
means Monday only, "Sat - Sun" means Saturday and
Sunday, and "Mon - Sun" means all days of the week.
The time at which the programme is to operate is specified by
specifying hour and minutes or sun (east) and moon (west). Minutes
can only be specified as multiples of 5. To fully define the programme,
you still need to specify the channel number from 00 to 19 (PIL-
19PMT) or up to 99 (PIL-99PMT) and the action to be performed:
opening ("Open"), closing ("Close"), unsealing ("Unseal") or stopping
("Stop"). The setting shall be performed with the use of "▲" and "▼"
keys. The value indicated by the cursor (underline) shall be changed.
The cursor position shall be changed with the use of "◄" and "►" keys.
Pressing the "stop" key shall move the cursor to the program number.
Changing the program number saves the changes made in the current
program. Also pressing the OK key saves the changes in the programme
while exiting the programming mode. Pressing the
programming mode without memorising the changes made to the last
key
displayed programme. After completing the programmed task, the
information with the number of the last executed programme remains
on the display.
NOTE
The times of the set programmes cannot be
identical (the time of opening/closing two or more
roller shutters cannot be the same). If you want to
set the same time for several roller shutters, you
must create a group of roller shutters (by
registering one remote control channel for several
roller shutters).
NOTE
Timed programmes are only executed when the clock icon is
displayed in the top right corner.
To activate the
button.
Name
s
In the "Names" option, text (capital letters and
numbers) can be assigned to each channel number, up
to a maximum of 16 characters in two lines of 8
characters each. The underline (cursor) indicates the
position, which can be changed with the "▲" and
"▼" keys. The keys "◄" and "►" are used to change
the position of the cursor. Pressing the "stop" key
deletes the character at the given position. We terminate editing by
pressing the OK key or the
Time programmes
Naming channel numbers
Date and time settings
Setting the sundial
language and display brightness settings
time programmes, briefly
key.
key exits the
press the
