Quick Installation Guide

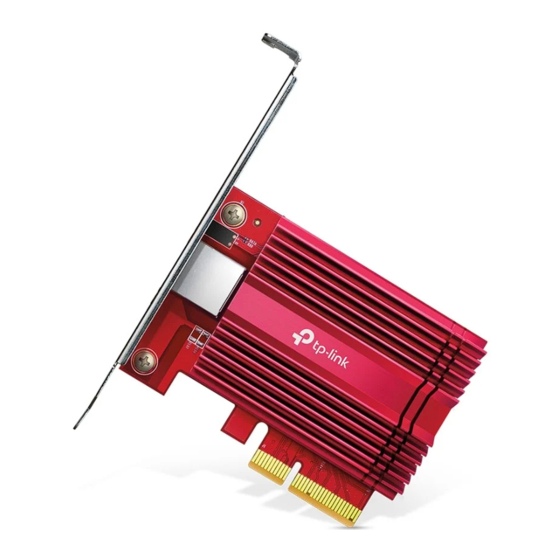

10 Gigabit PCI Express
Network Adapter
Images are for demonstration only.
©2024 TP-Link
7106511500 REV2.0.0
Hardware Connection
a. Turn off your computer, unplug the power
cable and remove the case panel.
b. Locate an available PCI-E slot (X4, X8,
or X16) and carefully insert the adapter.
Note:
If the bracket is not suitable for your computer, detach it
from the adapter's board and replace it with the low-profile
bracket.
c. Replace the case panel, plug in the
power cable and turn on your computer.
Then connect the adapter to the
front-end router using an Ethernet cable.
Flip the page over to continue...
