- Page 1 User Guide AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter Archer TX20E REV1.0.0 1910013263...
-
Page 2: Table Of Contents
Contents About This Guide Chapter 1 Get to Know About Your Adapter Chapter 2 Connect to a Computer Chapter 3 Use Your Adapter 3. 1. Install Drivers............08 3. -
Page 3: About This Guide
APs to also support the corresponding feature. More Info • The latest driver can be found at Download Center https://www.tp-link.com/support. • Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. -
Page 4: Chapter 1 Get To Know About Your Adapter

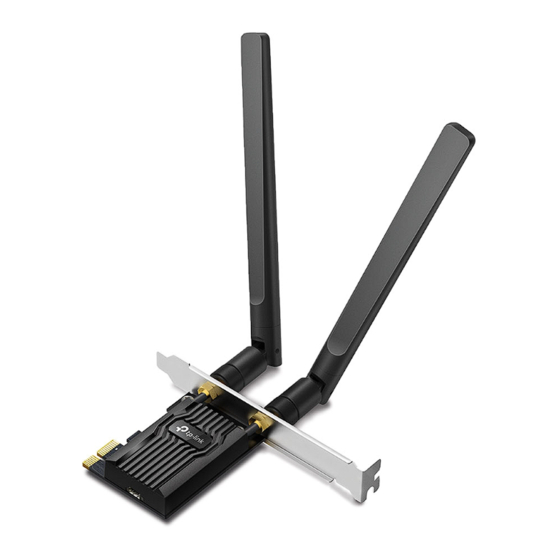

Chapter Get to Know About Your Adapter This chapter introduces the detail of the adapter. - Page 5 Chapter 1 Get to Know about Your Adapter Archer TX20E equips your PC with more advanced Bluetooth 5.2 technology that runs faster connection speeds and farther range compared with older versions, ensuring a strong and stable wireless connection between your PC and Bluetooth devices.
-
Page 6: Chapter 2 Connect To A Computer
Chapter Connect to a Computer This chapter introduces how to connect the adapter to your computer. Please note that images are for demonstration only. - Page 7 Chapter 2 Connect to a Computer Follow the steps below to insert the adapter into your computer: Turn off your computer, unplug the power cable then remove the case panel. Connect the provided Bluetooth USB cable to the adapter. Adapter Bluetooth USB cable Locate an available PCIE X1 slot t ( X1, X4 or X16) and carefully insert the adapter.
- Page 8 Chapter 2 Connect to a Computer Locate an available F_USB connector and carefully plug the Bluetooth USB cable into it. Note: If the Bluetooth USB cable is not correctly connected to the motherboard, Bluetooth function won’t work even after driver installation. Connect the antenna(s) to the adapter.
-
Page 9: Chapter 3 Use Your Adapter
Chapter Use Your Adapter This chapter introduces how to install or uninstall your adapter’s Wi-Fi and Bluetooth drivers, connect to a wireless network, and pair with a Bluetooth device on a Windows system. This chapter includes the following sections: • Install Drivers •... - Page 10 Autorun exe. Note: You can also check the new release and download the driver at https://www.tp-link.com/support/download/ Install the Wi-Fi and Bluetooth drivers. Note: · DO NOT install the Bluetooth and Wi-Fi drivers simultaneously. If one driver is being installed, please wait until it is finished, then install the other driver.
- Page 11 Chapter 3 Use Your Adapter TP-Link_XXXX Secured Connect Network settings Pair with Bluetooth Devices Right click the (Bluetooth) icon on the taskbar. Note: If it’s not displayed, refer to Troubleshooting-T4. Select Add a Bluetooth Device to scan for available devices. Select your Bluetooth device from the list and follow the on-screen instructions to complete pairing.
-
Page 12: Appendix: Troubleshooting
• Make sure you meet the system requirements for the adapter. • Make sure you use the latest driver for your specific adapter. The latest drivers can be found at the product’s Support page at https://www.tp-link.com. T2 How to check if I have installed the drivers successfully or not? Check your taskbar if there are Wi-Fi and Bluetooth icons. - Page 13 X is the hardware version of the adapter. For more detailed instructions: • Can’t find the hardware version of the adapter: https://www.tp-link.com/faq-46.html • Can’t find or connect to the wireless networks: https://www.tp-link.com/faq-2253.html • Can’t install the driver:...
- Page 14 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
- Page 15 FCC STATEMENT Product Name: AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter Model Number: Archer TX20E Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 16 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 17 5250MHz—5350MHz(23dBm) 5470MHz—5725MHz(23dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/ EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce...
- Page 18 (UAS) are not permitted. UK(NI) UK declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/...
- Page 19 This radio transmitter (IC: 1000M-AX200NG/ Model: Archer TX50E) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list below, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
- Page 20 P.I.R.E spécifiée pour l’exploitation point à point et non point à point, selon le cas. Les produits utilisant la technique d’atténuation DFS (sélection dynamique des fréquences) sur les bandes 5250- 5350 MHz, 5470-5600MHz et 5650-5725MHz. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
- Page 21 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋 開口。 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 限用物質含有情況標示聲明書 限用物質及其化學符號 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 產品元件名稱 CrVI PBDE ○ ○ ○ ○ ○ ○ 備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值 Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.
- Page 22 RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
